BLANCO

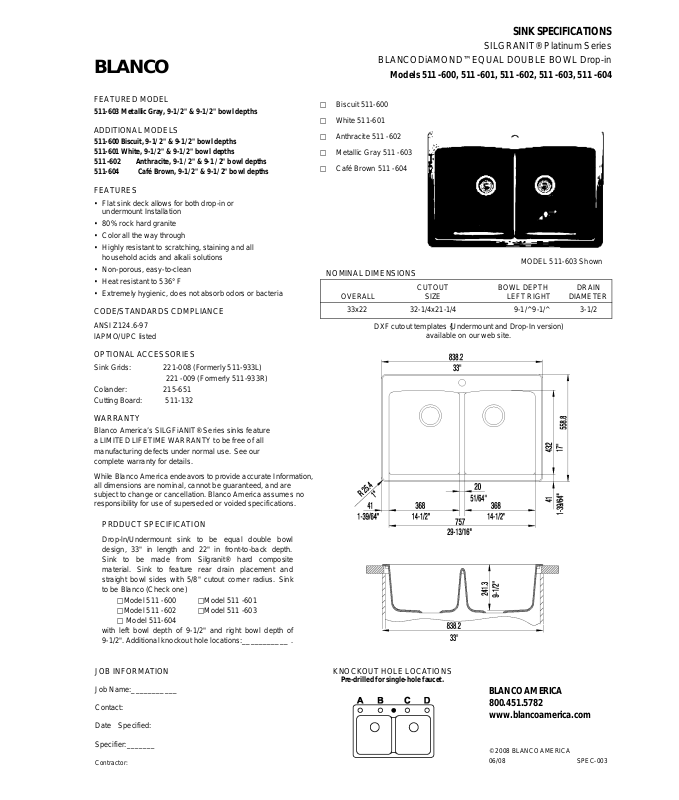

SINK SPECIFICATIONS

SILGRANIT® Platinum Series

BLANCODiAMOND™ EQUAL DOUBLE BOWL Drop-in

Models 511 -600, 511 -601, 511 -602, 511 -603, 511 -604

FEATURED MODEL

511-603 Metallic Gray, 9-1/2" & 9-1/2" bowl depths

ADDITIONAL MODELS

511-600 Biscuit, 9-1/2" & 9-1/2" bowl depths
511-601 White, 9-1/2" & 9-1/2" bowl depths
511 -602 Anthracite, 9-1 /2" & 9-1 /2" bowl depths
511-604 Café Brown, 9-1/2" & 9-1/2" bowl depths

FEATURES

• Flat sink deck allows for both drop-in or
undermount Installation

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all
household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors or bacteria

CODE/STANDARDS CDMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grids: 221-008 (Formerly 511-933L)

221 -009 (Formerly 511-933R)
Colander: 215-651
Cutting Board: 511-132

□ Biscuit 511-600
□ White 511-601
□ Anthracite 511 -602
□ Metallic Gray 511 -603
□ Café Brown 511 -604

MODEL 511-603 Shown

NOMINAL DIMENSIONS

OVERALL SIZE LEFT RIGHT DIAMETER

33x22 32-1/4x21-1/4

DXF cutout templates {Undermount and Drop-In version)

CUTOUT BOWL DEPTH DRAIN

9-1/^ 9-1/^

available on our web site.

3-1/2

WARRANTY

Blanco America’s SILGFiANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.

While Blanco America endeavors to provide accurate Information,
all dimensions are nominal, cannot be guaranteed, and are
subject to change or cancellation. Blanco America assumes no
responsibility for use of superseded or voided specifications.

PRDDUCT SPECIFICATION

Drop-ln/Undermount sink to be equal double bowl
design, 33" in length and 22" in front-to-back depth.
Sink to be made from Silgranit® hard composite
material. Sink to feature rear drain placement and
straight bowl sides with 5/8" cutout corner radius. Sink
to be Blanco (Check one)

□ Model 511 -600 □ Model 511 -601
□ Model 511 -602 □ Model 511 -603

□ Model 511-604
with left bowl depth of 9-1/2" and right bowl depth of
9-1/2". Additional knockout hole locations:

___________

.

JOB INFORMATION

Job Name:

Contact:
Date Specified:

___________

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

Specifier:_______

Contractor:

© 2008 BLANCO AMERICA
06/08 SPEC-003
