Blanco 510-871 User Manual

BLANCO

FEATURED MODEL

510-871 8" bowl depth

ADDITIONAL MODELS

514-476 9" bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Straight bowl sides with 5/8” cutout corner radius

• Rear drain placement

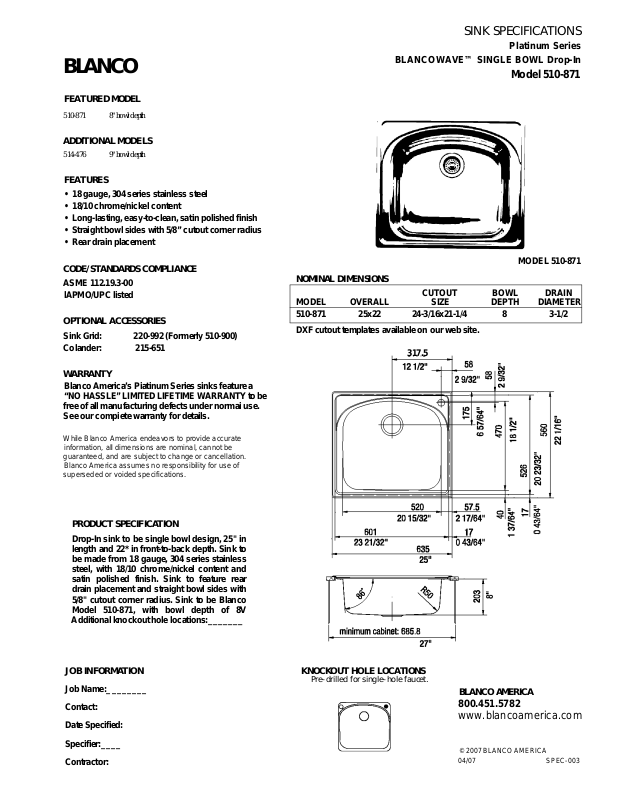

SINK SPECIFICATIONS

Platinum Series

BLANCOWAVE™ SINGLE BOWL Drop-In

Model 510-871

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 220-992 (Formerly 510-900)
Colander: 215-651

WARRANTY

Blanco America’s Piatinum Series sinks feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be

free of all manufacturing defects under normai use.
See our compiete warranty for details.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be

guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of

superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-In sink to be single bowl design, 25" in
length and 22* in front-to-back depth. Sink to
be made from 18 gauge, 304 series stainless
steel, with 18/10 chrome/nickel content and
satin polished finish. Sink to feature rear
drain placement and straight bowl sides with
5/8" cutout corner radius. Sink to be Blanco
Model 510-871, with bowl depth of 8V
Additional knockout hole locations:

_______

MODEL 510-871

NOMINAL DIMENSIONS

CUTOUT BOWL DRAIN

MODEL OVERALL SIZE DEPTH DIAMETER
510-871 25x22 24-3/16x21-1/4 8 3-1/2

DXF cutout templates available on our web site.

317.5

JOB INFORMATION

Job Name:
Contact:
Date Specified:
Specifier:
Contractor:

________

____

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2007 BLANCO AMERICA
04/07 SPEC-003
