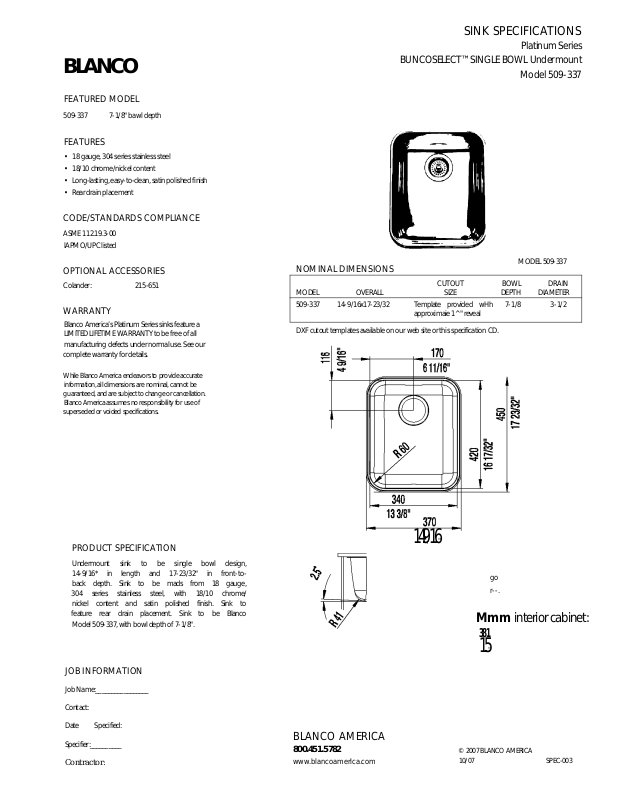

Blanco 509-337 User Manual
BLANCO
FEATURED MODEL
509-337 7-1/8" bawl depth
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Long-lasting, easy-to-clean, satin polished finish
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Colander: 215-651
WARRANTY
Blanco America’s Platinum Series sinks feature a
LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
SINK SPECIFICATIONS
Platinum Series
BUNCOSELECT™ SINGLE BOWL Undermount
Model 509-337
NOMINAL DIMENSIONS
CUTOUT BOWL DRAIN
MODEL OVERALL SIZE DEPTH DIAMETER
509-337 14-9/16x17-23/32 Template provided wHh
approximaie 1^" reveal
DXF cutout templates available on our web site or this specification CD.
MODEL 509-337
7-1/8 3-1/2
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount sink to be single bowl design,
14-9/16* in length and 17-23/32" in front-toback depth. Sink to be mads from 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and satin polished finish. Sink to
feature rear drain placement. Sink to be Blanco
Model 509-337, with bowl depth of 7-1/8".
149/16
"
go
r--.
Mmm interior cabinet:
38 1
15
"
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
_________________
__________
BLANCO AMERICA
800.451.5782
www.blancoamerlca.com
© 2007 BLANCO AMERICA
10/07 SPEC-003
