BLANCO

FEATURED MODEL

506-528 8" bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/10 chrome/nickel content

• Long-lasting, easy-to-clean, satin polished finish

• Straight bowl sides with 5/8' cutout corner radius

• Rear drain placement

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00

lAPMO/UPC listed

OPTIONAL ACCESSORIES

Sink Grid: 506-910
Colander: 215-651
Crockery Basket: 507-829

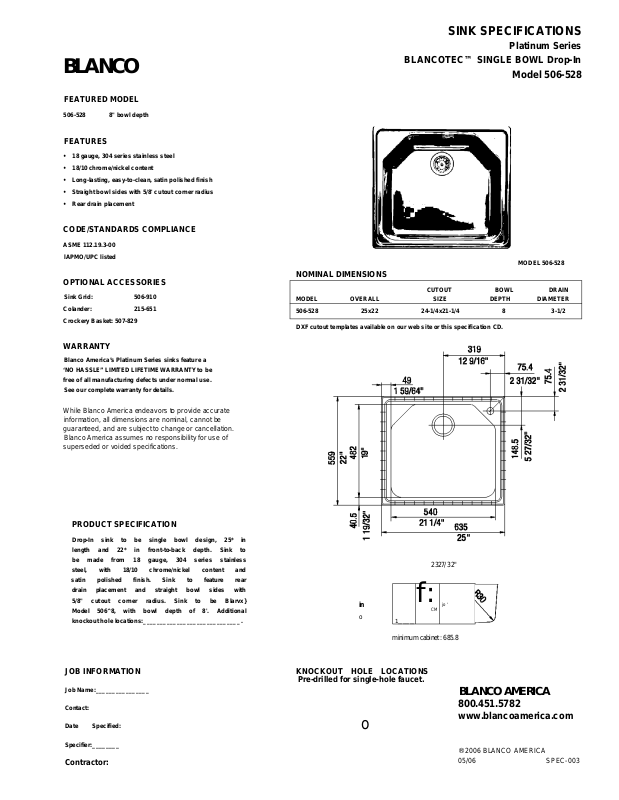

SINK SPECIFICATIONS

Platinum Series

BLANCOTEC™ SINGLE BOWL Drop-In

Model 506-528

MODEL 506-528

NOMINAL DIMENSIONS

CUTOUT BOWL DRAIN

MODEL OVERALL SIZE DEPTH DIAMETER
506-528 25x22 24-1/4x21-1/4 8 3-1/2

DXF cutout templates available on our web site or this specification CD.

WARRANTY

Blanco America’s Platinum Series sinks feature a
‘NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.

See our complete warranty for details.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-In sink to be single bowl design, 25* in
length and 22* in front-to-back depth. Sink to
be made from 18 gauge, 304 series stainless
steel, with 18/10 chrome/nickel content and
satin polished finish. Sink to feature rear
drain placement and straight bowl sides with
5/8" cutout corner radius. Sink to be Blarvx}
Model 506^8, with bowl depth of 8'. Additional
knockout hole locations:_____________________________.

2327/32"

f:

in

o

1

___ ____

minimum cabinet: 685.8

jo '

CM

JOB INFORMATION

Job Name:

Contact:

Date Specified:

Specifier:

________________

________

Contractor:

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

o

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

® 2006 BLANCO AMERICA
05/06 SPEC-003
