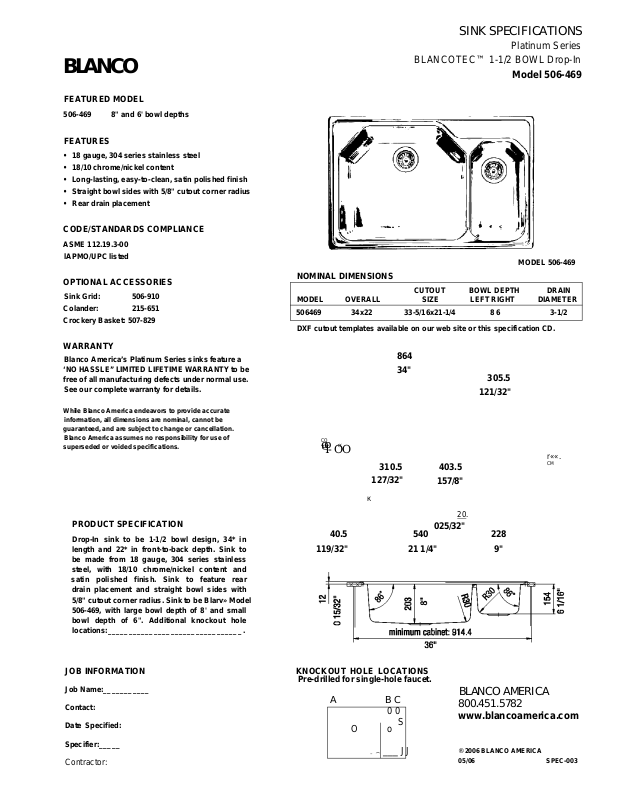

Blanco 506-469 User Manual
BLANCO
FEATURED MODEL
506-469 8" and 6' bowl depths
FEATURES
• 18 gauge, 304 series stainless steel
• 18/10 chrome/nickel content
• Long-lasting, easy-to-clean, satin polished finish
• Straight bowl sides with 5/8" cutout corner radius
• Rear drain placement
CODE/STANDARDS COMPLIANCE
ASME 112.19.3-00
lAPMO/UPC listed
OPTIONAL ACCESSORIES
Sink Grid: 506-910
Colander: 215-651
Crockery Basket: 507-829
SINK SPECIFICATIONS
Platinum Series
BLANCOTEC™ 1-1/2 BOWL Drop-In
Model 506-469
MODEL 506-469
NOMINAL DIMENSIONS
CUTOUT BOWL DEPTH DRAIN
MODEL OVERALL SIZE LEFT RIGHT DIAMETER
506469 34x22 33-5/16x21-1/4 8 6 3-1/2
DXF cutout templates available on our web site or this specification CD.
WARRANTY
Blanco America’s Platinum Series sinks feature a
‘NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Drop-In sink to be 1-1/2 bowl design, 34* in
length and 22* in front-to-back depth. Sink to
be made from 18 gauge, 304 series stainless
steel, with 18/10 chrome/nickel content and
satin polished finish. Sink to feature rear
drain placement and straight bowl sides with
5/8" cutout corner radius. Sink to be Blarv» Model
506-469, with large bowl depth of 8' and small
bowl depth of 6". Additional knockout hole
locations:________________________________.
CO
00
«
Ч- OO
40.5
119/32"
310.5
127/32"
к
864
34"
540
21 1/4"
403.5
157/8"
20.
025/32"
305.5
121/32"
228
9"
r««.
CM
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
___________
_____
Contractor:
KNOCKOUT HOLE LOCATIONS
Pre-drilled for single-hole faucet.
A BC
0 0
О о
S
___
- ^
JJ
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
® 2006 BLANCO AMERICA
05/06 SPEC-003
