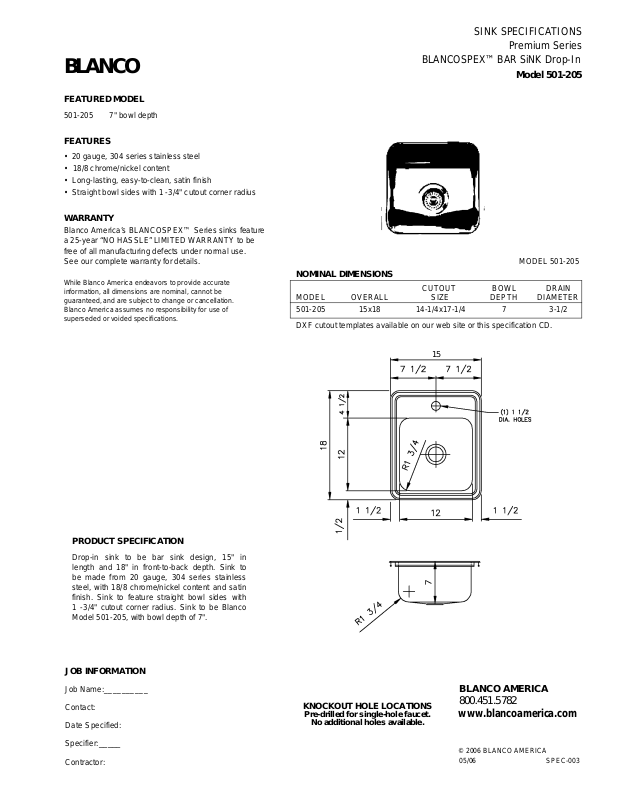

Blanco 501-205 User Manual

BLANCO

FEATURED MODEL

501-205 7" bowl depth

FEATURES

• 20 gauge, 304 series stainless steel

• 18/8 chrome/nickel content

• Long-lasting, easy-to-clean, satin finish

• Straight bowl sides with 1 -3/4" cutout corner radius

WARRANTY

Blanco America’s BLANCOSPEX™ Series sinks feature
a 25-year “NO HASSLE” LIMITED WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

SINK SPECIFICATIONS

Premium Series

BLANCOSPEX™ BAR SiNK Drop-In

Model 501-205

MODEL 501-205

NOMINAL DIMENSIONS

MODEL OVERALL SIZE DEPTH DIAMETER
501-205 15x18

DXF cutout templates available on our web site or this specification CD.

CUTOUT BOWL DRAIN

14-1/4x17-1/4 7 3-1/2

PRODUCT SPECIFICATION

Drop-in sink to be bar sink design, 15" in
length and 18" in front-to-back depth. Sink to
be made from 20 gauge, 304 series stainless
steel, with 18/8 chrome/nickel content and satin
finish. Sink to feature straight bowl sides with
1 -3/4" cutout corner radius. Sink to be Blanco
Model 501-205, with bowl depth of 7".

15

JOB INFORMATION

Job Name:
Contact:
Date Specified:
Specifier:
Contractor:

__________

_____

KNOCKOUT HOLE LOCATIONS

Pre-drilled for single-hole faucet.

No additional holes available.

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2006 BLANCO AMERICA
05/06 SPEC-003
