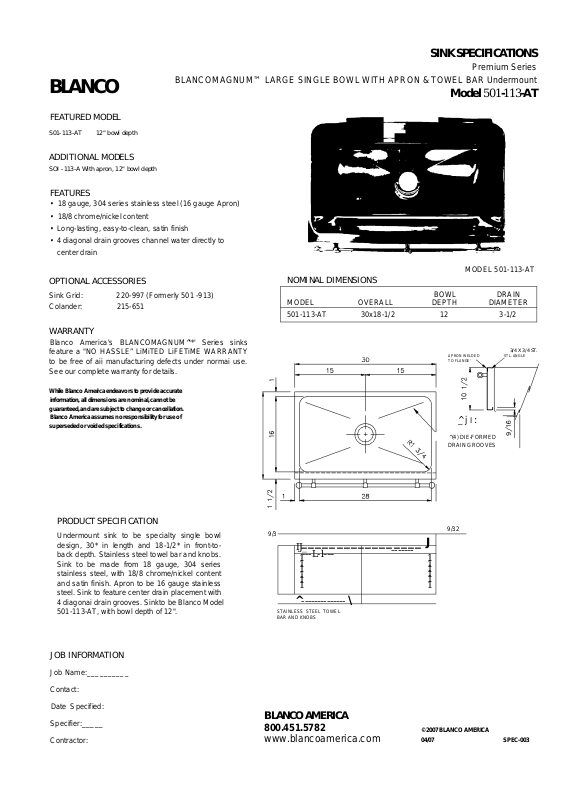

Blanco 501-113-AT User Manual
BLANCOMAGNUM™ LARGE SINGLE BOWL WITH APRON & TOWEL BAR Undermount
BLANCO
FEATURED MODEL
S01-113-AT 12" bowl depth
ADDITIONAL MODELS
SOI -113-A With apron, 12" bowl depth
FEATURES
• 18 gauge, 304 series stainless steel (16 gauge Apron)
• 18/8 chrome/nickel content
• Long-lasting, easy-to-clean, satin finish
• 4 diagonal drain grooves channel water directly to
center drain
OPTIONAL ACCESSORIES
Sink Grid: 220-997 (Formerly 501 -913)
Colander: 215-651
SINK SPECIFICATIONS
Premium Series
Model 501-113-AT
MODEL 501-113-AT
NOMINAL DIMENSIONS
MODEL OVERALL
501-113-AT 30x18-1/2 12 3-1/2
BOWL
DEPTH
DRAIN
DIAMETER
WARRANTY
Blanco America's BLANCOMAGNUM^'*' Series sinks
feature a "NO HASSLE” LiMiTED LiFETiME WARRANTY
to be free of aii manufacturing defects under normai use.
See our complete warranty for details.
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Undermount sink to be specialty single bowl
design, 30* in length and 18-1/2* in front-toback depth. Stainless steel towel bar and knobs.
Sink to be made from 18 gauge, 304 series
stainless steel, with 18/8 chrome/nickel content
and satin finish. Apron to be 16 gauge stainless
steel. Sink to feature center drain placement with
4 diagonai drain grooves. Sinkto be Blanco Model
501-113-AT, with bowl depth of 12".
9/3
_________________
IJ_
---
L-l
1
1
1
1
1
1
^
--------------
STAINLESS STEEL TOWEL
BAR AND KNOBS
---
APRON WELDED STL. ANGLE
TO FLANGE'
3/4 X 3/4 ST.
^ j l:
^(4) DIE-FORMED
DRAIN GROOVES
9/32
J
------1
1
1
1
1
1
\
JOB INFORMATION
Job Name:__________
Contact:
Date Specified:
Specifier:
Contractor:
_____
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2007 BLANCO AMERICA
04/07 SPEC-003
