Blanco 501-113-8 User Manual

BLANCO

FEATURED MODEL

SOI-113-8 8” bowl depth

ADDITIONAL MODELS

501 -113-10 10-1/2” bowl depth
501-113-12 12” bowl depth

FEATURES

• 18 gauge, 304 series stainless steel

• 18/8 chrome/nickel content

• Long-lasting, easy-to-clean, satin finish

• 4 diagonai drain grooves channei water directly to

center drain

OPTIONAL ACCESSORIES

Sink Grid: 220-997 (Formerly 501 -913)
Colander: 215-651

WARRANTY

Blanco America’s BLANCOMAGNUMt** Series sinks
feature a “NO HASSLE” LIMITED UFETIME WARRANTY
to be free of all manufacturing defects under normal use.
See our complete warranty for details.

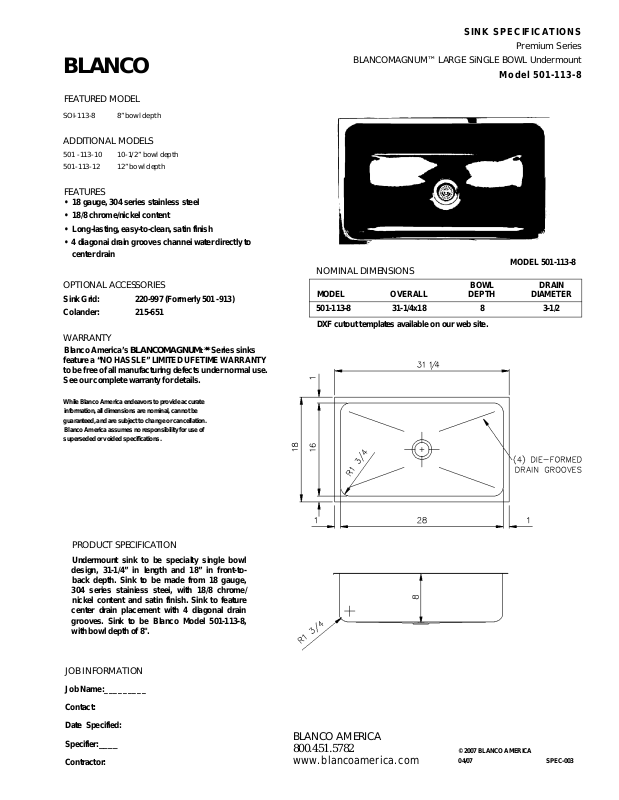

SINK SPECIFICATIONS

Premium Series

BLANCOMAGNUM™ LARGE SiNGLE BOWL Undermount

Model 501-113-8

MODEL 501-113-8

NOMINAL DIMENSIONS

BOWL DRAIN

MODEL OVERALL DEPTH DIAMETER
501-113-8 31-1/4x18 8 3-1/2

DXF cutout templates available on our web site.

While Blanco America endeavors to provide accurate

information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.

Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Undermount sink to be specialty single bowl
design, 31-1/4” in length and 18” in front-to­back depth. Sink to be made from 18 gauge,
304 series stainiess steei, with 18/8 chrome/
nickel content and satin finish. Sink to feature
center drain placement with 4 diagonal drain
grooves. Sink to be Blanco Model 501-113-8,
with bowl depth of 8".

JOB INFORMATION

Job Name:

_________

Contact:
Date Specified:
Specifier:
Contractor:

__ _ _

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2007 BLANCO AMERICA
04/07 SPEC-003
