BLANCO
FEATURED MODEL
SOI -112 7-1/2", 6" & 7-1/2" bowl depths
FEATURES
• 20 gauge, 304 series stainless steel
• 18/8 chrome/nickel content
• Long-lasting, easy-to-clean, satin finish
• Rear drain placement in two large bowls
• Straight bowl sides with 1-1/2' cutout corner radius
OPTIONAL ACCESSORIES
Sink Grid: 221 -034 (Formerly 501 -915)
Colander: 215-651
WARRANTY
Blanco America’s BLANCOSPEX^'*' Series sinks feature
a 25-year “NO HASSLE” LIMITED WARRANTY to be
free of all manufacturing defects under normai use.
See our complete warranty for details.

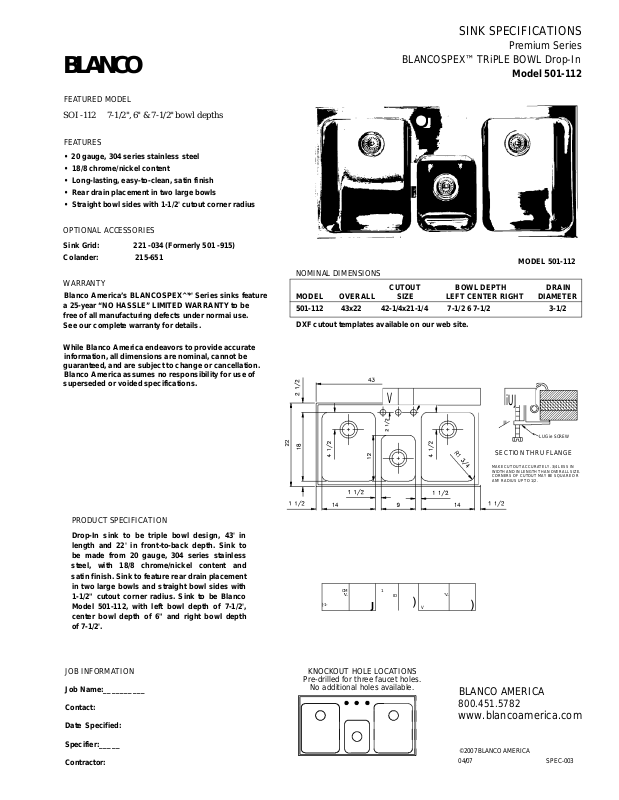

SINK SPECIFICATIONS
Premium Series
BLANCOSPEX™ TRiPLE BOWL Drop-In
Model 501-112
MODEL 501-112
NOMINAL DIMENSIONS
MODEL OVERALL
501-112 43x22 42-1/4x21-1/4 7-1/2 6 7-1/2 3-1/2
DXF cutout templates available on our web site.
CUTOUT
SIZE
BOWL DEPTH
LEFT CENTER RIGHT
DRAIN
DIAMETER
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Drop-In sink to be triple bowl design, 43' in
length and 22' in front-to-back depth. Sink to
be made from 20 gauge, 304 series stainless
steel, with 18/8 chrome/nickel content and
satin finish. Sink to feature rear drain placement
in two large bowls and straight bowl sides with
1-1/2" cutout corner radius. Sink to be Blanco
Model 501-112, with left bowl depth of 7-1/2',
center bowl depth of 6" and right bowl depth
of 7-1/2'.
V
CM
'V..
[-1-
1
ID
J
)
'V..
V
)
iUJ
LUG ie SCREW
SECTION THRU FLANGE
MAKE CUTOUT ACCURATELY. 3/4 LESS IN
WIDTH AND IN LENGTH THAN OVERALL SIZE.
CORNERS OF CUTOUT MAY BE SQUARE OR
ANY RADIUS UP TO 1/2.
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
__________
_____
KNOCKOUT HOLE LOCATIONS
Pre-drilled for three faucet holes.
No additional holes available.
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2007 BLANCO AMERICA
04/07 SPEC-003
