BLANCO

FEATURED MODEL
501 -109 7-1/4- & 7-1/4" bowl depths

FEATURES

• 20 gauge, 304 series stainless steel

• 18/8 chrome/nickel content

• Long-lasting, easy-to-clean, satin finish

• Rear drain placement

• Straight bowi sides with 1 -1/2' cutout corner radius

OPTIONAL ACCESSORIES

Sink Grids: 221 -034 (Fonnerly 501 -915)

221 -035 (Formerly 501-916)

Colander: 215-651

WARRANTY

Blanco America's BLANCOSPEX^'^ Series sinks feature
a 25-year “NO HASSLE” LIMITED WARRANTY to be
free of all manufacturing defects under normai use.
See our complete warranty for details.

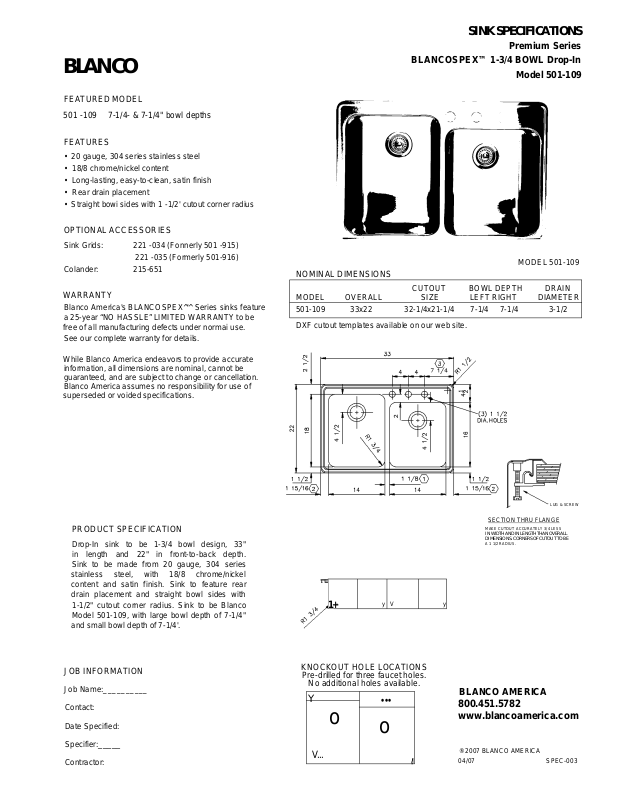

SINK SPECIFICATIONS

Premium Series

BLANCOSPEX™ 1-3/4 BOWL Drop-In

Model 501-109

MODEL 501-109

NOMINAL DIMENSIONS

MODEL OVERALL
501-109 33x22 32-1/4x21-1/4 7-1/4 7-1/4 3-1/2

DXF cutout templates available on our web site.

CUTOUT

SIZE

BOWL DEPTH

LEFT RIGHT

DRAIN

DIAMETER

While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRODUCT SPECIFICATION

Drop-In sink to be 1-3/4 bowl design, 33"
in length and 22" in front-to-back depth.
Sink to be made from 20 gauge, 304 series
stainless steel, with 18/8 chrome/nickel
content and satin finish. Sink to feature rear
drain placement and straight bowl sides with
1-1/2" cutout corner radius. Sink to be Blanco
Model 501-109, with large bowl depth of 7-1/4"
and small bowl depth of 7-1/4'.

1+ "

LUG & SCREW

SECTION THRU FLANGE

MAKE CUTOUT ACCURATELY 3/4 LESS

IN WIDTH AND IN LENGTH THAN OVERALL
DIMENSIONS. CORNERS OF CUTOUT TO BE

A 1 1/2 RADIUS.

y

V

y

JOB INFORMATION

Job Name:__________

Contact:
Date Specified:
Specifier:
Contractor:

_____

KNOCKOUT HOLE LOCATIONS

Pre-drilled for three faucet holes.

No additional holes available.

Y

• • •

o

o

V. ..

/J

BLANCO AMERICA

800.451.5782
www.blancoamerica.com

® 2007 BLANCO AMERICA
04/07 SPEC-003
