Blanco 501-104 User Manual

BLANCO
FEATURED MODEL
501-104 7“ bowl depth
FEATURES
• 18/8 chrome/nickel content
• Long-lasting, easy-to-clean, satin finish
• Rear drain placement
OPTIONAL ACCESSORIES
Sink Grid: 221 -033 (formerly 501 -914) Colander: 215-651
WARRANTY
Blanco Amerloa's BLANCOSPEX^“ Series sinks feature
a 25-year “NO HASSLE" LIMITED WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.
While Blanco America endeavors to provide accurate information, ali dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

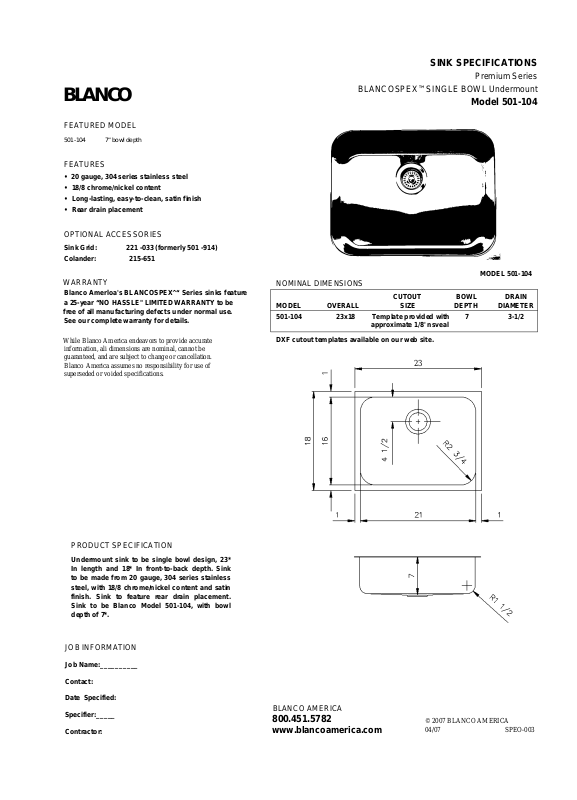

SINK SPECIFICATIONS
Premium Series
BLANCOSPEX™ SINGLE BOWL Undermount
Model 501-104
MODEL 501-104
NOMINAL DIMENSIONS
MODEL OVERALL SIZE DEPTH DIAMETER 501-104 23x18 Template provided with
DXF cutout templates available on our web site.
CUTOUT BOWL DRAIN
7 3-1/2
approximate 1/8' nsveal
23
PRODUCT SPECIFICATION
Undermount sink to be single bowl design, 23* In length and 18* In front-to-back depth. Sink to be made from 20 gauge, 304 series stainless steel, with 18/8 chrome/nickel content and satin finish. Sink to feature rear drain placement. Sink to be Blanco Model 501-104, with bowl depth of 7*.
JOB INFORMATION
Job Name:
Contact: Date Specified:
Specifier:
Contractor:
__________
_____
BLANCO AMERICA
800.451.5782

www.blancoamerica.com

© 2007 BLANCO AMERICA 04/07 SPEO-003
