Blanco 442273 User Manual
FEATURED MODEL
442273 ARTONA Pull-Down 1.5 gpm, BISCUIT & STAINLESS
ADDITIONAL MODELS
442037 1.5 gpm, STAINLESS Finish
442038 1.5 gpm, CHROME
442031 1.5 gpm, ANTHRACITE & STAINLESS Dual Finish
442032 1.5 gpm, CAFE BROWN & STAINLESS Dual Finish
442033 1.5 gpm, CINDER & STAINLESS Dual Finish
442034 1.5 gpm, METALLIC GRAY & STAINLESS Dual Finish
442035 1.5 gpm, TRUFFLE & STAINLESS Dual Finish
442036 1.5 gpm, WHITE & STAINLESS Dual Finish
FEATURES
• Solid brass body
• Ceramic disk cartridge
Pull-down spray
•
1.5 GPM flow rate
•
• Installation in a 1-3/8” hole
• Color coded hot and cold supply lines
180 degree spout swivel
•
Maximum deck thickness 2-1/4"
•
OPTIONAL ACCESSORIES
ARTONA Soap Dispenser
ARTONA Bar/Prep Faucet
442048 Chrome
442046 Chrome

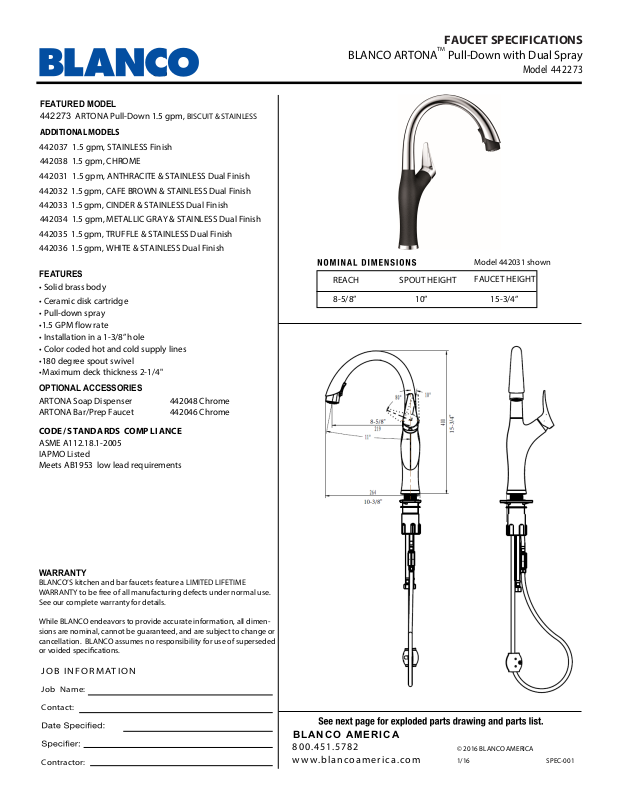

FAUCET SPECIFICATIONS
BLANCO ARTONATM Pull-Down with Dual Spray
Model 442273
Model 442031 shown
REACH SPOUT HEIGHT
8-5/8” 10” 15-3/4”
FAUCET HEIGHT
CODE / S TANDA RDS COMP L I ANC E
ASME A112.18.1-2005
IAPMO Listed
Meets AB1953 low lead requirements
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2016 BLANCO AMERICA
1/16
SPEC-001
9
10
12
11
13
18
FAUCET SPECIFICATIONS
BLANCO ARTONATM Pull-Down with Dual Spray
Model 442038
REPAIR PART GUIDE
Diagram #
1
2
2
3
4
5
5
6
6
8
7
6
3
5
4
2
7
7
8
9
9
9
9
9
9
9
10
11
12
13
14
15
15
16
17
17
18
Artona Mounting Kit
ARTONA Base Chrome
ARTONA Base Stainless
Cartridge
ARTONA Cartridge Lock Nut Chrome
ARTONA Cartridge Cap Chrome
ARTONA Cartridge Cap Stainless
ARTONA Cap and Screw Chrome
ARTONA Cap and Screw Stainless
ARTONA Handle Chrome
ARTONA Handle Stainless
Set of rings
ARTONA Handspray Anthracite
ARTONA Handspray Biscuit
ARTONA Handspray Café Brown
ARTONA Handspray Cinder
ARTONA Handspray Metalliic Gray
ARTONA Handspray Truffle
ARTONA Handspray White
Aerator Kit
Aerator
Supply lines
Spray Hose with Check Valve
Supply Line
ARTONA Hose Connection 2.2gpm
ARTONA Hose Connection 1.5gpm
Weight 320 grams
Flow Restrictor with Check Valve 2.2gpm
Flow Restrictor with Check Valve 1.5gpm
Spray Hose Check Valve
Description
Part #
442106
442107
442123
442109
442110
442111
442124
442112
442125
442113
442126
442114
442132
442138
442133
442134
442135
442136
442137
442116
442117
441554
442127
442118
442128
442129
441556
442130
442131
442122
14
17
15
16
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com
1
Faucet hole Φ1-3/8"
Need to Change a Faucet Cartridge?
Scan this QR code
to see our how-to video
For faucet technical support or questions,
please e-mail us at blanco@blancoamerica.com
© 2016 BLANCO AMERICA
1/16
SPEC-001
