Blanco 441754 User Manual
FEATURED MODEL
441754 Semi Professional 1.5 gpm, SATIN NICKEL
ADDITIONAL MODELS
440557 Semi Professional 2.2 gpm, SATIN NICKEL
440558 Semi Professional 2.2 gpm, CHROME
441408 Semi Professional 1.8 gpm, CHROME
441409 Semi Professional 1.8 gpm, SATIN NICKEL
441753 Semi Professional 1.5 gpm, CHROME
FEATURES
• Solid brass body and pull-down handspray
• Ceramic disk cartridge
• Extra long supply lines
1.5 GPM flow rate
•
• Installation in a 1-3/8” hole
• Color coded hot and cold supply lines
• 5” to 6” pull down
• 360 degree spout swivel
• 3“ backsplash clearance off center
• 3-1/2” maximum deck thickness

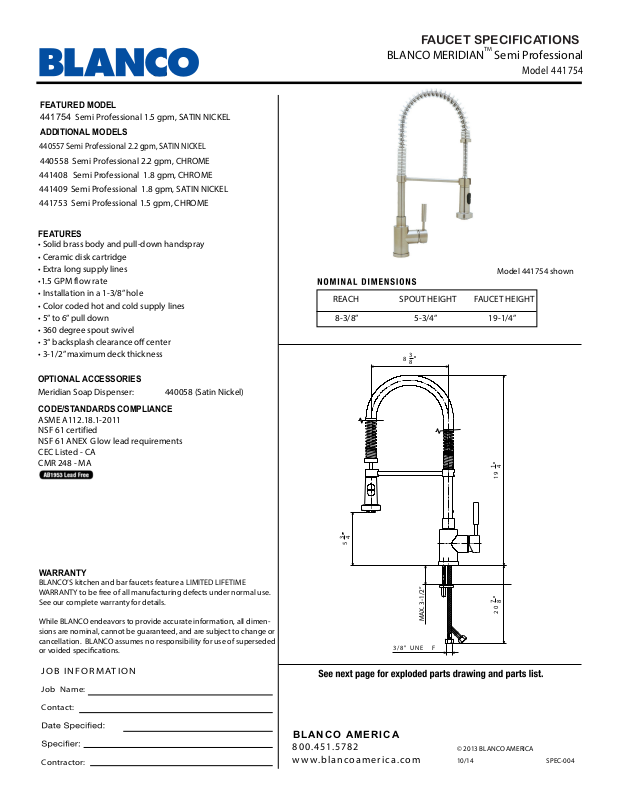

FAUCET SPECIFICATIONS
BLANCO MERIDIANTM Semi Professional
Model
Model 441754 shown
REACH SPOUT HEIGHT FAUCET HEIGHT
8-3/8” 5-3/4” 19-1/4”
3
8
8
441754
OPTIONAL ACCESSORIES
Meridian Soap Dispenser: 440058 (Satin Nickel)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
NSF 61 certified
NSF 61 ANEX G low lead requirements
CEC Listed - CA
CMR 248 - MA
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
1
4
1 9
3
4
5
7
8
MAX. 3-1/2”
3/8" UN E F
2 0
Job N ame:
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
10
9.1
9
9.2
11
FAUCET SPECIFICATIONS
BLANCO MERIDIANTM Semi Professional
Model 441 754
REPAIR PART GUIDE
Num.
Handle - Satin Nickel
1, 1.1
1.1
Handle - Screw and Cap
Cartridge Lock Nut
2
Cartridge
3
12
8.1
10
4
5
6
7
8, 8.1
8.1
9,9.1,9.2
9.1
9.2
10
11
12
Round base - Satin Nickel
Holding screw
O-ring set
Mounting set
Handspray dock station and screw
Docking station screw
Handspray - Satin Nickel
Flow regulator 1.5
Aerator
Pull-out hose
Spring ring & screw - Satin Nickel
Flow regulator/check valve
8
Description
Part #
441860
440890
441862
440877
441864
441745
441744
441751
441866
441867
441936
441951
441748
441737
441869
441743
Need to Change a Faucet Cartridge?
Scan this QR code
to see our how-to video
7
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a m e rica.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
