Blanco 441617 Specifications

FEATURED MODEL

441616 Compact Pull-Out, ANTHRACITE & CHROME MIX

BLANCO ALTA

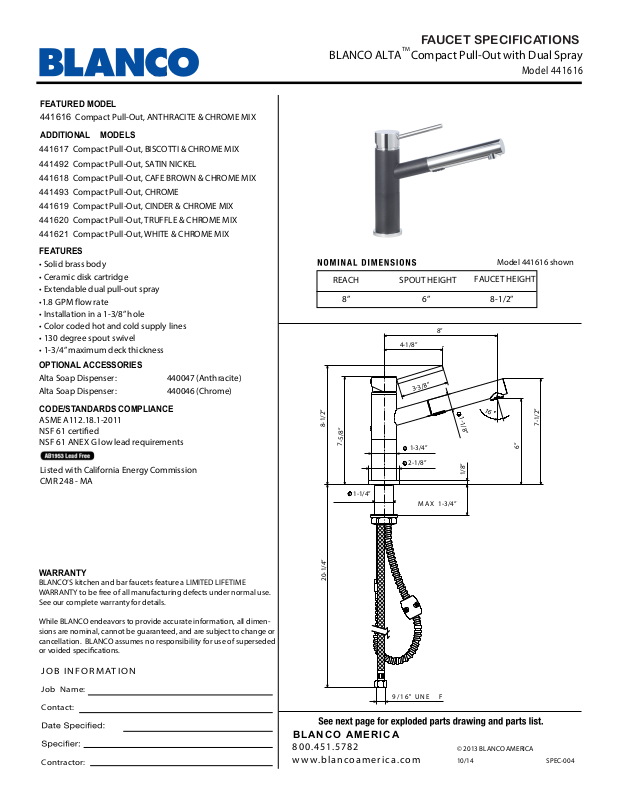

FAUCET SPECIFICATIONS

TM

Compact Pull-Out with Dual Spray

Model

441616

ADDITIONAL MODELS

441617 Compact Pull-Out, BISCOTTI & CHROME MIX

441492 Compact Pull-Out, SATIN NICKEL

441618 Compact Pull-Out, CAFE BROWN & CHROME MIX

441493 Compact Pull-Out, CHROME

441619 Compact Pull-Out, CINDER & CHROME MIX

441620 Compact Pull-Out, TRUFFLE & CHROME MIX

441621 Compact Pull-Out, WHITE & CHROME MIX

FEATURES

• Solid brass body

• Ceramic disk cartridge

• Extendable dual pull-out spray

1.8 GPM flow rate

•

• Installation in a 1-3/8” hole

• Color coded hot and cold supply lines

• 130 degree spout swivel

• 1-3/4” maximum deck thickness

OPTIONAL ACCESSORIES

Alta Soap Dispenser: 440047 (Anthracite)

Alta Soap Dispenser: 440046 (Chrome)

CODE/STANDARDS COMPLIANCE

ASME A112.18.1-2011
NSF 61 certied
NSF 61 ANEX G low lead requirements

Listed with California Energy Commission
CMR 248 - MA

REACH SPOUT HEIGHT

8” 6” 8-1/2”

8”

4-1/8”

3-3/8”

-1/2”8
”8/5-7

1-3/4”

2-1/8”

1-1/4”

M AX

1-1/8”

1/8”

1-3/4”

Model 441616 shown

FAUCET HEIGHT

1

6

”
6

”2/1-7

WARRANTY

BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.

While BLANCO endeavors to provide accurate information, all dimen­sions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.

J O B INF OR MA TION

Job N ame:

Contact:

Contractor:

”4/1-02

9/16" UN E F

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

© 2013 BLANCO AMERICA

10/14

SPEC-004

1.1

1

2

3

4

5

FAUCET SPECIFICATIONS

BLANCO ALTATM Compact Pull-Out with Dual Spray

Model 441616

REPAIR PART GUIDE

Num.

Handle - Chrome

1, 1.1

1.1

Handle - Screw and Cap

2

10.2

10

4

10.1

Cartridge lock nut
Cartridge

3

Inner body ring set and screw

4,5

Mounting assembly

6

7

Spray hose

8

Check valve
Weight

9

Handspray - Chrome 1.8 GPM

10

10.1

Aerator

Flow regulator 1.8 GPM

2

10.

Description

Part #

441887

440889

441889
440877
441891

441892

440878
441874

441917
441931

440905

441445

6

9

Faucet hole Φ1-3/8"

Need to Change a Faucet Cartridge?

Scan this QR code
to see our how-to video

8

7

For faucet technical support or questions,
please e-mail us at [e-mail]

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com

© 2013 BLANCO AMERICA

8/13

SPEC-003
