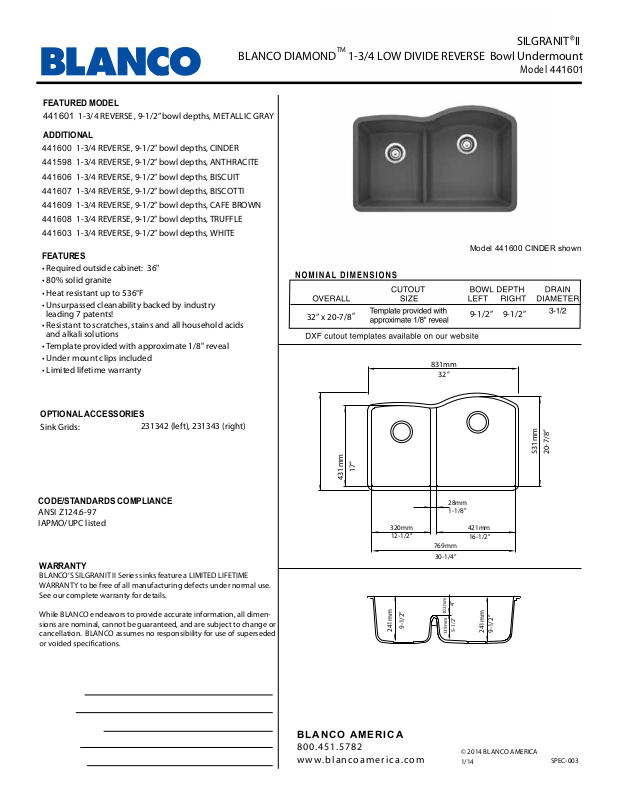

Blanco 441601 User Manual
BLANCO DIAMOND
FEATURED MODEL
441601 1-3/4 REVERSE , 9-1/2” bowl depths, METALLIC GRAY
ADDITIONAL
441600 1-3/4 REVERSE , 9-1/2” bowl depths, CINDER
441598
441606 1-3/4 REVERSE , 9-1/2” bowl depths, BISCUIT
441607 1-3/4 REVERSE , 9-1/2” bowl depths, BISCOTTI
441609 1-3/4 REVERSE , 9-1/2” bowl depths, CAFE BROWN
441608 1-3/4 REVERSE , 9-1/2” bowl depths, TRUFFLE
441603 1-3/4 REVERSE , 9-1/2” bowl depths, WHITE
FEATURES
• Required outside cabinet: 36"
• 80% solid granite
• Heat resistant up to 536°F
• Unsurpassed cleanability backed by industry
leading 7 patents!
• Resistant to scratches, stains and all household acids
and alkali solutions
• Template provided with approximate 1/8" reveal
• Under mount clips included
• Limited lifetime warranty
1-3/4 REVERSE , 9-1/2” bowl depths, ANTHRACITE
TM
1-3/4 LOW DIVIDE REVERSE Bowl Undermount
32” x 20-7/8”
831mm
32”
SILGRANIT II
Mo de l
441601
Model 441600 CINDER shown
9-1/2”
9-1/2”
OPTIONAL ACCESSORIES
Sink Grids:
231342 (left), 231343 (right)
CODE/STANDARDS COMPLIANCE
ANSI Z124.6-97
IAPMO/UPC listed
WARRANTY
BLANCO’S SILGRANIT II Series sinks feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
17”
431mm
320mm
12-1/2”
9-1/2”
241mm
28mm
1-1/8”
769mm
30-1/4”
102mm
139mm
4”
5-1/2”
421mm
16-1/2”
241mm
9-1/2”
531mm
20-7/8”
B L A N CO A M E R I C A
8 0 0 . 451. 57 8 2
w w w. b l a n coam er ic a. co m
© 2014 BLANCO AMERICA
1/14
SPEC-003
