FEATURED MODEL
441508 Pull-Down Spray, CHROME

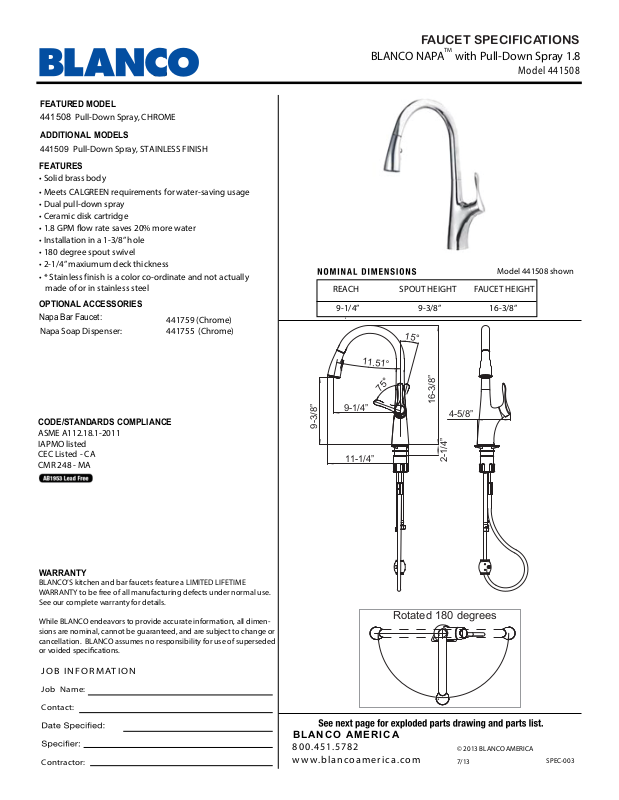

FAUCET SPECIFICATIONS
BLANCO NAPATM with Pull-Down Spray 1.8
Mo del 441508
ADDITIONAL MODELS
441509 Pull-Down Spray, STAINLESS FINISH
FEATURES
• Solid brass body
• Meets CALGREEN requirements for water-saving usage
• Dual pull-down spray
• Ceramic disk cartridge
• 1.8 GPM ow rate saves 20% more water
• Installation in a 1-3/8” hole
• 180 degree spout swivel
• 2-1/4” maxiumum deck thickness
• * Stainless finish is a color co-ordinate and not actually
made of or in stainless steel
OPTIONAL ACCESSORIES
Napa Bar Faucet:
Napa Soap Dispenser:
441759 (Chrome)
441755 (Chrome)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
IAPMO listed
CEC Listed - CA
CMR 248 - MA
REACH SPOUT HEIGHT FAUCET HEIGHT
9-1/4” 9-3/8” 16-3/8”
15°
11.51°
75°
9-1/4”
16-3/8”
4-5/8”
9-3/8”
11-1/4”
2-1/4”
Model 441508 shown
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
Contractor:
Rotated 180 degrees
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
7/13
SPEC-003
FAUCET SPECIFICATIONS
BLANCO NAPATM with Pull-Down Spray 1.8
Mo del 441508
15
16
8
7
4
6
3
2
1
5
REPAIR PART GUIDE
Description
Part #
441545
441544
441557
441559
441540
441539
441561
441568
441566
441574
441555
441556
441570
441548
442083
441957
12
11
9
10
13
14
Num.
Cartridge
1
2
Cartridge Lock Nut
Cartridge cap - Chrome
3
Handle - Chrome
4
5
Screw cap - Chrome
Handle screw
6
7
Set of O-rings and screw
8
Handspray - Chrome
Supply lines
9
10
Spray hose
11
Check valve
Weight
12
Check valve w/ ˜o w restrictor 1.8
13
14
Mounting kit
Aerator
15
Aerator Tool
16
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com
Need to Change a Faucet Cartridge?
Faucet hole Φ1-3/8"
Scan this QR code
to see our how-to video
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
© 2013 BLANCO AMERICA
