Blanco 441506 User Manual
FEATURED MODEL
441506 Pull-Down Spray, CHROME

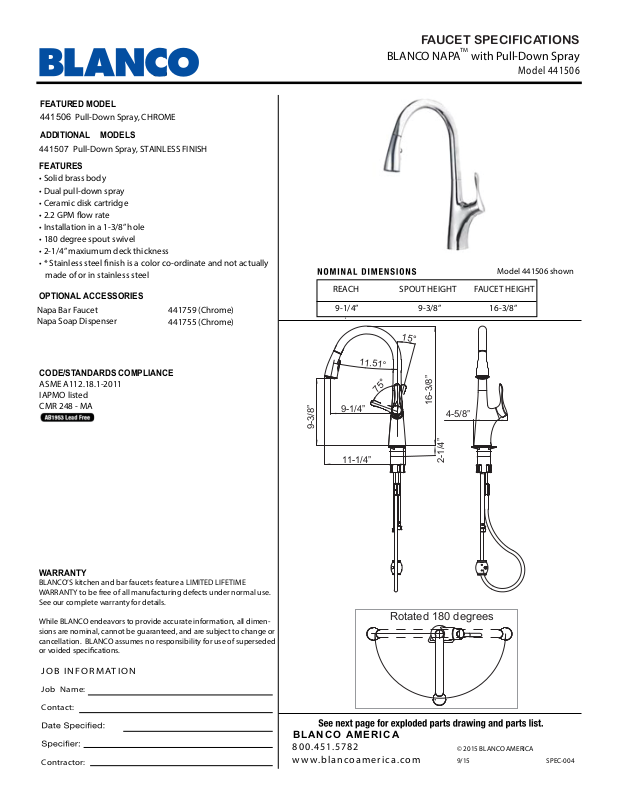

FAUCET SPECIFICATIONS
BLANCO NAPATM with Pull-Down Spray
Mo del 441506
ADDITIONAL MODELS
441507 Pull-Down Spray, STAINLESS FINISH
FEATURES
• Solid brass body
• Dual pull-down spray
• Ceramic disk cartridge
• 2.2 GPM ow rate
• Installation in a 1-3/8” hole
• 180 degree spout swivel
• 2-1/4” maxiumum deck thickness
• * Stainless steel nish is a color co-ordinate and not actually
made of or in stainless steel
OPTIONAL ACCESSORIES
Napa Bar Faucet
Napa Soap Dispenser
441759 (Chrome)
441755 (Chrome)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
IAPMO listed
CMR 248 - MA
REACH SPOUT HEIGHT FAUCET HEIGHT
9-1/4” 9-3/8” 16-3/8”
15°
11.51°
75°
9-1/4”
16-3/8”
4-5/8”
9-3/8”
Model 441506 shown
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
Contractor:
11-1/4”
Rotated 180 degrees
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
2-1/4”
© 2015 BLANCO AMERICA
9/15
SPEC-004
FAUCET SPECIFICATIONS
BLANCO NAPATM with Pull-Down Spray
Mo del 441506
15
16
8
7
4
6
3
2
1
5
REPAIR PART GUIDE
Description
Part #
441545
441544
441557
441559
441540
441539
441561
441568
441566
441574
441555
441556
441572
441548
442083
441957
12
11
9
10
13
14
Num.
Cartridge
1
2
Cartridge Lock Nut
Cartridge cap - Chrome
3
Handle - Chrome
4
5
Screw cap - Chrome
Handle screw
6
7
Set of O-rings and screw
8
Handspray - Chrome
Supply lines
9
10
Spray hose
11
Check valve
Weight
12
Check valve with ow restrictor
13
14
Mounting kit
Aerator
15
Aerator Tool
16
Need to Change a Faucet Cartridge?
Faucet hole Φ1-3/8"
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com
Scan this QR code
to see our how-to video
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
© 2015 BLANCO AMERICA
9/15
SPEC-004
