Blanco 441490 User Manual

FEATURED MODEL

441490 Compact Pull-Out, TRUFFLE & CHROME MIX

ADDITIONAL MODELS

441484 Compact Pull-Out, ANTHRACITE & CHROME MIX

441485 Compact Pull-Out, BISCOTTI & CHROME MIX

441486 Compact Pull-Out, SATIN NICKEL

441487 Compact Pull-Out, CAFE BROWN & CHROME MIX

441488 Compact Pull-Out, CHROME

441489 Compact Pull-Out, CINDER & CHROME MIX

441491 Compact Pull-Out, WHITE & CHROME MIX

FEATURES

• Solid brass body

• Ceramic disk cartridge

• Extendable dual pull-out spray

• 2.2 GPM ow rate

• Installation in a 1-3/8” hole

• Color coded hot and cold supply lines

• 130 degree spout swivel

• 1-3/4” maximum deck thickness

OPTIONAL ACCESSORIES

Alta Soap Dispenser: 440046 (Chrome)

CODE/STANDARDS COMPLIANCE

ASME A112.18.1-2011
NSF 61 certified
NSF 61 ANEX G lo w lead requir

ements

CMR 248 - MA

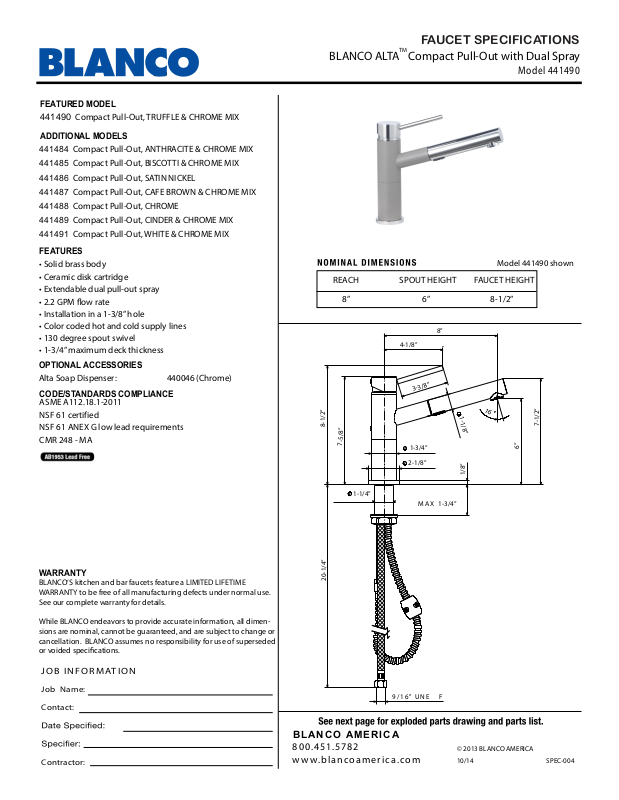

FAUCET SPECIFICATIONS

BLANCO ALTA

REACH SPOUT HEIGHT FAUCET HEIGHT

8” 6” 8-1/2”

-1/2”8
”8/5-7

TM

Compact Pull-Out with Dual Spray

Model 441490 shown

8”

4-1/8”

3-3/8”

1

6

1-1/8”

1-3/4”

2-1/8”

1/8”

Mo del 441490

”2/1-7

”
6

WARRANTY

BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.

While BLANCO endeavors to provide accurate information, all dimen­sions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.

J O B INF OR MA TION

Job N ame:

Contact:

Contractor:

1-1/4”

”4/1-02

9/16" UN E F

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

M AX

1-3/4”

© 2013 BLANCO AMERICA

10/14

SPEC-004

1.1

FAUCET SPECIFICATIONS

BLANCO ALTATM Compact Pull-Out with Dual Spray

Mo del 441490

1

2

3

4

5

Num.

1, 1.1

10.2

10

4

10.1

1.1
2

3
4, 5
6

7

8
9
10

10.1

10.2

REPAIR PART GUIDE

Description

Handle - Chrome

Handle - Screw and Cap
Cartridge lock nut
Cartridge
Inner body ring set and screw

Mounting assembly
Spray hose
Check valve

Weight
Handspray - Chrome

Aerator

Flow Regulator 2.2 GPM

Part #

441887

440889

441889

440877

441891

441892
440878

441874

441917
441447
440905
441448

Need to Change a Faucet Cartridge?

6

Scan this QR code

9

to see our how-to video

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com

Faucet hole Φ1-3/8"

8

7

For faucet technical support or questions,
please e-mail us at [e-mail]
