Blanco 441431 User Manual
FEATURED MODEL
441431 Pull-Out with Dual Spray, SATIN NICKEL
ADDITIONAL MODELS
441430 Pull-Out with Dual Spray, CHROME
FEATURES
• Button activated dual spray
• Ceramic disk cartridge
• 1.8 GPM ow rate saves 20% more water
• Classic contemporary design that makes every kitchen look
professional
• Installation in a 1-3/8” hole
• 140 degree spout swivel
• 2“ backsplash clearance off center
• 1-3/4” maximum deck thickness
• Meets CALGREEN requirements for water-saving usage
OPTIONAL ACCESSORIES
Deluxe Soap Dispenser: 440005 (Satin Nickel)
Meridian Soap Dispenser: 440058 (Satin Nickel)
Alta Soap Dispenser: 440045 (Satin Nickel)
Milano Soap Dispenser: 440049 (Satin Nickel)
Harvest Soap Dispenser: 440053 (Satin Nickel)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
NSF 61 certied
NSF 61 ANEX G low lead requirements
Listed with California Energy Commission
CMR 248 - MA

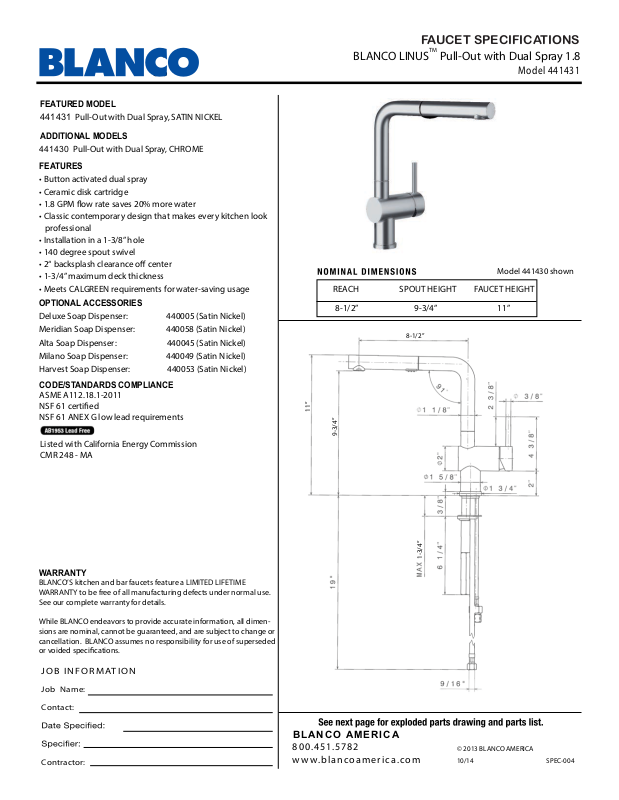

FAUCET SPECIFICATIONS
BLANCO LINUSTM Pull-Out with Dual Spray 1.8
Mo del 441431
Model 441430 shown
REACH SPOUT HEIGHT FAUCET HEIGHT
8-1/2” 9-3/4” 11”
8-1/2”
11”
9-3/4”
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
1-3/4”
© 2013 BLANCO AMERICA
10/14
SPEC-004
FAUCET SPECIFICATIONS
441445
BLANCO LINUSTM Pull-Out with Dual Spray 1.8
Mo del 441431
9.2
11
9.1
Num.
,1.1
1
1.1
2
9
10
2
3
5
6
4
1.1
3
4, 5
6
7
8
,9.1,9.2
9
9.1
9.2
10
11
Need to Change a Faucet Cartridge?
REPAIR PART GUIDE
Description
Handle - Satin Nickel
Handle - Screw and Cap
Cartridge Lock Nut
Cartridge
Spout - Ring set and screw
Base - Satin Nickel
Mounting assembly
Check valve assembly 1.8 GPM
Handspray - Satin Nickel 1.8 GPM
Flow regulator 1.8 GPM
Aerator set Satin Nickel
Spray hose
Weight
Part #
441920
440890
441925
440877
441929
441972
441976
1937
44
1939
44
441978
441066
441917
7
8
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
Scan this QR code
to see our how-to video
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a m e rica.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
