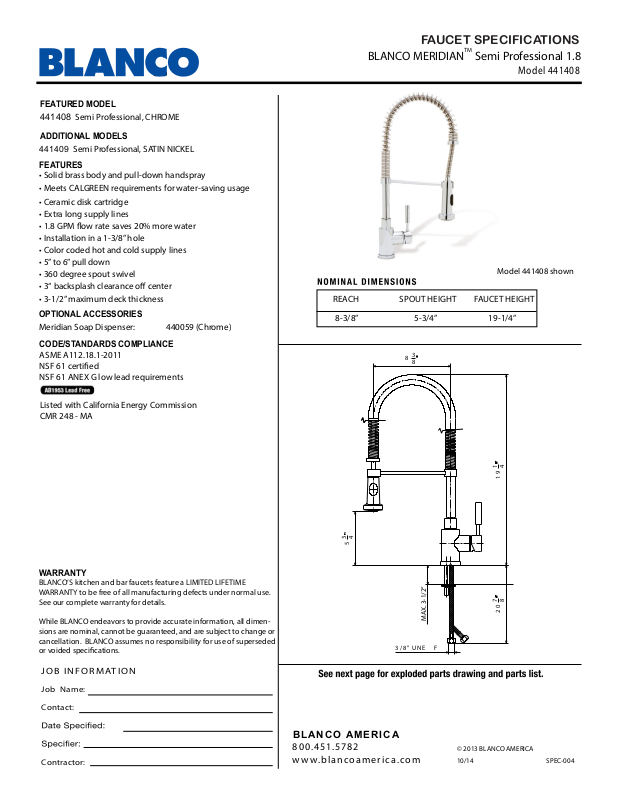

Blanco 441408 User Manual
FEATURED MODEL
441408 Semi Professional, CHROME
ADDITIONAL MODELS
441409 Semi Professional, SATIN NICKEL
FEATURES
• Solid brass body and pull-down handspray
• Meets CALGREEN requirements for water-saving usage
• Ceramic disk cartridge
• Extra long supply lines
• 1.8 GPM ow rate saves 20% more water
• Installation in a 1-3/8” hole
• Color coded hot and cold supply lines
• 5” to 6” pull down
• 360 degree spout swivel
• 3“ backsplash clearance off center
• 3-1/2” maximum deck thickness
OPTIONAL ACCESSORIES
Meridian Soap Dispenser: 440059 (Chrome)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
NSF 61 certied
NSF 61 ANEX G low lead requirements
FAUCET SPECIFICATIONS
BLANCO MERIDIANTM Semi Professional 1.8
Mo del 441408
Model 441408 shown
REACH SPOUT HEIGHT FAUCET HEIGHT
8-3/8” 5-3/4” 19-1/4”
3
8
8
Listed with California Energy Commission
CMR 248 - MA
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
1
4
1 9
3
4
5
7
8
MAX. 3-1/2”
3/8" UN E F
2 0
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
10
9.1
9
9.2
11
FAUCET SPECIFICATIONS
BLANCO MERIDIANTM Semi Professional 1.8
Mo del 441408
Old Model #: 157-140-CR
REPAIR PART GUIDE
Num.
Handle w/ screw & cap - Chrome
1, 1.1
1.1
Handle - Screw and Cap only
Cartridge Lock Nut
2
Cartridge
3
12
8.1
10
4
5
6
7
8, 8.1
8.1
9,9.1,9.2
9.1
9.2
10
11
12
Round base - Chrome
Holding screw
O-ring set
Mounting set
Handspray dock station and screw
Docking station screw
Handspray 1.8 GPM - Chrome
Flow regulator 1.8
Aerator
Pull-out hose
Spring ring and screw - Chrome
Flow regulator/check valve
8
Description
Part #
441859
440889
441861
440877
441863
441745
441744
441751
441865
441867
441933
441445
440766
441737
441868
441743
Need to Change a Faucet Cartridge?
Scan this QR code
to see our how-to video
7
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a merica.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
