Blanco 441335 User Manual
FEATURED MODEL
441335 Pull-Out Stream Only, TRUFFLE
ADDITIONAL MODELS
441196 Pull-Out Stream Only, CHROME
441197 Pull-Out Stream Only, SATIN NICKEL
441198 Pull-Out Stream Only, CAFE BROWN
441199 Pull-Out Stream Only, ANTHRACITE
FEATURES
• Ceramic disk cartridge
• 2.2 GPM ow rate
• Pull-out single function spray
• Installation in a 1-3/8” hole
• 140 degree spout swivel
• 2“ backsplash clearance off center
• 1-3/4” maximum deck thickness
OPTIONAL ACCESSORIES
Milano Soap Dispenser: 441320 (Truffle)
CODE/STANDARDS COMPLIANCE
ASME A112.18.1-2011
NSF 61 certified
NSF 61 ANEX G low lead requirements
CMR 248 - MA

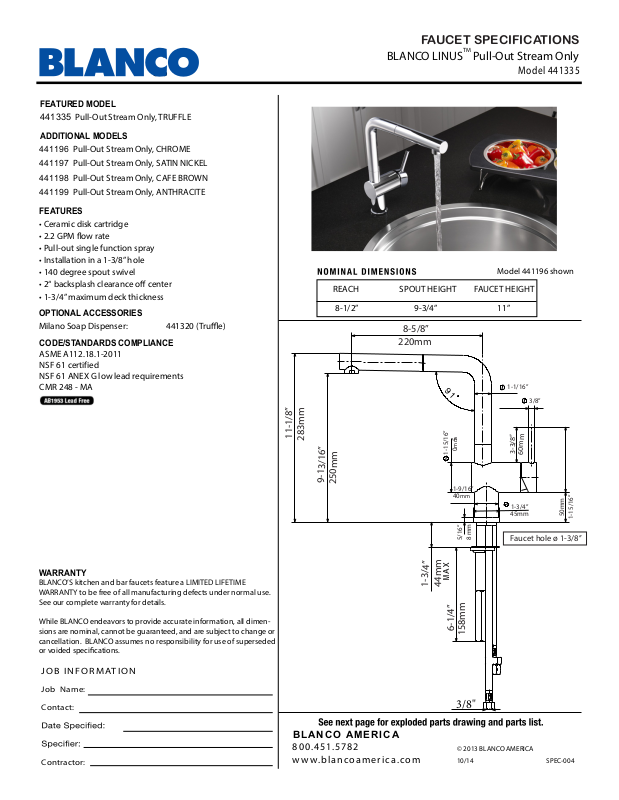

FAUCET SPECIFICATIONS
BLANCO LINUSTM Pull-Out Stream Only
Mo del 441335
Model 441196 shown
REACH SPOUT HEIGHT FAUCET HEIGHT
8-1/2” 9-3/4” 11”
8-5/8”
220mm
1-1/16”
3/8”
WARRANTY
BLANCO’S kitchen and bar faucets feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
or voided specications.
J O B INF OR MA TION
Job N ame:
Contact:
11-1/8”
283mm
9-13/16”
250mm
1-3/4”
44mm
mm
0 5
1-15/16”
1-9/16”
mm
40
5/16”
6-1/4”
3/8"
mm
8
158mm
3-3/8”
60mm
1-3/4”
45mm
Faucet hole ø 1-3/8’’
50mm
1-15/16”
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
10/14
SPEC-004
9.1
FAUCET SPECIFICATIONS
BLANCO LINUSTM Pull-Out Stream Only
Mo del 441335
REPAIR PART GUIDE
Num.
1, 1.1
1.1
9
9.2
4
5
3
6
2
9,9.1,9.2
1.1
Handle screw and cap
Cartridge Lock Nut
2
Cartridge
3
4, 5
Spout - Ring set and screw
6
Mounting assembly
7
Check valve assembly 2.2 GPM
8
Handspray - Truffle 2.2 GPM
9.1
Aerator
9.2
Flow regulator 2.2 GPM
10
Spray hose
11
Weight
Description
Part #
441922
440889
441927
440877
441929
441974
441976
441874
441436
441977
441448
441066
441917
Faucet hole ø 1-3/8”
10
7
11
Need to Change a Faucet Cartridge?
Scan this QR code
to see our how-to video
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w . b l a n c o a m e rica.com
For faucet technical support or questions,
please e-mail us at faucets@blancoamerica.com
8
© 2013 BLANCO AMERICA
10/14
SPEC-004
