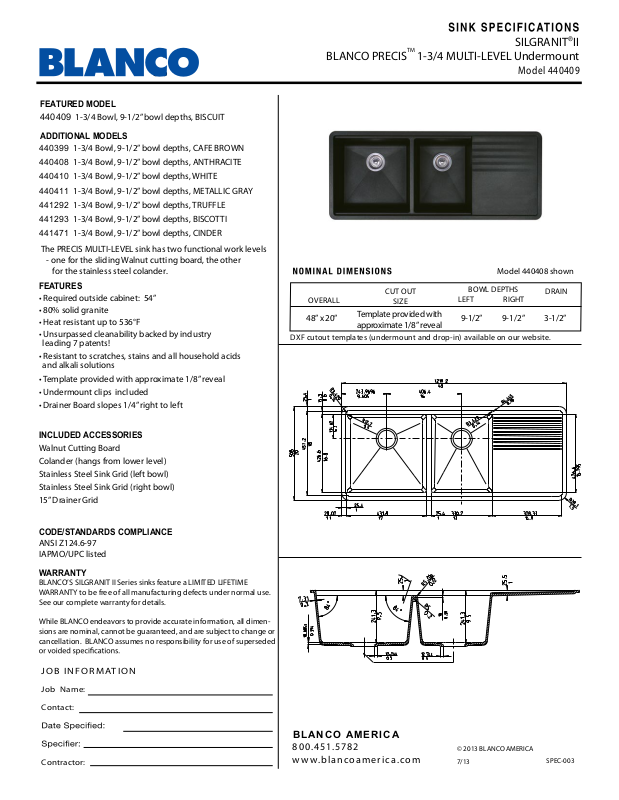

Blanco 440409 User Manual
FEATURED MODEL
440409 1-3/4 Bowl, 9-1/2” bowl depths, BISCUIT
ADDITIONAL MODELS
44039 9 1-3/4 Bowl, 9-1/2” bowl depths, CAFE BROWN
44040 8 1-3/4 Bowl, 9-1/2” bowl depths, ANTHRACITE
44041 0 1-3/4 Bowl, 9-1/2” bowl depths, WHITE
44041 1 1-3/4 Bowl, 9-1/2” bowl depths, METALLIC GRAY
44129 2 1-3/4 Bowl, 9-1/2” bowl depths, TRUFFLE
44129 3 1-3/4 Bowl, 9-1/2” bowl depths, BISCOTTI
44147 1 1-3/4 Bowl, 9-1/2” bowl depths, CINDER
The PRECIS MULTI-LEVEL sink has two functional work levels
- one for the sliding Walnut cutting board, the other
for the stainless steel colander.
FEATURES
• Required outside cabinet: 54”
• 80% solid granite
• Heat resistant up to 536°F
• Unsurpassed cleanability backed by industry
leading 7 patents!
• Resistant to scratches, stains and all household acids
and alkali solutions
• Template provided with approximate 1/8” reveal
• Undermount clips included
• Drainer Board slopes 1/4” right to left
SILGRANIT II
BLANCO PRECIS
TM
1-3/4 MULTI-LEVEL Undermount
Model 440409
Model 440408 shown
OVERALL
48” x 20”
DXF cutout templates (undermount and drop-in) available on our website.
CUT OUT
SIZE
Template provided with
approximate 1/8” reveal
BOWL DEPTHS
LEFT RIGHT
9-1/2” 9-1/2” 3-1/2”
DRAIN
INCLUDED ACCESSORIES
Walnut Cutting Board
Colander (hangs from lower level)
Stainless Steel Sink Grid (left bowl)
Stainless Steel Sink Grid (right bowl)
15” Drainer Grid
CODE/STANDARDS COMPLIANCE
ANSI Z124.6-97
IAPMO/UPC listed
WARRANTY
BLANCO’S SILGRANIT II Series sinks feature a LIMITED LIFETIME
WARRANTY to be free of all manufacturing defects under normal use.
See our complete warranty for details.
While BLANCO endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or
cancellation. BLANCO assumes no responsibility for use of superseded
J O B I NF OR MA T I O N
Job Name:
Contact:
Contractor:
B L A N CO AMER I C A
8 0 0 . 451. 578 2
w w w. b l a n c o america.com
© 2013 BLANCO AMERICA
7/13
SPEC-003
