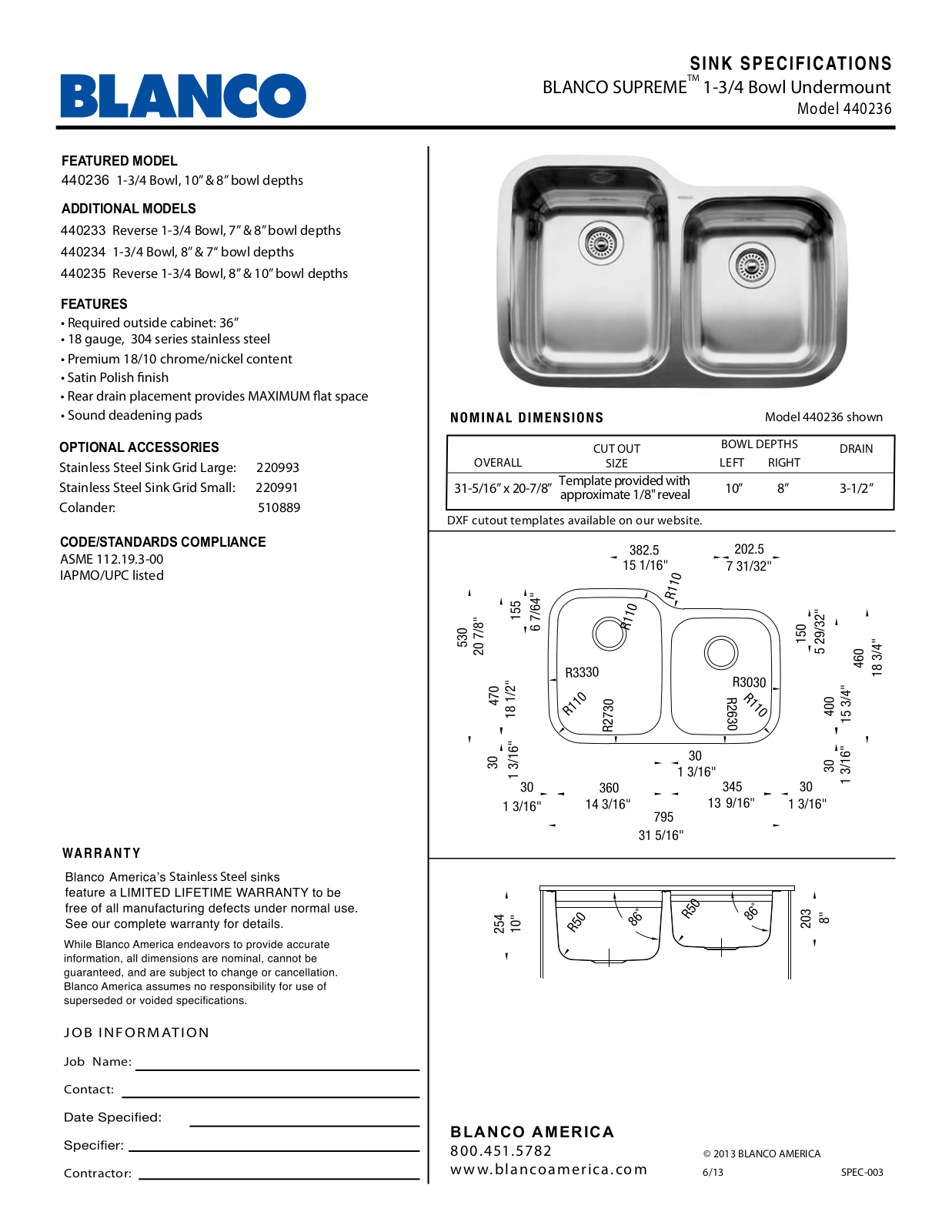

Blanco 440236 User Manual

FEATURED MODEL

440236 1-3/4 Bowl, 10” & 8” bowl depths

ADDITIONAL MODELS

440233 Reverse 1-3/4 Bowl, 7” & 8” bowl depths

440234

440235

1-3/4 Bowl, 8” & 7“ bowl depths

Reverse 1-3/4 Bowl, 8” & 10” bowl depths

FEATURES

• Required outside cabinet: 36”

• 18 gauge, 304 series stainless steel

• Premium 18/10 chrome/nickel content

•

BLANCO SUPREMETM 1-3/4 Bowl Undermount

Model 440236

• Sound deadening pads

OPTIONAL ACCESSORIES

Stainless Steel Sink Grid Large: 220993

Stainless Steel Sink Grid Small: 220991

Colander: 510889

CODE/STANDARDS COMPLIANCE

ASME 112.19.3-00
IAPMO/UPC listed

OVERALL LEFT RIGHT

31-5/16” x 20-7/8”

DXF cutout templates available on our website.

Template provided with

approximate 1/8" reveal

CUT OUT

SIZE

BOWL DEPTHS

10”

Model 440236 shown

DRAIN

8” 3-1/2”

Stainless Steel

J O B I NF OR MA T I O N

Job Name:

Contact:

Contractor:

B L A N CO AMER I C A

8 0 0 . 451. 578 2
w w w. b l a n c o america.com

© 2013 BLANCO AMERICA

6/13

SPEC-003
