BLANCO

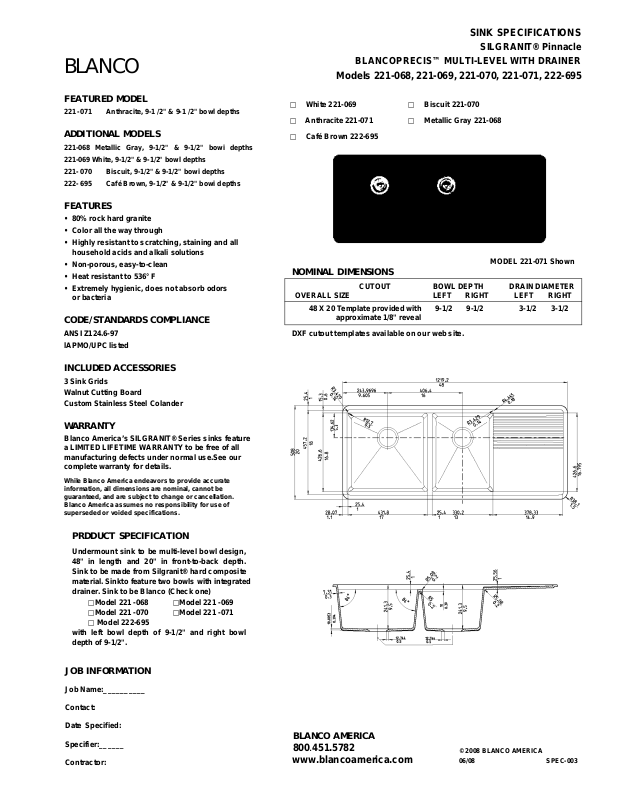

SINK SPECIFICATIONS

SILGRANIT® Pinnacle

BLANCOPRECIS™ MULTI-LEVEL WITH DRAINER

Models 221-068, 221-069, 221-070, 221-071, 222-695

FEATURED MODEL

221 -071 Anthracite, 9-1 /2" & 9-1 /2" bowl depths

ADDITIONAL MODELS

221-068 Metallic Gray, 9-1/2" & 9-1/2" bowi depths 221-069 White, 9-1/2" & 9-1/2" bowl depths 221- 070 Biscuit, 9-1/2" & 9-1/2" bowi depths 222- 695 Café Brown, 9-1/2" & 9-1/2" bowi depths

FEATURES

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all

household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors

or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

INCLUDED ACCESSORIES

3 Sink Grids Walnut Cutting Board Custom Stainless Steel Colander

□ White 221-069 □ Anthracite 221-071 □ Café Brown 222-695

□ Biscuit 221-070 □ Metallic Gray 221-068

MODEL 221-071 Shown

NOMINAL DIMENSIONS

OVERALL SIZE LEFT RIGHT LEFT RIGHT

48 X 20 Template provided with

DXF cutout templates available on our web site.

CUTOUT BOWL DEPTH DRAIN DIAMETER

9-1/2 9-1/2 3-1/2 3-1/2

approximate 1/8" reveal

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature a LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use.See our complete warranty for details.

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRDDUCT SPECIFICATION

Undermount sink to be multi-level bowl design, 48" in length and 20" in front-to-back depth. Sink to be made from Silgranit® hard composite material. Sinkto feature two bowls with integrated drainer. Sink to be Blanco (Check one)

□ Model 221 -068 □ Model 221 -069 □ Model 221 -070 □ Model 221 -071 □ Model 222-695

with left bowl depth of 9-1/2" and right bowl depth of 9-1/2".

JOB INFORMATION

Job Name:

Contact:

__________

Date Specified:

Specifier:

Contractor:

______

BLANCO AMERICA

800.451.5782

www.blancoamerica.com
