BLANCO

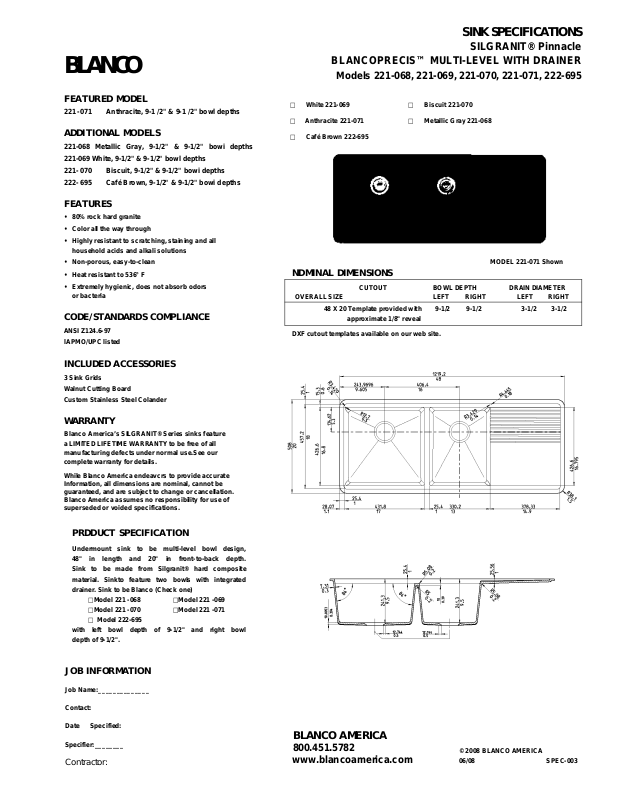

SINK SPECIFICATIONS

SILGRANIT® Pinnacle

BLANCOPRECIS™ MULTI-LEVEL WITH DRAINER

Models 221-068, 221-069, 221-070, 221-071, 222-695

FEATURED MODEL

221 -071 Anthracite, 9-1 /2" & 9-1 /2" bowl depths

ADDITIONAL MODELS

221-068 Metallic Gray, 9-1/2" & 9-1/2" bowi depths
221-069 White, 9-1/2" & 9-1/2" bowl depths
221- 070 Biscuit, 9-1/2" & 9-1/2" bowi depths
222- 695 Café Brown, 9-1/2" & 9-1/2" bowi depths

FEATURES

• 80% rock hard granite

• Color all the way through

• Highly resistant to scratching, staining and all

household acids and alkali solutions

• Non-porous, easy-to-clean

• Heat resistant to 536° F

• Extremely hygienic, does not absorb odors

or bacteria

CODE/STANDARDS COMPLIANCE

ANSI Z124.6-97

lAPMO/UPC listed

INCLUDED ACCESSORIES

3 Sink Grids
Walnut Cutting Board
Custom Stainless Steel Colander

□ White 221-069

□ Anthracite 221-071

□ Café Brown 222-695

□ Biscuit 221-070

□ Metallic Gray 221-068

MODEL 221-071 Shown

NDMINAL DIMENSIONS

OVERALL SIZE LEFT RIGHT LEFT RIGHT

48 X 20 Template provided with

DXF cutout templates available on our web site.

CUTOUT BOWL DEPTH DRAIN DIAMETER

9-1/2 9-1/2 3-1/2 3-1/2

approximate 1/8" reveal

WARRANTY

Blanco America’s SILGRANIT® Series sinks feature
a LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use.See our
complete warranty for details.

While Blanco America endeavcrs to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.

PRDDUCT SPECIFICATION

Undermount sink to be multi-level bowl design,
48" in length and 20" in front-to-back depth.
Sink to be made from Silgranit® hard composite
material. Sinkto feature two bowls with integrated
drainer. Sink to be Blanco (Check one)

□ Model 221 -068 □ Model 221 -069
□ Model 221 -070 □ Model 221 -071
□ Model 222-695

with left bowl depth of 9-1/2" and right bowl
depth of 9-1/2".

JOB INFORMATION

Job Name:______________

Contact:

Date Specified:

Specifier:

________

Contractor:

BLANCO AMERICA

800.451.5782

www.blancoamerica.com

© 2008 BLANCO AMERICA
06/08 SPEC-003
