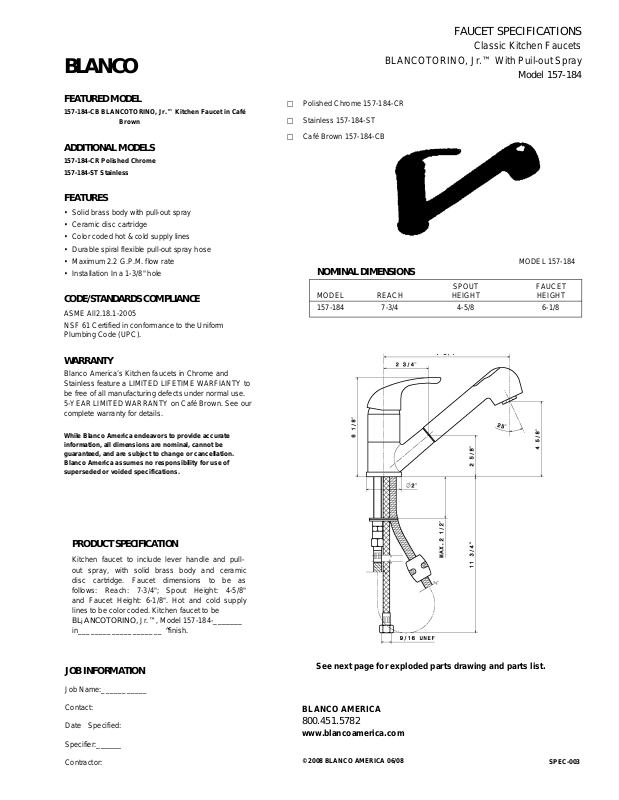

FAUCET SPECIFICATIONS
Classic Kitchen Faucets
BLANCOTORINO, Jr.™ With Puil-out Spray
Model 157-184
FEATURED MODEL
157-184-CB BLANCOTORINO, Jr.™ Kitchen Faucet in Café
Brown
ADDITIONAL MODELS
157-184-CR Polished Chrome
157-184-ST Stainless
FEATURES
• Solid brass body with pull-out spray
• Ceramic disc cartridge
• Color coded hot & cold supply lines
• Durable spiral flexible pull-out spray hose
• Maximum 2.2 G.P.M. flow rate
• Installation In a 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASME All2.18.1-2005
NSF 61 Certified in conformance to the Uniform
Plumbing Code (UPC).
WARRANTY
Blanco America’s Kitchen faucets in Chrome and
Stainless feature a LIMITED LIFETIME WARFIANTY to
be free of all manufacturing defects under normal use.
5-YEAR LIMITED WARRANTY on Café Brown. See our
complete warranty for details.
□ Polished Chrome 157-184-CR
□ Stainless 157-184-ST
□ Café Brown 157-184-CB
MODEL 157-184
NOMINAL DIMENSIONS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-184 7-3/4 4-5/8 6-1/8
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Kitchen faucet to include lever handle and pull
out spray, with solid brass body and ceramic
disc cartridge. Faucet dimensions to be as
follows: Reach: 7-3/4"; Spout Height: 4-5/8"
and Faucet Height: 6-1/8". Hot and cold supply
lines to be color coded. Kitchen faucet to be
BLjANCOTORINO, Jr.™, Model 157-184in
____________________
^finish.
_______
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
___________
______
See next page for exploded parts drawing and parts list.
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA 06/08
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Classic Kitchen Faucets
BLANCOTORINO, Jr.™ With Pull-out Spray
BLANCOTORINO, Jr.™ MODEL 157-184
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
NUM. PART# DESCRIPTION
1 16339 LEVER
1.1 16309 SCREW-i-CAP FOR LEVER
2 16319 LOCK NUT COVER
3 16317 CARTRIDGE LOCK NUT
4 16318 CARTRIDGE
5 13202 BUSH
6 16323 SPRAY HEAD
7 13204 PLASTIC RINGS FOR SPOUT
8 15120 SPRAY FLEXI-HOSE
9 10987 0-RING
10 13205 BASE
11 12351 MOUNTING SET
12 15052 SPRAY FLEXI-HOSE
13 15710 NO-RETURN VALVE
14 11960 WEIGHT
15 15051 FLEXI-HOSES
© 2008 BLANCO AMERICA 06/08
SPEC-003
