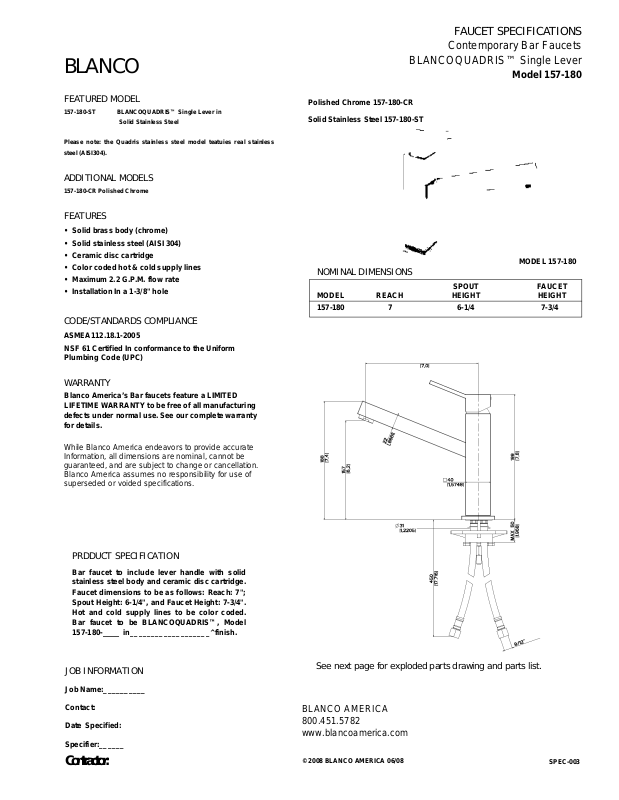

FAUCET SPECIFICATIONS
Contemporary Bar Faucets
BLANCOQUADRIS™ Single Lever
Model 157-180
FEATURED MODEL
157-180-ST BLANCOQUADRIS™ Single Lever in
Solid Stainless Steel
Please note: the Quadris stainless steel model teatuies real stainless
steel (AISI304).
ADDITIONAL MODELS
157-180-CR Polished Chrome
FEATURES
• Solid brass body (chrome)
• Solid stainless steel (AISI 304)
• Ceramic disc cartridge
• Color coded hot & cold supply lines
• Maximum 2.2 G.P.M. flow rate
• Installation In a 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
NSF 61 Certified In conformance to the Uniform
Plumbing Code (UPC)
WARRANTY
Blanco America’s Bar faucets feature a LIMITED
LIFETIME WARRANTY to be free of all manufacturing
defects under normal use. See our complete warranty
for details.
Polished Chrome 157-180-CR
Solid Stainless Steel 157-180-ST
MODEL 157-180
NOMINAL DIMENSIONS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-180 7 6-1/4 7-3/4
While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRDDUCT SPECIFICATION
Bar faucet to include lever handle with solid
stainless steel body and ceramic disc cartridge.
Faucet dimensions to be as follows: Reach: 7";
Spout Height: 6-1/4", and Faucet Height: 7-3/4".
Hot and cold supply lines to be color coded.
Bar faucet to be BLANCOQUADRIS™, Model
157-180-
____
in___________________^finish.
JOB INFORMATION
Job Name:
Contact:
Date Specified:
Specifier:
__________
______
Contractor:
See next page for exploded parts drawing and parts list.
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA 06/08
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Contemporary Bar Faucets
BLANCOQUADRIS™ Single Lever
BUNCOQUADRIS™ SINGLE LEVER MODEL 157-180
NUM. PART# DESCRIPTION
1 500350 GRUB SCREW
2 500129 GRUB SCREW
3 410146 FIXING SPACER
4 650287 CARTRIDGE
5 105186 INNER QUADRIS SEAT
6 105190 CHR QUADRIS OUTER BODY
7 162052 CHR BAR FAUCET SPOUT
8 400536 HOSTAFORM RING
9 400610 O-RING
10 400611 LIBS O-RING
11 400634 O-RING
12 500707 PIN
13 500928 BRASS SPOUT UNION
14 515274 CARTRIDGE NUT
15 515601 CHROME CARTRIDGE COVER
16 515603 BASE RING
17 515606 SS FAUCET BASE
18 531099 CHROME QUADRIS LEVER
19 604310 MALE AERATOR
20 603986 FIXING KIT
21 670269 SS BRAIDED FLEX HOSE RED
22 670270 SS BRAIDED FLEX HOSE BLUE
23 410544 CHROME ABS COVER
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
© 2008 BLANCO AMERICA 06/08
SPEC-003
