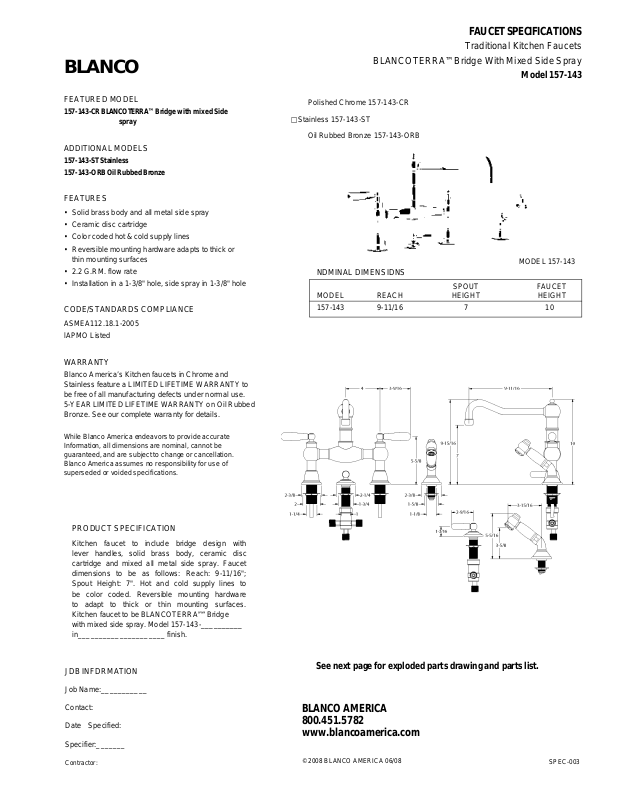

Blanco 157-143 User Manual
BLANCO
FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOTERRA™ Bridge With Mixed Side Spray
Model 157-143
FEATURED MODEL
157-143-CR BLANCOTERRA™ Bridge with mixed Side
spray
ADDITIONAL MODELS
157-143-ST Stainless
157-143-ORB Oil Rubbed Bronze
FEATURES
• Solid brass body and all metal side spray
• Ceramic disc cartridge
• Color coded hot & cold supply lines
• Reversible mounting hardware adapts to thick or
thin mounting surfaces
• 2.2 G.RM. flow rate
• Installation in a 1-3/8" hole, side spray in 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
lAPMO Listed
WARRANTY
Blanco America’s Kitchen faucets in Chrome and
Stainless feature a LIMITED LIFETIME WARRANTY to
be free of all manufacturing defects under normal use.
5-YEAR LIMITED LIFETIME WARRANTY on Oil Rubbed
Bronze. See our complete warranty for details.
Polished Chrome 157-143-CR
□ Stainless 157-143-ST
Oil Rubbed Bronze 157-143-ORB
MODEL 157-143
NDMINAL DIMENSIDNS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-143 9-11/16 7 10
While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Kitchen faucet to include bridge design with
lever handles, solid brass body, ceramic disc
cartridge and mixed all metal side spray. Faucet
dimensions to be as follows: Reach: 9-11/16";
Spout Height: 7". Hot and cold supply lines to
be color coded. Reversible mounting hardware
to adapt to thick or thin mounting surfaces.
Kitchen faucet to be BLANCOTERRA'’'“ Bridge
with mixed side spray. Model 157-143in
_____________________
finish.
__________
JDB INFDRMATION
Job Name:
Contact:
Date Specified:
Specifier:_______
Contractor:
___________
See next page for exploded parts drawing and parts list.
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA 06/08
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOTERRA™ Bridge With Mixed Side Spray
BUNCOTERRA™ BRIDGE
MODEL 157-143
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
NUM. PART# DESCRIPTION
1 02057 SIDE SPRAY CONTROL
2 02236 CARTRIDGE HOT
3 02237 CARTRIDGE COLD
4 14468 AERATOR
5 19697 AERATOR HOUSING
6 19748 CAP, 0-RING & SCREW
7 19750 LEVER
8 20083 NUT
g 20190 FLEX HOSE
10 91390 RUBBER WASHER
11 91794 0-RING
12 20076 SEAL
13 20077 NOZZLE
14 20078 CAP
15 91922 0-RING, SEAL
16 91923 0-RING, CAP
17 96007 FLEX HOSE
5
2008 BLANCO AMERICA 06/08
SPEC-003
