Blanco 157-142 User Manual
BLANCO

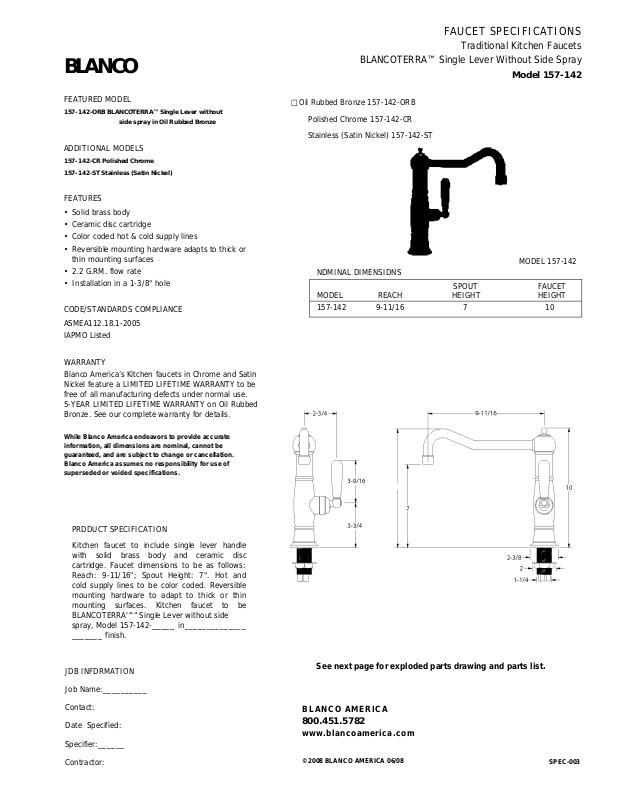

FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOTERRA™ Single Lever Without Side Spray
Model 157-142
FEATURED MODEL
157-142-ORB BLANCOTERRA™ Single Lever without
side spray in Oil Rubbed Bronze
ADDITIONAL MODELS
157-142-CR Polished Chrome
157-142-ST Stainless (Satin Nickel)
FEATURES
• Solid brass body
• Ceramic disc cartridge
• Color coded hot & cold supply lines
• Reversible mounting hardware adapts to thick or
thin mounting surfaces
• 2.2 G.RM. flow rate
• Installation in a 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
lAPMO Listed
WARRANTY
Blanco America’s Kitchen faucets in Chrome and Satin
Nickel feature a LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
5-YEAR LIMITED LIFETIME WARRANTY on Oil Rubbed
Bronze. See our complete warranty for details.
□ Oil Rubbed Bronze 157-142-ORB
Polished Chrome 157-142-CR
Stainless (Satin Nickel) 157-142-ST
MODEL 157-142
NDMINAL DIMENSIDNS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-142 9-11/16 7 10
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRDDUCT SPECIFICATION
Kitchen faucet to include single lever handle
with solid brass body and ceramic disc
cartridge. Faucet dimensions to be as follows:
Reach: 9-11/16"; Spout Height: 7". Hot and
cold supply lines to be color coded. Reversible
mounting hardware to adapt to thick or thin
mounting surfaces. Kitchen faucet to be
BLANCOTERRA'^“ Single Lever without side
spray, Model 157-142_______
JDB INFDRMATION
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
finish.
__________
______
_____
in______________
See next page for exploded parts drawing and parts list.
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2008 BLANCO AMERICA 06/08
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOTERRA™ Single Lever Without Side Spray
BLANCOTERRA™ SINGLE LEVER MODEL 157-142
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
NUM. PART# DESCRIPTION
1 01257 SI DESPRAY
2 02054 CARTRIDGE
3 14468
4 19697
5 19748 SCREW, 0-RING & CAP
6 19750 LEVER
7 20027 CARTRIDGE NUT
8 20083 NUT
g 20087 FLEX HOSE
10 20183 CARTRIDGE RETAINER
11 20190 FLEX HOSE
12 91390 RUBBER WASHER
13 91794
AERATOR
AERATOR HOUSING
0-RING
5 2008 BLANCO AMERICA 06/08
SPEC-003
