Blanco 157-134 User Manual

BLANCO

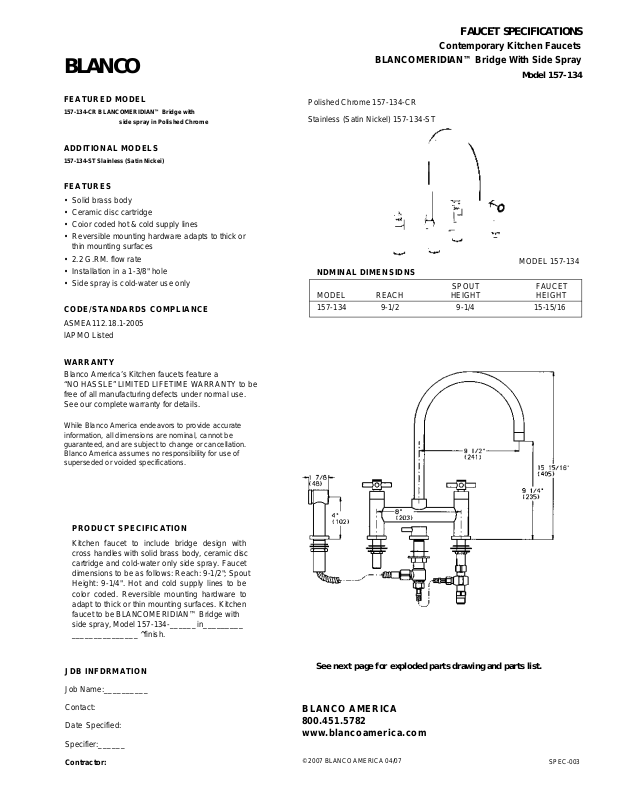

FAUCET SPECIFICATIONS

Contemporary Kitchen Faucets

BLANCOMERIDIAN™ Bridge With Side Spray

Model 157-134

FEATURED MODEL

157-134-CR BLANCOMERIDIAN™ Bridge with

side spray in Polished Chrome

ADDITIONAL MODELS

157-134-ST Slainless (Satin Nickei)

FEATURES

• Solid brass body

• Ceramic disc cartridge

• Coior coded hot & cold supply lines

• Reversible mounting hardware adapts to thick or thin mounting surfaces

• 2.2 G.RM. flow rate

• Installation in a 1-3/8" hole

• Side spray is cold-water use only

CODE/STANDARDS COMPLIANCE

ASMEA112.18.1-2005 lAPMO Listed

WARRANTY

Blanco America’s Kitchen faucets feature a “NO HASSLE” LIMITED LIFETIME WARRANTY to be free of all manufacturing defects under normal use. See our complete warranty for details.

Polished Chrome 157-134-CR Stainless (Satin Nickel) 157-134-ST

MODEL 157-134

NDMINAL DIMENSIDNS

SPOUT FAUCET

MODEL REACH HEIGHT HEIGHT 157-134 9-1/2 9-1/4 15-15/16

While Blanco America endeavors to provide accurate information, all dimensions are nominal, cannot be guaranteed, and are subject to change or cancellation. Blanco America assumes no responsibility for use of superseded or voided specifications.

PRODUCT SPECIFICATION

Kitchen faucet to include bridge design with cross handles with solid brass body, ceramic disc cartridge and cold-water only side spray. Faucet dimensions to be as follows: Reach: 9-1/2"; Spout Height: 9-1/4". Hot and cold supply lines to be color coded. Reversible mounting hardware to adapt to thick or thin mounting surfaces. Kitchen faucet to be BLANCOMERIDIAN™ Bridge with side spray, Model 157-134_______________

JDB INFDRMATION

Job Name: Contact: Date Specified: Specifier:

Contractor:

__________

______

______in_________

^finish.

See next page for exploded parts drawing and parts list.

BLANCO AMERICA

800.451.5782 www.blancoamerica.com

SPEC-003

BLANCO

FAUCET SPECIFICATIONS

Contemporary Kitchen Faucets

BLANCOMERIDIAN™ Bridge With Side Spray

BLANCOMERIDIAN™ BRIDGE MODEL 157-134

NUM. PART# DESCRIPTION 1

4361 2 4362 BASE 3A

315 3B 2614 HEAD WORK RIGHT 4

4358 PLUG

3.53X4.34

5 6 4363 7

1645

BODY

HEAD WORK LEFT

0-RING COVER LEVER

DESCRIPTION SCREW

RED RING BLUE RING BUTTON SPOUT ASSY

2.62X13.1

4349

4348

3665

23 1028 24

18.5X11.9X1.5 FIBERWASHER 4347 NIPPLE

25 26 13.7X10X1.5 FIBERWASHER 27

1-4355

0-RING TEFLON RING SCREW

AERATOR SET

MOUNTING NUT ASSY

CONNECTOR ASSY

HANDLE ASSY

SCREW

BASE

NUT COLD WATER SIDE SPRAY VALVE

HOSE

COLD WATER SIDE SPRAY
