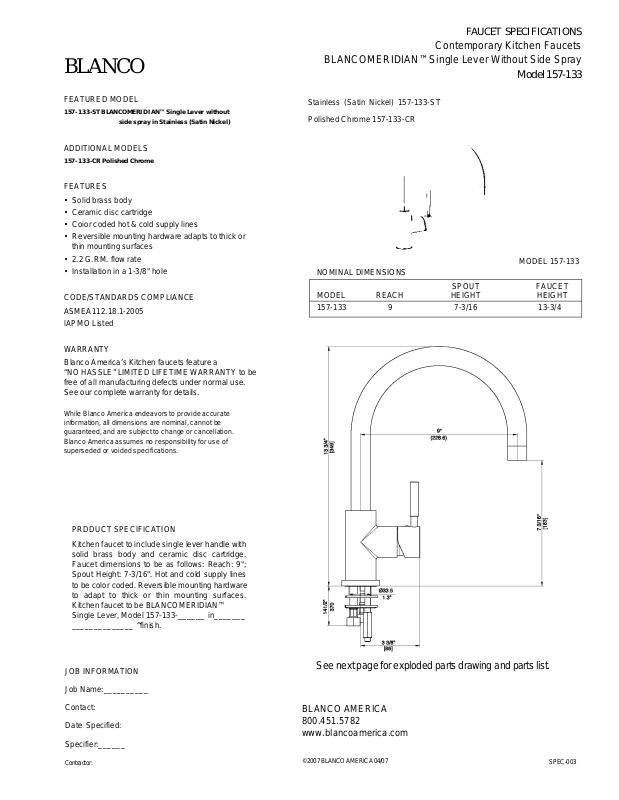

FAUCET SPECIFICATIONS
Contemporary Kitchen Faucets
BLANCOMERIDIAN™ Single Lever Without Side Spray
Model 157-133
FEATURED MODEL
157-133-ST BLANCOMERIDIAN™ Single Lever without
side spray in Stainiess (Satin Nickel)
ADDITIONAL MODELS
157-133-CR Polished Chrome
FEATURES
• Solid brass body
• Ceramic disc cartridge
• Coior coded hot & cold supply lines
• Reversible mounting hardware adapts to thick or
thin mounting surfaces
• 2.2 G.RM. flow rate
• Installation in a 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
lAPMO Listed
WARRANTY
Blanco America’s Kitchen faucets feature a
“NO HASSLE” LIMITED LIFETIME WARRANTY to be
free of all manufacturing defects under normal use.
See our complete warranty for details.
Stainless (Satin Nickel) 157-133-ST
Polished Chrome 157-133-CR
MODEL 157-133
NOMINAL DIMENSIONS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-133 9 7-3/16 13-3/4
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRDDUCT SPECIFICATION
Kitchen faucet to include single lever handle with
solid brass body and ceramic disc cartridge.
Faucet dimensions to be as follows: Reach: 9";
Spout Height: 7-3/16". Hot and cold supply lines
to be color coded. Reversible mounting hardware
to adapt to thick or thin mounting surfaces.
Kitchen faucet to be BLANCOMERIDIAN™
Single Lever, Model 157-133______________
JOB INFORMATION
Job Name:
__________
^finish.
______in_______
See next page for exploded parts drawing and parts list.
Contact:
Date Specified:
Specifier:
Contractor:
______
BLANCO AMERICA
800.451.5782
www.blancoamerica.com
© 2007 BLANCO AMERICA 04/07
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Contemporary Kitchen Faucets
BLANCOMERIDIAN™ Single Lever Without Side Spray
BUNCOMERIDIAN™ SINGLE LEVER
MODEL 157-133
10
3 2 1
13
-----
{
NUM. PART# DESCRIPTION
1 4284 LEVER
2
1270
3 2058
4
3513
5 3469
6 3909
7
4283
8 1-2105/3 MOUNTING NUT ASSY
g 4353
10 4291 AERATOR
11
4059
12
4056
13 01102621310 O’RING 2.62X13.1
14
2350
BUTTON
SCREW
CAP
NUT
CARTRIDGE
BODY
SPOUT
TEFLON RING
BASE
INLET HOSES
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
© 2007 BLANCO AMERICA 04/07
SPEC-003
