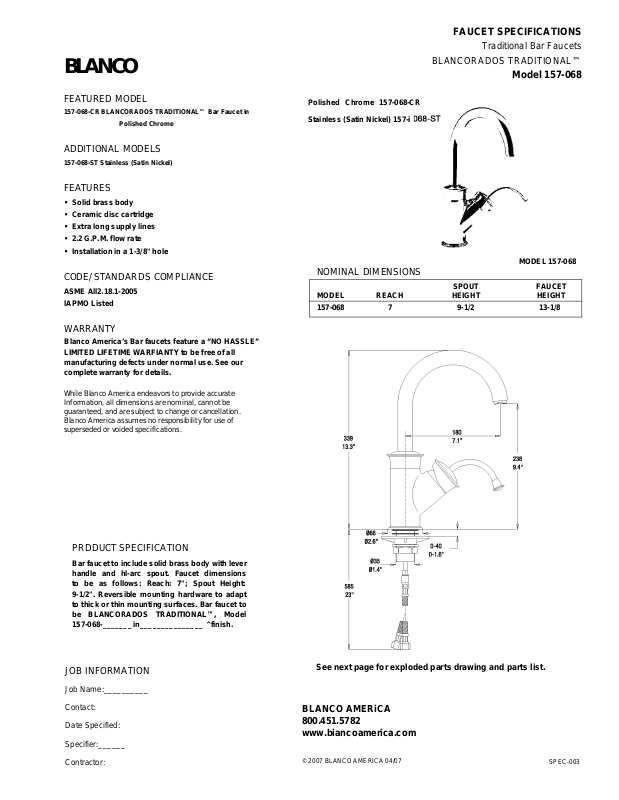

FAUCET SPECIFICATIONS
Traditional Bar Faucets
BLANCORADOS TRADITIONAL™
Model 157-068
FEATURED MODEL
157-068-CR BLANCORADOS TRADITIONAL™ Bar Faucet in
Polished Chrome
ADDITIONAL MODELS
157-068-ST Stainless (Satin Nickel)
FEATURES
• Solid brass body
• Ceramic disc cartridge
• Extra long supply lines
• 2.2 G.P.M. flow rate
• Installation in a 1-3/8" hole
CODE/STANDARDS COMPLIANCE
ASME All2.18.1-2005
lAPMO Listed
WARRANTY
Blanco America’s Bar faucets feature a “NO HASSLE”
LIMITED LIFETIME WARFIANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
Polished Chrome 157-068-CR
Stainless (Satin Nickel) 157-i
MODEL 157-068
NOMINAL DIMENSIONS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-068 7 9-1/2 13-1/8
While Blanco America endeavors to provide accurate
Information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRDDUCT SPECIFICATION
Bar faucet to include solid brass body with lever
handle and hl-arc spout. Faucet dimensions
to be as follows: Reach: 7"; Spout Height:
9-1/2". Reversible mounting hardware to adapt
to thick or thin mounting surfaces. Bar faucet to
be BLANCORADOS TRADITIONAL™, Model
157-068-
_______in_______________
^finish.
JOB INFORMATION
See next page for exploded parts drawing and parts list.
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:
__________
______
BLANCO AMERiCA
800.451.5782
www.biancoamerica.com
© 2007 BLANCO AMERICA 04/07
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Traditional Bar Faucets
BLANCORADOS TRADITIONAL™
9c
BUNCORADOS TRADITIONAL™
8e 8d 8c 8b 8a
NUM.
1 3965 HANDLE BASE
1A 2058 SCREW
1B 1270 BUTTON
1C 3966
DOC.
PART# DESCRIPTION
STICK
MODEL 157-068
Id
NUM.
ID 3956 KNOB
2A 3303 CAP
2B 3311 NUT
2C 2809
3A 3314 INSERT
3B 2.62x39.34
4 3315 BODY
4A 467 SCREW
4B 3967 BASE
5
6A
6B
6C 2.62x18.72 O’RING
6D 2623 TEFLON RING
7 1-676
8 1-3333 MOUNTING NUT ASSY
8A 3304
8B
8C 48x38x2 RUBBER WASHER
8D 3109 PLASTIC BASE
8E 2258 METALWASHER
8F
9A
9B 1.78x7.94
9C 2350 HOSE
DOC.
PART# DESCRIPTION
CARTRIDGE
O’RING
3307 TEFLON RING
3310
3969
3.53x42.86 O’RING
3333
3326
SPOUT
CAP
AERATOR SET
MOUNTING SLEEVE
NUT
EXTENTION OUTLET
O’RING
BLANCO AMERICA
800.451.5782 • www.blancoamerica.com
© 2007 BLANCO AMERICA 04/07
SPEC-003
