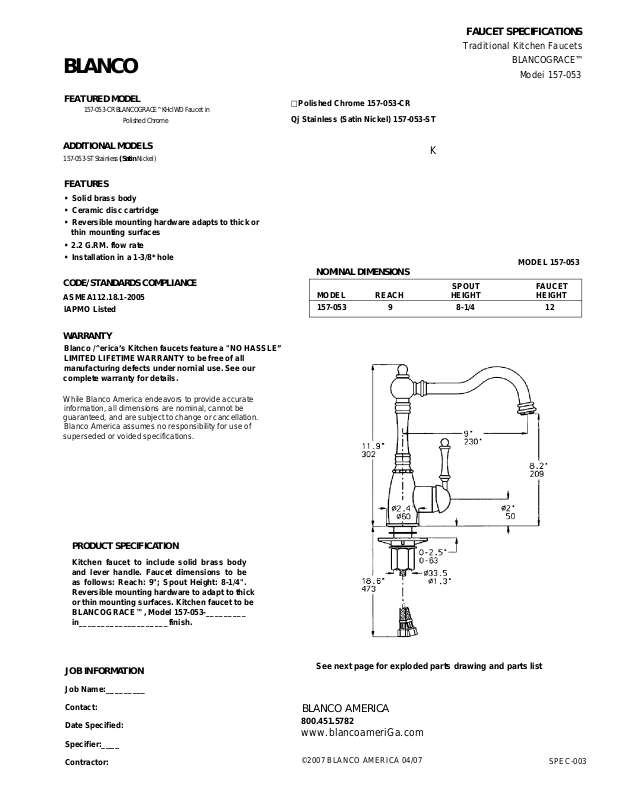

FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOGRACE™
Modei 157-053
FEATURED MODEL
157-053-CR BLANCOGRACE^ KHclWD Faucet in
Polished Chrome
ADDITIONAL MODELS
157-053-ST Stainless (Satin Nickel)
FEATURES
• Solid brass body
• Ceramic disc cartridge
• Reversible mounting hardware adapts to thick or
thin mounting surfaces
• 2.2 G.RM. flow rate
• Installation in a 1-3/8* hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
lAPMO Listed
WARRANTY
Blanco /^erica’s Kitchen faucets feature a "NO HASSLE”
LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under nornial use. See our
complete warranty for details.
□ Polished Chrome 157-053-CR
Qj Stainless (Satin Nickel) 157-053-ST
K
MODEL 157-053
NOMINAL DIMENSIONS
SPOUT FAUCET
MODEL REACH HEIGHT HEIGHT
157-053 9 8-1/4 12
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Kitchen faucet to include solid brass body
and lever handle. Faucet dimensions to be
as follows: Reach: 9"; Spout Height: 8-1/4".
Reversible mounting hardware to adapt to thick
or thin mounting surfaces. Kitchen faucet to be
BLANCOGRACE™, Model 157-053in____________________finish.
_________
JOB INFORMATION
Job Name:
_________
See next page for exploded parts drawing and parts list
Contact:
Date Specified:
Specifier:
Contractor:
____
BLANCO AMERICA
800.451.5782
www.blancoameriGa.com
©2007 BLANCO AMERICA 04/07
SPEC-003
BLANCO
FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOGRACE™
BLANCOGRACE™ MODEL 157-053
2c 2b 2a 1b
MD
9d 9c 9b 9a
11a
u
1c
NUM. PART# DESCRIPTION
1A 3550 HANDLE
1B 3586 LEVER
1C 3549
2A 1303 CAP
2B 1304 NUT
2C 2809
3A 3551 BODY
3B 3552 BASE
3C 2453
4A 3565 STEM
4B 2.62X21.89 0-RING
5A
3556
5B 3785 TEFLON RING
5C 2.62X10.77 0-RING
5D 2.5X9.4
6 3557 SPOUT HOUSING
7A 3560 DECORATIVE KNOB
7B
3206
8A 3554 SPOUT
8B 3555 AERATOR BASE
9 1-2359
9A 48X34X2 RUBBER WASHER
. 9B
3109 PLASTIC BASE
9C 2258
9D 2359 NUT
10 AERATOR SET
10A
683
10B 680 SCREEN
IOC 682 AERATOR RING
11A
2350
SCREW
CARTRIDGE
DIVERTER
GROOVED SLEEVE
O-RING
SCREW
MOUNTING NUT ASSY
METAL WASHER
RUBBER WASHER
HOSE
BLANCO AMERICA
800.451.5782 • www.blancoamerica.coni
© 2007 BLANCO AMERICA 04/07
SPEC-003
