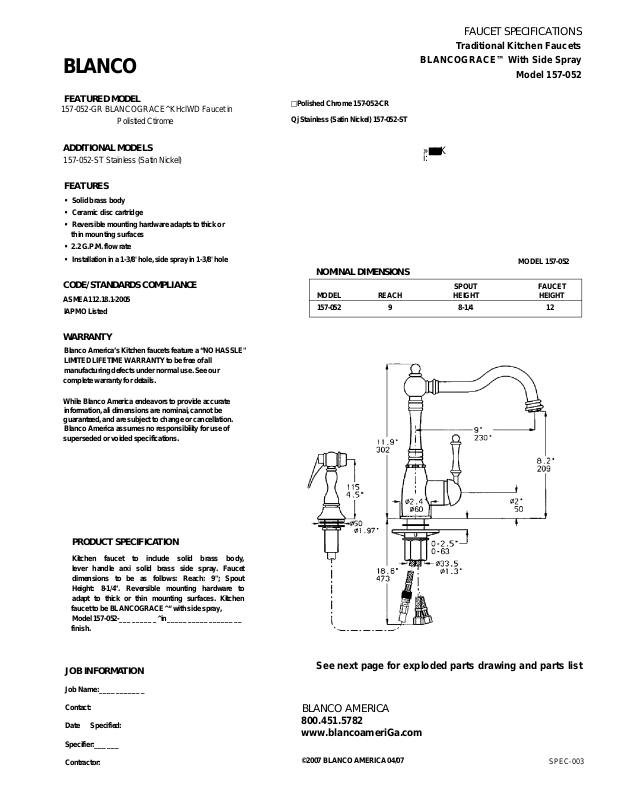

FAUCET SPECIFICATIONS
Traditional Kitchen Faucets
BLANCOGRACE™ With Side Spray
Model 157-052
FEATURED MODEL
157-052-GR BLANCOGRACE^ KHclWD Faucet in
Polistied Ctirome
ADDITIONAL MODELS
157-052-ST Stainless (Satin Nickel)
FEATURES
• Solid brass body
• Ceramic disc cartridge
• Reversible mounting hardware adapts to thick or
thin mounting surfaces
• 2.2 G.P.M. flow rate
• Installation in a 1-3/8' hole, side spray in 1-3/8' hole
CODE/STANDARDS COMPLIANCE
ASMEA112.18.1-2005
lAPMO Listed
WARRANTY
Blanco America’s Kitchen faucets feature a “NO HASSLE"
LIMITED LIFETIME WARRANTY to be free of all
manufacturing defects under normal use. See our
complete warranty for details.
□ Polished Chrome 157-052-CR
Qj Stainless (Satin Nickel) 157-052-ST
»■■K
i:
NOMINAL DIMENSIONS
MODEL REACH HEIGHT HEIGHT
157-052 9 8-1/4 12
SPOUT FAUCET
MODEL 157-052
While Blanco America endeavors to provide accurate
information, ali dimensions are nominai, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibiiity for use of
superseded or voided specifications.
PRODUCT SPECIFICATION
Kitchen faucet to include solid brass body,
lever handle arxi solid brass side spray. Faucet
dimensions to be as follows: Reach: 9"; Spout
Height: 8-1/4". Reversible mounting hardware to
adapt to thick or thin mounting surfaces. Kitchen
faucet to be BLANCOGRACE^“ with side spray,
Model 157-052-_________^in
finish.
__________________
JOB INFORMATION
Job Name:
___________
See next page for exploded parts drawing and parts list
Contact:
Date Specified:
Specifier:
______
Contractor:
BLANCO AMERICA
800.451.5782
www.blancoameriGa.com
©2007 BLANCO AMERICA 04/07
SPEC-003
BLANCO
7b
BLANCOGRACE™ With Side Spray
BLANCOGRACE™ With Side Spray MODEL 157-052
NUM. PART# DESCRIPTION
1A 3550 HANDLE
1B 3586 LEVER
1C 3549 SCREW
2A 1303 CAP
2B 1304 NUT
2C 2809 CARTRIDGE
3A 3551 BODY
3B 3552 BASE
3C 2453 DIVERTER
4A 3565 STEM
4B 2.62X21.89 0-RING
5A 3556 GROOVED SLEEVE
5B 3785 TEFLON RING
5C
5D 2.5X9.4 O-RING
6 3557 SPOUT HOUSING
7A 3560 DECORATIVE KNOB
8A 3554 SPOUT
9A 48X34X2 RUBBER WASHER
9B 3109
9C 2258 METAL WASHER
9D 2359 NUT
2.62X10.77 0-RING
7B 3206 SCREW
8B 3555
9 1-2359 MOUNTING NUT ASSY
10 AERATOR SET
10A 683 RUBBER WASHER
10B 680 SCREEN
682
IOC
11A 2350 HOSE
11B 2360 SUPPLY TUBE
13.7X10X1.5 FIBER WASHER
lie
12 1-3170 SIDE SPRAY
