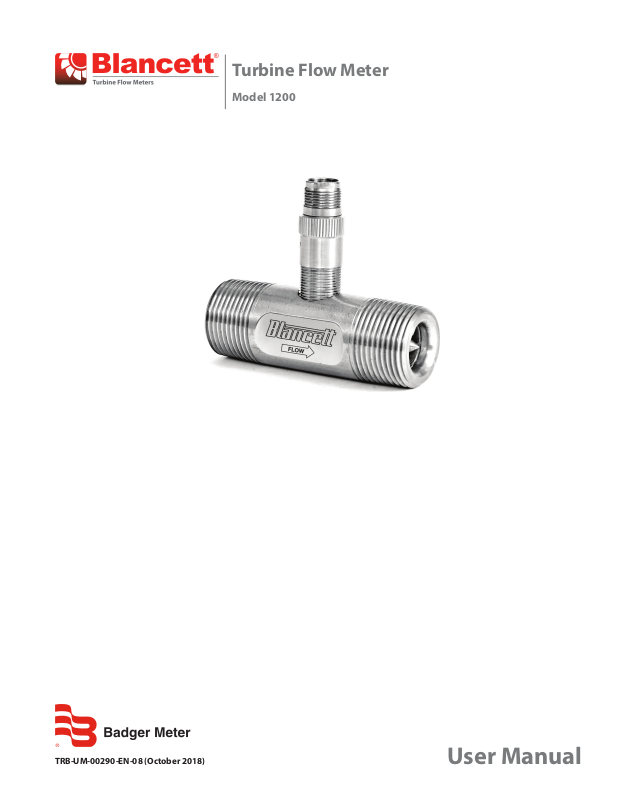

Page 1

Turbine Flow Meter

Model 1200

TRB-UM-00290-EN-08 (October 2018)

User Manual

Page 2

Turbine Flow Meter, Model 1200

CONTENTS

Scope of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpacking and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Terminology and Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Operational Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Part Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Meter with pickups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Meter only (no pickups) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Troubleshooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Page ii October 2018TRB-UM-00290-EN-08

Page 3

Scope of This Manual

SCOPE OF THIS MANUAL

This manual is intended to help you get the Model 1200 turbine flow meter up and running quickly.

IMPORTANT

Read this manual carefully before attempting any installation or operation. Keep the manual accessible for future reference.

UNPACKING AND INSPECTION

Upon opening the shipping container, visually inspect the product and applicable accessories for any physical damage such as scratches, loose or broken parts, or any other sign of damage that may have occurred during shipment.

OTE:N If damage is found, request an inspection by the carrier’s agent within 48 hours of delivery and file a claim with the

carrier. A claim for equipment damage in transit is the sole responsibility of the purchaser.

SAFETY

Terminology and Symbols

Indicates a hazardous situation, which, if not avoided, is estimated to be capable of causing death or serious personal injury.

Indicates a hazardous situation, which, if not avoided, could result in severe personal injury or death.

Indicates a hazardous situation, which, if not avoided, is estimated to be capable of causing minor or moderate personal injury or damage to property.

Considerations

The installation of the Model 1200 flow meter must comply with all applicable federal, state, and local rules, regulations, and codes.

EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2.

AVERTISSMENT

RISQUE D’EXPLOSION - LA SUBSTITUTION DE COMPOSANTS PEUT RENDRE CEMATÉRIEL INACCCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVISION 2.

DO NOT CONNECT OR DISCONNECT EITHER POWER OR OUTPUTS UNLESS THE AREA IS KNOWN TO BE NONHAZARDOUS.

AVERTISSMENT

RISQUE D’EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUSTENSION, À MOINS QU’LL NE S’AGISSE D’UN EMPLACEMENT NON DANGEREUX.

IMPORTANT

Not following instructions properly may impair safety of equipment and/or personnel.

Page 3 October 2018 TRB-UM-00290-EN-08

Page 4

Introduction

INTRODUCTION

The Blancett Model 1200 in-line turbine flow meter was engineered for applications in highly corrosive environments. Developed for use in petrochemical and other process industries with liquid chemical flows, the Model 1200 turbine meter provides accuracy and durability in aggressive industrial environments. The meter features a 303 stainless steel body and internal wetted parts, with two type-440 stainless steel ball bearings.

OPERATING PRINCIPLE

Fluid entering the meter passes through the inlet flow conditioner, which reduces its turbulent flow pattern and improves the fluid’s velocity profile. The fluid then passes through the turbine, causing the turbine to rotate at a speed proportional to the fluid velocity. As each turbine blade passes through the magnetic field, the blade generates an AC voltage pulse in the pickup coil at the base of the magnetic pickup (see Figure 1). These pulses produce an output frequency proportional to the volumetric flow through the meter. The output frequency represents flow rate and/or totalization of fluid passing through the turbine flow meter.

Magnetic Pickup

Other Frequency

Output Device

Output

Turbine Rotor

Figure 1: Schematic illustration of electric signal generated by rotor movement

Signal

Page 4 October 2018 TRB-UM-00290-EN-08

Page 5

Installation

INSTALLATION

PRESSURE IN EXCESS OF ALLOWABLE RATING MAY CAUSE THE HOUSING TO BURST AND CAUSE SERIOUS PERSONAL INJURY.

1. Check the inside of the ow meter for any foreign material.

2. Check the turbine rotor to make sure it spins freely.

3. Check the uid lines and remove any debris.

4. Install the ow meter with the ow arrow, which is etched on the exterior of the meter body, pointing in the direction of uid ow.

5. Install the meter horizontally with the conduit adapter facing upward.

6. Thread a magnetic pickup into the conduit adapter. Tighten the pickup nger tight without forcing.

7. Secure with a lock nut if supplied.

8. Install conduit or other ttings suitable for the installation area onto the conduit adapter hub on the ow meter.

All Blancett Model 1200 turbine meters use stainless steel construction materials. Make sure that the operating fluid is compatible with these materials. Incompatible fluids can cause deterioration of internal components and reduce the accuracy of the meter.

The measured liquid should be free of any large particles that may inhibit rotation of the turbine blades. If particles are present, install a mesh strainer upstream before operating the flow meter. See Table 1 for strainer recommendations.

Part Number Size Strainer Mesh Clearance (in.)

B121-225 1/4 in. (6.35 mm) 60 0.0092

B121-250 1/2 in. (12.7 mm) 60 0.0092

B121-275 3/4 in. (19.05 mm) 60 0.0092

Table 1: Strainer recommendations

Install a bypass line to accommodate inspection and repair without interrupting flow. See Figure 2 on page 6. If a bypass line cannot be used, install all control valves or restrictions that may cause the liquid to flash downstream of the flow meter. Install air eliminators to make sure that the meter is not incorrectly measuring entrained air or gas.

STRIKING AN EMPTY METER WITH HIGH VELOCITY FLOW STREAM CAN CAUSE DAMAGE.

Install a minimum length of 10 pipe diameters of straight pipe on the upstream side, and 5 diameters on the downstream side of the flow meter. The piping should be the same size as the meter bore or threaded port size.

Do not install the flow meter or connection cable close to electric motors, transformers, sparking devices or high voltage lines. Do not place connecting cable in the same conduit with wires that furnish power for such devices. These devices can induce false signals in the flow meter coil or cable, causing the meter to read inaccurately.

If problems arise with the flow meter, see Troubleshooting Guide on page 9. Consult the factory with additional issues.

Page 5 October 2018 TRB-UM-00290-EN-08

Page 6

Installation

Isolation Valve

10 Pipe

Diameters

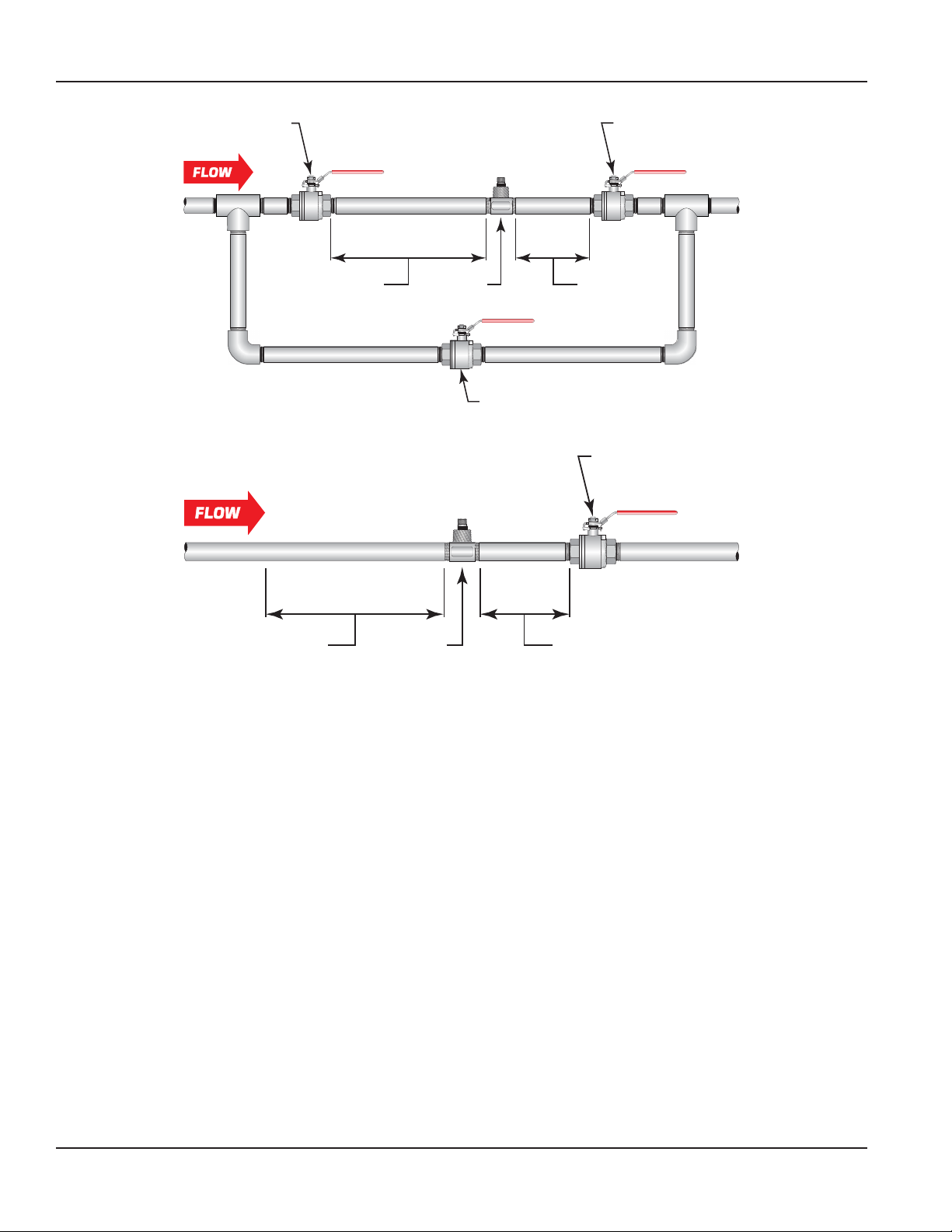

Figure 2: Meter installation using a bypass line

Turbine

Flow Meter

Bypass Valve

Isolation and

Flow Rate

Control Valve

5 Pipe

Diameters

Control Valve

10 Pipe

Diameters

Turbine

Flow Meter

Figure 3: Meter installation without using a bypass line

5 Pipe

Diameters

Page 6 October 2018 TRB-UM-00290-EN-08

Page 7

WIRING DIAGRAM

RF Preamplier

Part #222228

7...30V DC

Wiring Diagram

1 2 43 5

10V Pulse Output

RF Pickup

Part #111117

Cable Assembly

Part #120003

BLANCETT 817/920-9998 MODEL 1225T

S.N. XXXX

>>-------->

Illustration Using

Model 121-225 Meter

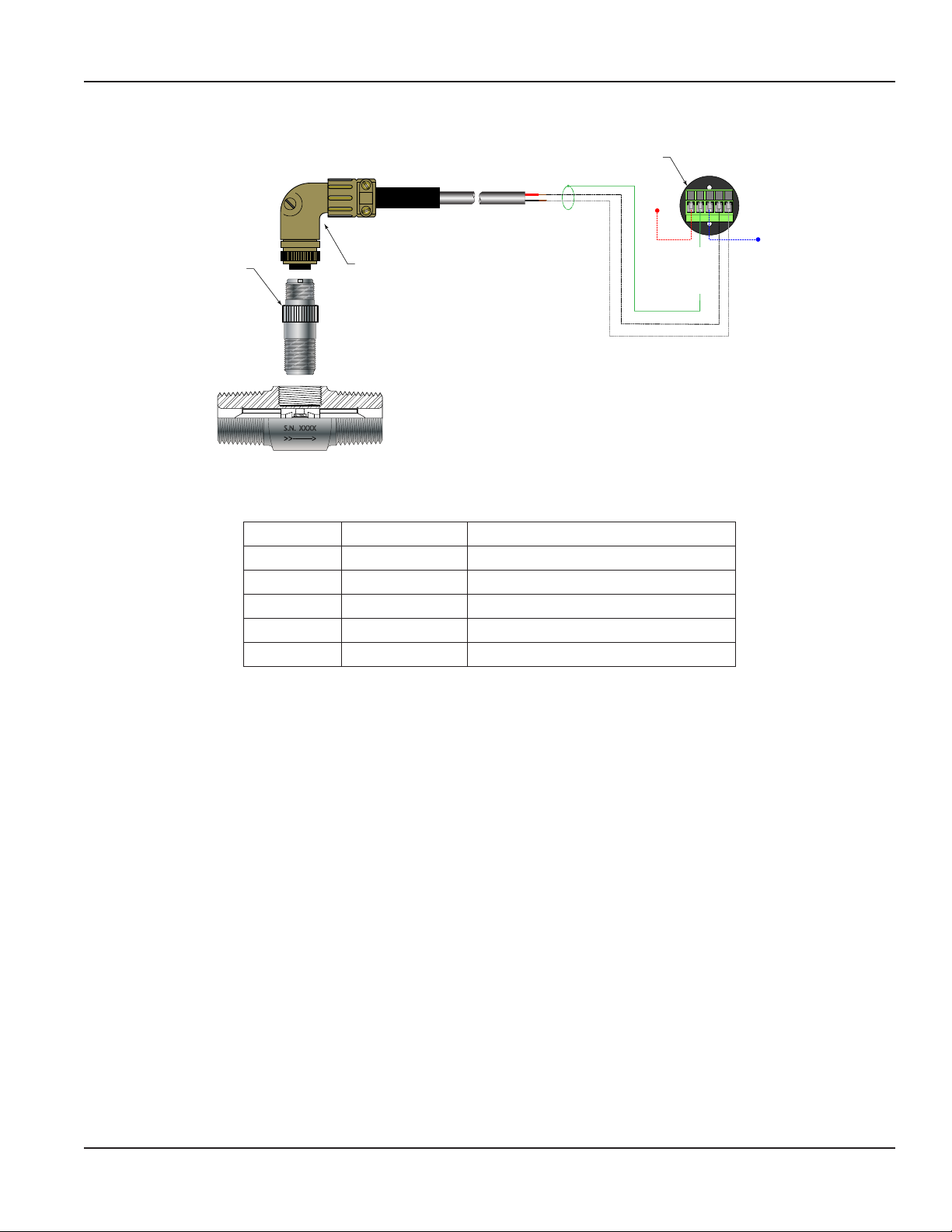

Figure 4: Wiring diagram with RF pickup, cable assembly and preamplifier

Terminal Description Notes

1 Power 7…30V DC

2 Common Power return

3 Output signal 10V Square wave

4 Input RF pickup (1 millihenry)

5 Input RF pickup (1 millihenry)

Green

Black

White

Common

Page 7 October 2018 TRB-UM-00290-EN-08

Page 8

Operational Startup

OPERATIONAL STARTUP

MAKE SURE TO SHUT OFF FLUID FLOW AND RELEASE THE PRESSURE IN THE LINE BEFORE ATTEMPTING TO INSTALL THE METER IN AN EXISTING SYSTEM.

1. After meter installation, close the isolation valves and open the bypass valve. Allow the liquid to ow through the bypass valve for sucient time to eliminate any air or gas in the ow line.

STRIKING AN EMPTY METER WITH HIGH VELOCITY FLOW STREAM CAN CAUSES DAMAGE.

2. Open the upstream isolating valve slowly to eliminate hydraulic shock while charging the meter with the liquid.

3. Open the valve to the fully open.

4. Open the downstream isolating valve to permit the meter to operate.

5. Close the bypass valve to a fully closed position.

6. Adjust the downstream valve to provide the required ow rate through the meter.

OTE:N The downstream valve may be used as a control valve.

PART NUMBER INFORMATION

Meter with pickups

Part Number Bore Size End Connections Max PSI

B121-225 1/4 in. 1/2 in. Male NPT 4000 0.25…2.5 (0.95…9.46) 60 29,000…33,000 — —

B121-250 1/2 in. 1/2 in. Female NPT 4000 0.75…7.5 (2.84…28.39) 60 8500…9500 — —

B121-275 3/4 in. 1 in. Male NPT 4000 2.5…25 (9.46…94.64) 60 2800…3000 — —

Flow Ranges

gpm (lpm)

Strainer

Mesh

Approx. K-factor

Pulses/Gal

Weight

Meter only (no pickups)

Part Number Bore Size End Connections Max PSI

B121227 1/4 in. 1/2 in. Male NPT 4000 0.25…2.5 (0.95…9.46) 60 29,000…33,000 — —

B121251 1/2 in. 1/2 in. Female NPT 4000 0.75…7.5 (2.84…28.39) 60 8500…9500 — —

B121276 3/4 in. 1 in. Male NPT 4000 2.5…25 (9.46…94.64) 60 2800…3000 — —

Flow Ranges

gpm (lpm)

Strainer

Mesh

Approx. K-factor

Pulses/Gal

Weight

End to End

Length

End to End

Length

Page 8 October 2018 TRB-UM-00290-EN-08

Page 9

TROUBLESHOOTING GUIDE

Issue Possible Cause Remedy

Troubleshooting Guide

Meter indicates higher than actual flow rate

Meter indicates lower than actual flow rate

Erratic system indication, meter alone works well

Indicator shows flow when shut off

No flow indication, full or partial open position

Erratic indication at low flow, good indication at high flow

No flow indication Faulty pickup Replace pickup, recalibrate as necessary

Indicates lower flow over entire range

Cavitation Debris on rotor support

Debris on rotor Worn bearing Viscosity higher than calibrated

Ground loop in shielding Ground shield one place only

Mechanical vibration causes rotor to oscillate without turning

Fluid shock, full flow into dry meter or impact caused bearing separation

Low instrument sensitivity; 10 mV rms turbine signal is being lowered by loading of electronics or instrumentation cannot sense low level signals

Bypass flow, leak

Increase back pressure Clean meter

Clean meter and add filter Replace meter Change temperature; change fluid; recalibrate meter

Isolate meter

New bearing required Move to location where meter is full of fluid on startup

Amplify signal

Eliminate bypass valves, leak Repair or replace faulty solenoid valves

Meter indicating high flow, upstream piping at meter smaller than meter bore

Opposite effects of above Viscosity lower than calibrated

Mass flow indication wrong Wrong fluid density (critical in gas) Check fluid, electronics

Erratic or wrong indication of flow

Does not repeat at low flows Repeats at high flow

Fluid jet impingement on rotor, critical in gas Change piping

Change temperature, change fluid or recalibrate meter

Loose pickup Tighten pickup

System resolution readability Increase resolution

Page 9 October 2018 TRB-UM-00290-EN-08

Page 10

Specications

SPECIFICATIONS

Body 303 stainless steel

Rotor CD4MCU stainless steel

Materials of Construction

Operating Temperature

Pressure Rating 4000 psi (276 bar) maximum

End Connection NPT male, NPT female

Turndown Ratio —

Accuracy ±1.0% of reading

Repeatability ±0.1%

Calibration MIL-PRF-7024E, Type II (NIST traceable calibration)

Pickup —

Certification —

RF Preamplifier

Power 7…30V DC

Distance Specification

Electrical Connection Terminal strip

Bearings Two (2) type-440 stainless steel ball bearings

Rotor Shaft 303 stainless steel

Rotor Support 303 stainless steel

Housing Epoxy encapsulated module

Meter –60…350° F (–51…1777° C)

Module –20…160° F (–7…71° C)

Pickup –150…325° F (–101…162° C)

Input Signal 1 millihenry carrier pickup

Output Signal 10V peak to peak square wave

50 ft maximum between pickup and RF preamplifier 1000 ft maximum between preamplifier and receiving unit

Page 10 October 2018 TRB-UM-00290-EN-08

Page 11

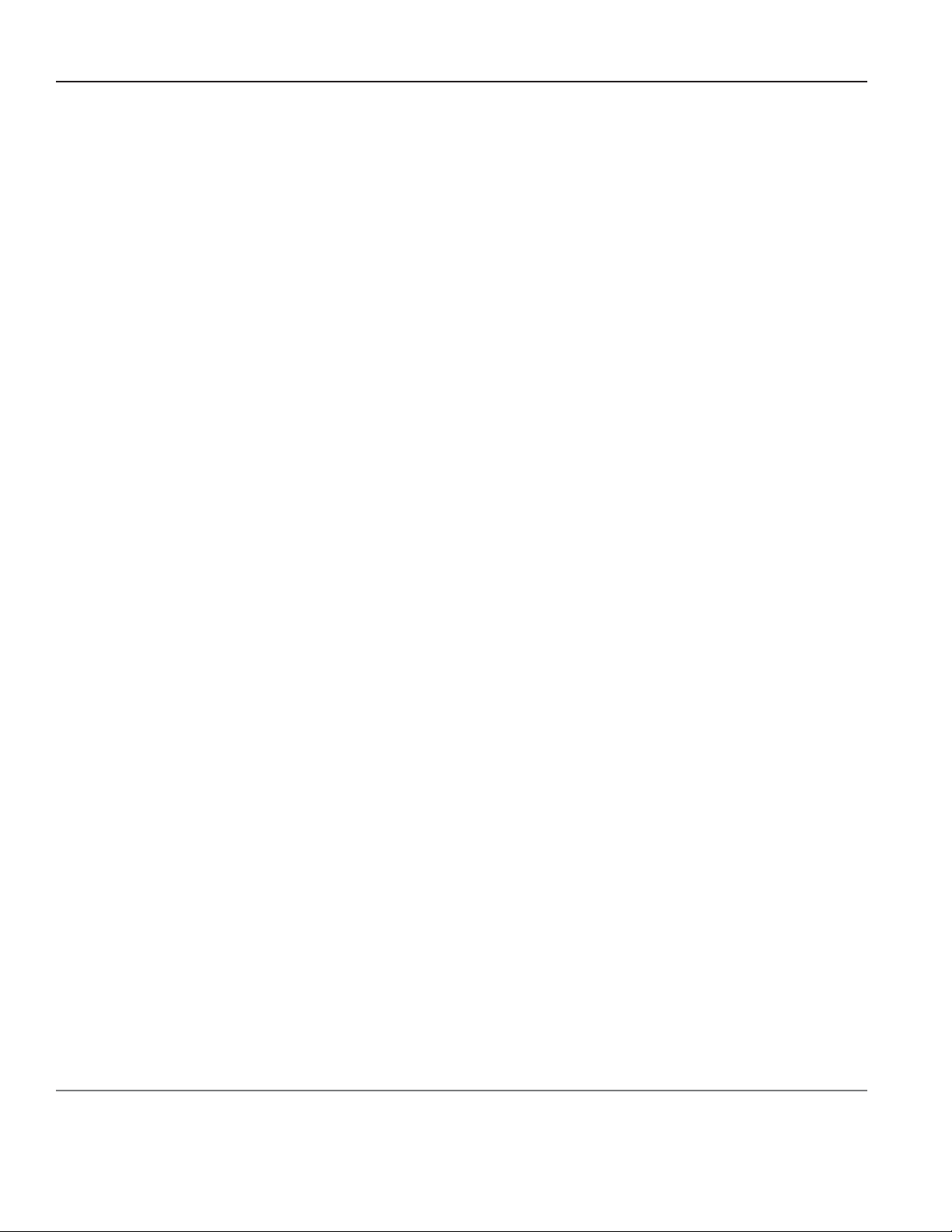

INTENTIONAL BLANK PAGE

Specications

Page 11 October 2018 TRB-UM-00290-EN-08
