TECHNICAL SPECIFICATIONS
Component
Speaker
Max power
120 W
Nominal power
60 W
Impedance
2 Ω
Freq. Response
60 Hz - 7 KHz
Sensitivity (2,83V/1m)
94,3 dB
Magnet
Ferrite
Magnet size Ø x h
80 x 17 mm 3,150‘’x 0,669‘’
Total driver displacement
0,3 l
0,011 cf
Weight of one component
1 kg 2,205 lb
Voice coil Ø
28 mm 1,102“
Voice coil height
12 mm 0,472“
Cone
Carbon fiber
www.facebook.com/blamaudio
www.blam-audio.com
THIELE-SMALL PARAMETERS
effective Ø (d)
128 mm
Sd
128,68 cm
2
Xmax
4 mm
Re
2,1 Ω
Fs
80,41 Hz
Le
80,24 µH @ 1 kHz
L2
209,66 µH @10 kHz
Vas
8,84 L
Mms
10,31 g
Cms
0,000380 m/N
BL
3,69 Tm
Qts
0,81
Qes
0,90
Qms
7,45
Sensitivity (dB/W/m)
88,5 dB
FREQUENCY RESPONSE / IMPEDANCE

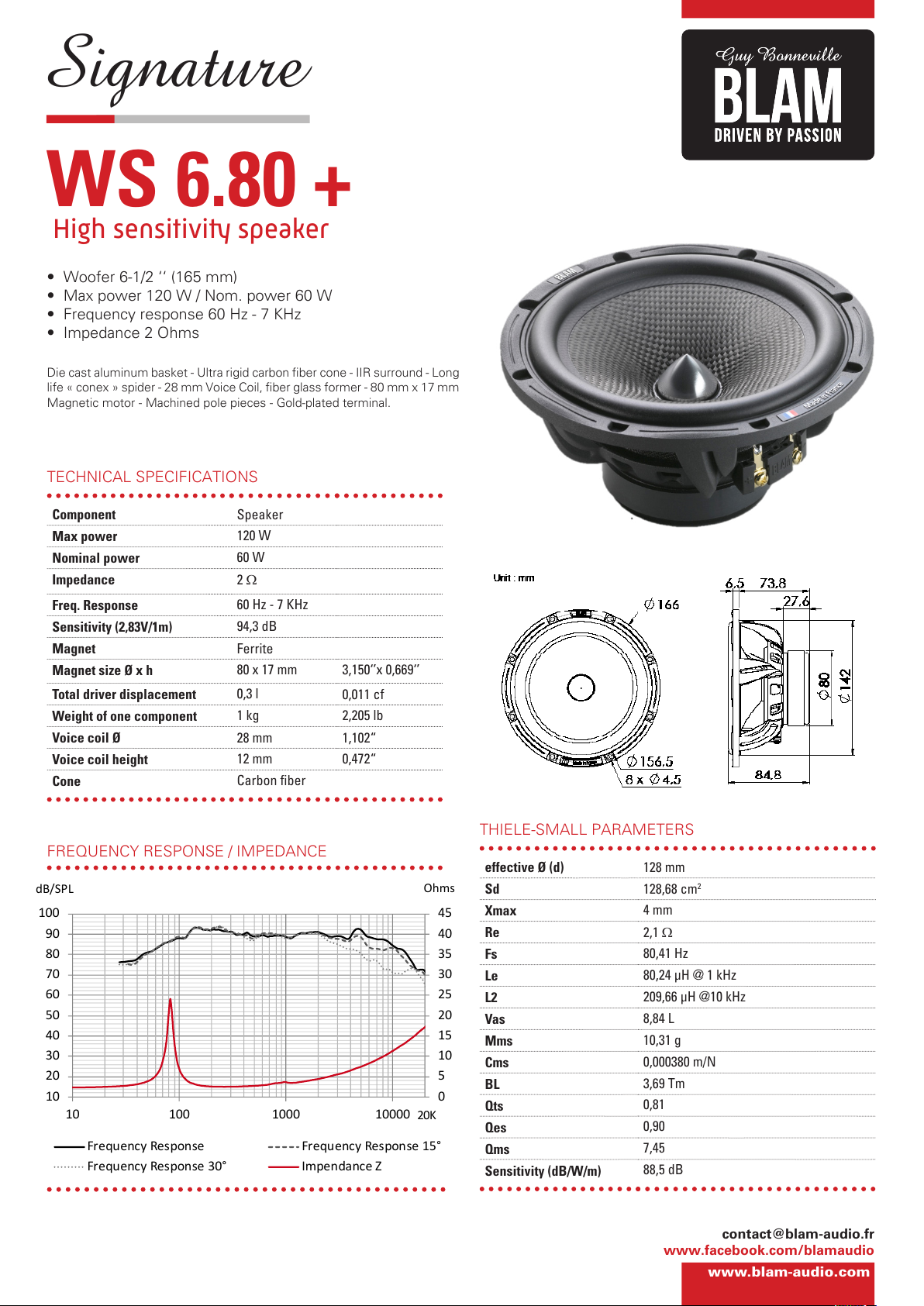

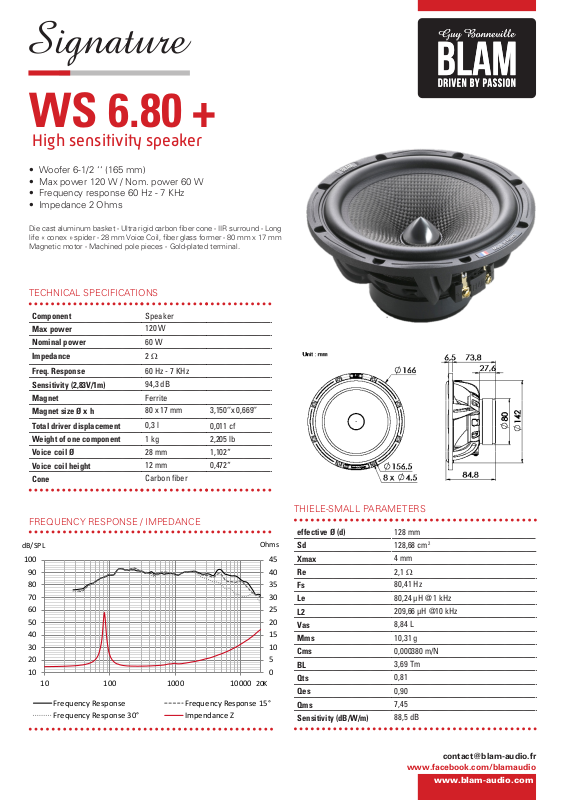

High sensitivi speaker
WS 6.80 +
• Woofer 6-1/2 ‘‘ (165 mm)
• Max power 120 W / Nom. power 60 W
• Frequency response 60 Hz - 7 KHz
• Impedance 2 Ohms
Die cast aluminum basket - Ultra rigid carbon ber cone - IIR surround - Long
life « conex » spider - 28 mm Voice Coil, ber glass former - 80 mm x 17 mm
Magnetic motor - Machined pole pieces - Gold-plated terminal.
Signature
0
5
10
15
20
25
30
35
40
45
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequ ency Response Frequ ency Response 15°
Frequ ency Response 30°
Impendance Z
Ohms
20K
