Page 1
0
5
10
15
20
25
30
35
40
45
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Res ponse Frequency Response 15°
Frequency Response 30° Impen dance Z
Ohms
20K

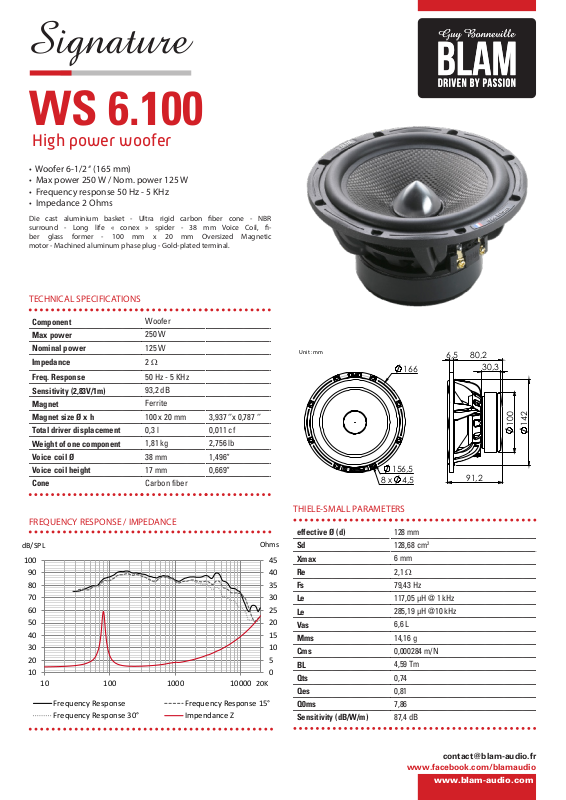

Signature
WS 6.100
High power woofer
• Woofer 6-1/2 ‘‘ (165 mm)
• Max power 250 W / Nom. power 125 W
• Frequency response 50 Hz - 5 KHz
• Impedance 2 Ohms
Die cast aluminium basket - Ultra rigid carbon ber cone - NBR
surround - Long life « conex » spider - 38 mm Voice Coil, ber glass former - 100 mm x 20 mm Oversized Magnetic
motor - Machined aluminum phase plug - Gold-plated terminal.
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Woofer
250 W
125 W
2 Ω
50 Hz - 5 KHz
93,2 dB
Ferrite
100 x 20 mm
0,3 l
1,81 kg 2,756 lb
38 mm 1,496“
17 mm 0,669“
Carbon fiber
FREQUENCY RESPONSE / IMPEDANCE
3,937 ‘’x 0,787 ‘’
0,011 cf
Unit : mm
156,5
8 x
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
Le
Vas
Mms
Cms
BL
Qts
Qes
Q0ms 7,86
Sensitivity (dB/W/m)
128 mm
128,68 cm
6 mm
2,1 Ω
79,43 Hz
117,05 µH @ 1 kHz
285,19 µH @10 kHz
6,6 L
14,16 g
0,000284 m/N
4,59 Tm
0,74
0,81
87,4 dB
6,5
80,2
166
4,5
2
www.facebook.com/blamaudio
www.blam-audio.com
30,3
100
91,2
142
