Page 1
Multix
0
10
20
30
40
50
60
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequenc y Response Frequency Response 15°
Frequency Response 30° Impendance Z
Ohms
50K
88.2

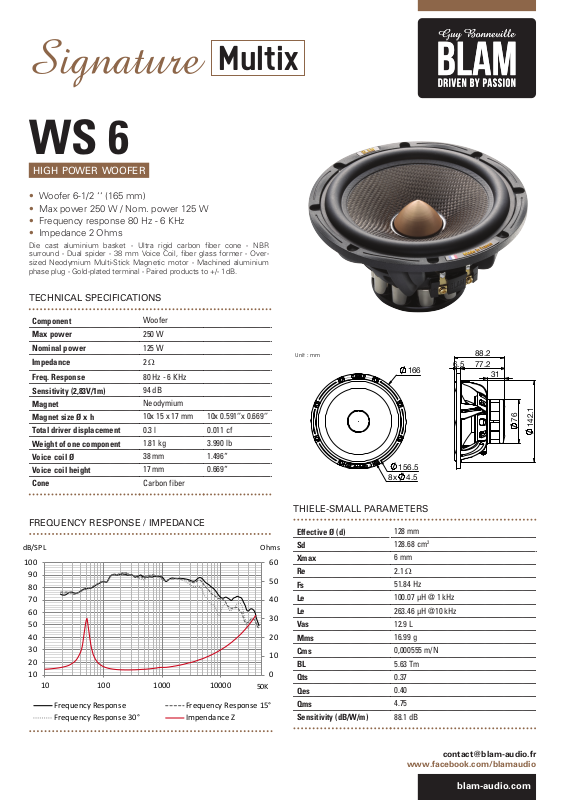

WS 6
high power woofer
• Woofer 6-1/2 ‘‘ (165 mm)
• Max power 250 W / Nom. power 125 W
• Frequency response 80 Hz - 6 KHz
• Impedance 2 Ohms
Die cast aluminium basket - Ultra rigid carbon ber cone - NBR
surround - Dual spider - 38 mm Voice Coil, ber glass former - Over-
sized Neodymium Multi-Stick Magnetic motor - Machined aluminium
phase plug - Gold-plated terminal - Paired products to +/- 1dB.
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Woofer
250 W
125 W
2 Ω
80 Hz - 6 KHz
94 dB
Neodymium
10x 15 x 17 mm 10x 0.591‘’x 0.669‘’
0.3 l 0.011 cf
1.81 kg 3.990 lb
38 mm 1.496“
17 mm 0.669“
Carbon fiber
FREQUENCY RESPONSE / IMPEDANCE
Unit : mm
166
156.5
4.5
8x
THIELE-SMALL PARAMETERS
Effective Ø (d)
Sd
Xmax
Re
Fs
Le
Le
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
128 mm
128.68 cm
6 mm
2.1 Ω
51.84 Hz
100.07 µH @ 1 kHz
263.46 µH @10 kHz
12.9 L
16.99 g
0,000555 m/N
5.63 Tm
0.37
0.40
4.75
88.1 dB
www.facebook.com/blamaudio
6.5 77.2
31
2
blam-audio.com
76
142.1
Page 2
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequenc y Response Frequency Response 15°
Frequency Response 30°
Impendance Z
Ohms
50K
Multix
22.3
TSM 25 Mg 70
high resolution tweeter
• 25mm (1’’) Pur Magnesium dome tweeter
• High efciency neodymium magnet N48H
• High precision Machined Aluminium front plate
• Sound transparent protective grill
• Low resonance rear chamber
Made in France
Available in two colors : black and gold
Extended frequency up to 43KHz
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Dome
Tweeter
100 W
15 W
5 Ω
1.18 KHz - 43 KHz
89.8 dB
Neodymium
40 x 6 mm 1.575‘’x 0.236‘’
- -
0.15 kg 0.331 lb
25 mm 0.984“
1.8 mm 0.071“
Magnesium
FREQUENCY RESPONSE / IMPEDANCE
Unit : mm
70
THIELE-SMALL PARAMETERS
Effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
32 mm
2
8.04 cm
-
5 Ω
1207 Hz
-
-
-
-
-
-
-
-
-
87.8 dB
www.facebook.com/blamaudio
5 12
51
blam-audio.com
