Page 1
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Res ponse Frequency Response 15°
Frequency Response 30°
Impenda nce Z
Ohms
50K
Multix
22.3

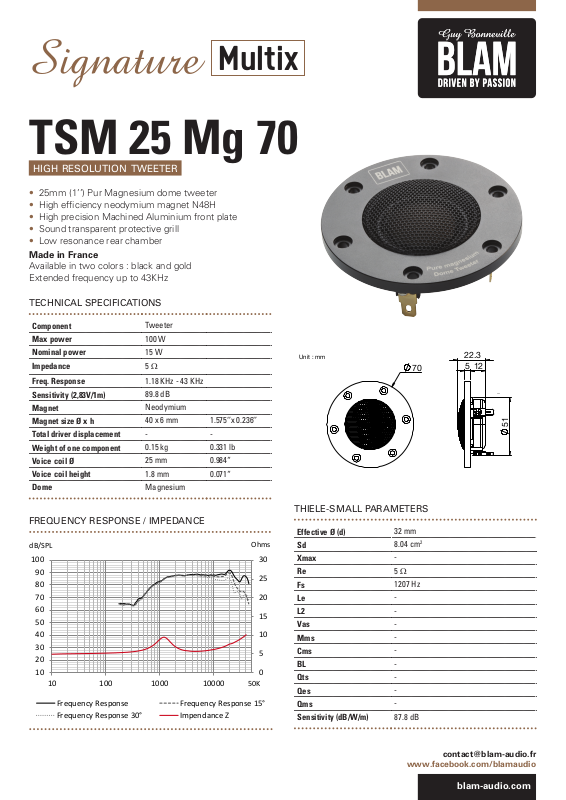

TSM 25 Mg 70
high resolution tweeter
• 25mm (1’’) Pur Magnesium dome tweeter
• High efciency neodymium magnet N48H
• High precision Machined Aluminium front plate
• Sound transparent protective grill
• Low resonance rear chamber
Made in France
Available in two colors : black and gold
Extended frequency up to 43KHz
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Dome
Tweeter
100 W
15 W
5 Ω
1.18 KHz - 43 KHz
89.8 dB
Neodymium
40 x 6 mm 1.575‘’x 0.236‘’
- -
0.15 kg 0.331 lb
25 mm 0.984“
1.8 mm 0.071“
Magnesium
FREQUENCY RESPONSE / IMPEDANCE
Unit : mm
70
THIELE-SMALL PARAMETERS
Effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
32 mm
2
8.04 cm
-
5 Ω
1207 Hz
-
-
-
-
-
-
-
-
-
87.8 dB
www.facebook.com/blamaudio
5 12
51
blam-audio.com
