Page 1
0
10
20
30
40
50
60
70
80
90
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Res ponse Frequency Response 15°
Frequency Response 30° Impen dance Z
Ohms
20K

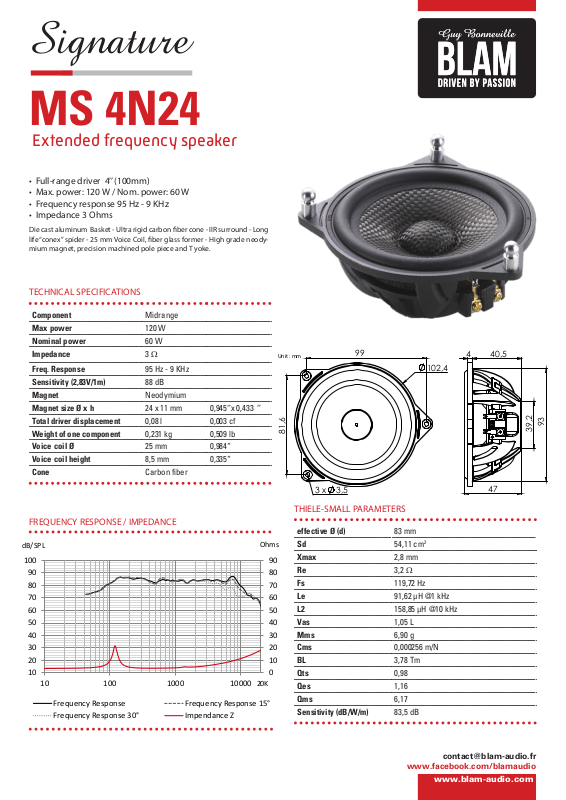

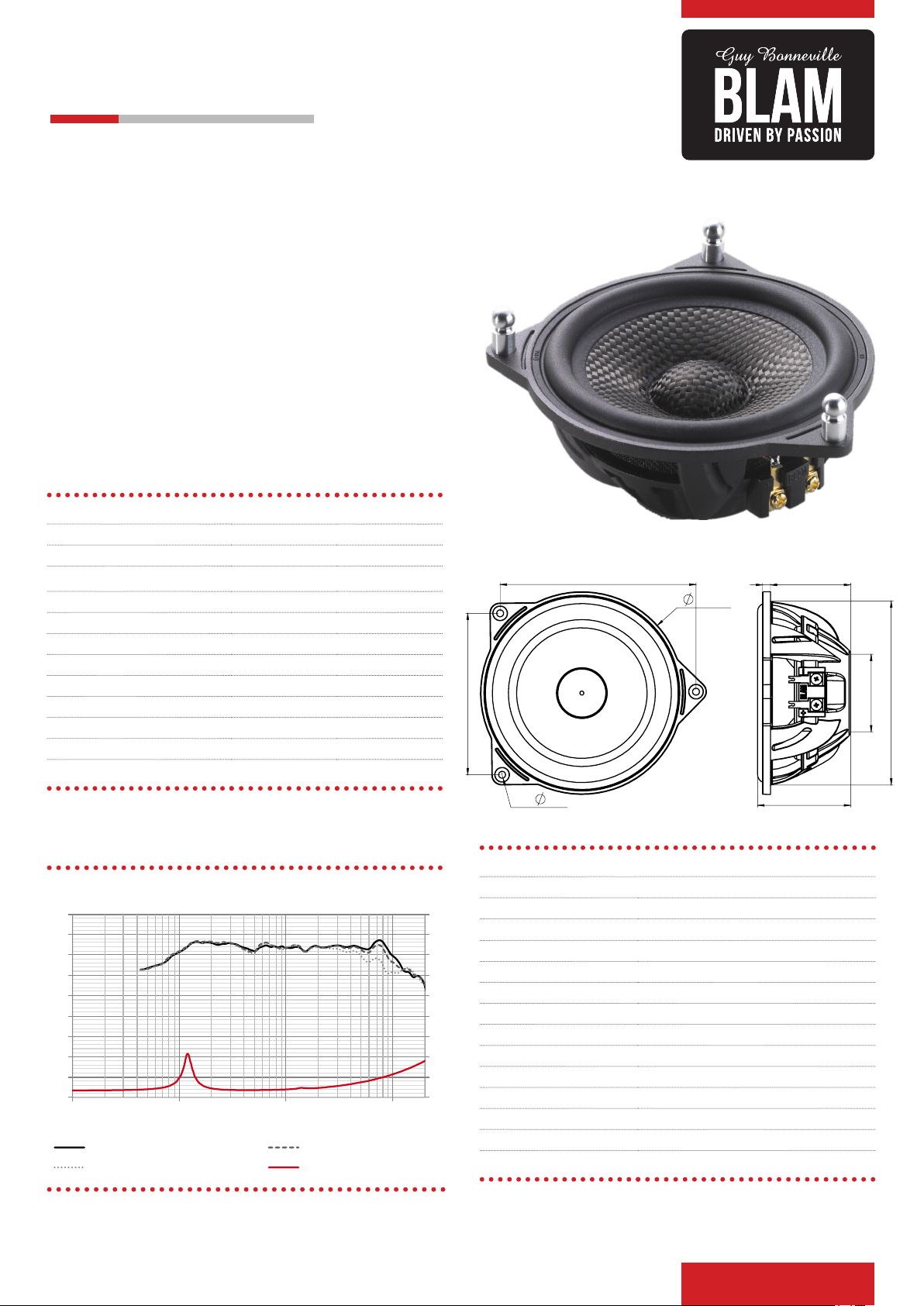

Signature
MS 4N24
Extended frequency speaker
• Full-range driver 4’’ (100mm)
• Max. power: 120 W / Nom. power: 60 W
• Frequency response 95 Hz - 9 KHz
• Impedance 3 Ohms
Die cast aluminum Basket - Ultra rigid carbon ber cone - IIR surround - Long
life “conex” spider - 25 mm Voice Coil, ber glass former - High grade neodymium magnet, precision machined pole piece and T yoke.
TECHNICAL SPECIFICATIONS
Component Midrange
Max power 120 W
Nominal power 60 W
Impedance
Freq. Response 95 Hz - 9 KHz
Sensitivity (2,83V/1m) 88 dB
Magnet Neodymium
Magnet size Ø x h 24 x 11 mm 0,945‘’x 0,433 ‘’
Total driver displacement 0,08 l 0,003 cf
Weight of one component 0,231 kg 0,509 lb
Voice coil Ø 25 mm 0,984“
Voice coil height 8,5 mm 0,335“
Cone Carbon fiber
3 Ω
Unit : mm
81,6
99
102,4
40,5
4
93
39,2
FREQUENCY RESPONSE / IMPEDANCE
3 x
3,5
THIELE-SMALL PARAMETERS
effective Ø (d) 83 mm
Sd 54,11 cm
Xmax 2,8 mm
Re
Fs 119,72 Hz
Le 91,62 µH @1 kHz
L2 158,85 µH @10 kHz
Vas 1,05 L
Mms 6,90 g
Cms 0,000256 m/N
BL 3,78 Tm
Qts 0,98
Qes 1,16
Qms 6,17
Sensitivity (dB/W/m) 83,5 dB
3,2 Ω
2
www.facebook.com/blamaudio
www.blam-audio.com
47
Page 2
TECHNICAL SPECIFICATIONS
• 5 ohm, Neo magnet
• 20 mm (3/4’’) textile dome diamphragm
• Compact mounting dimensions
• High eciency magnet (N38H neodymium)
• Ferrouid for high power handling
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Res ponse Frequency Response 15°
Frequency Response 30° Impen dance Z
Ohms
50K

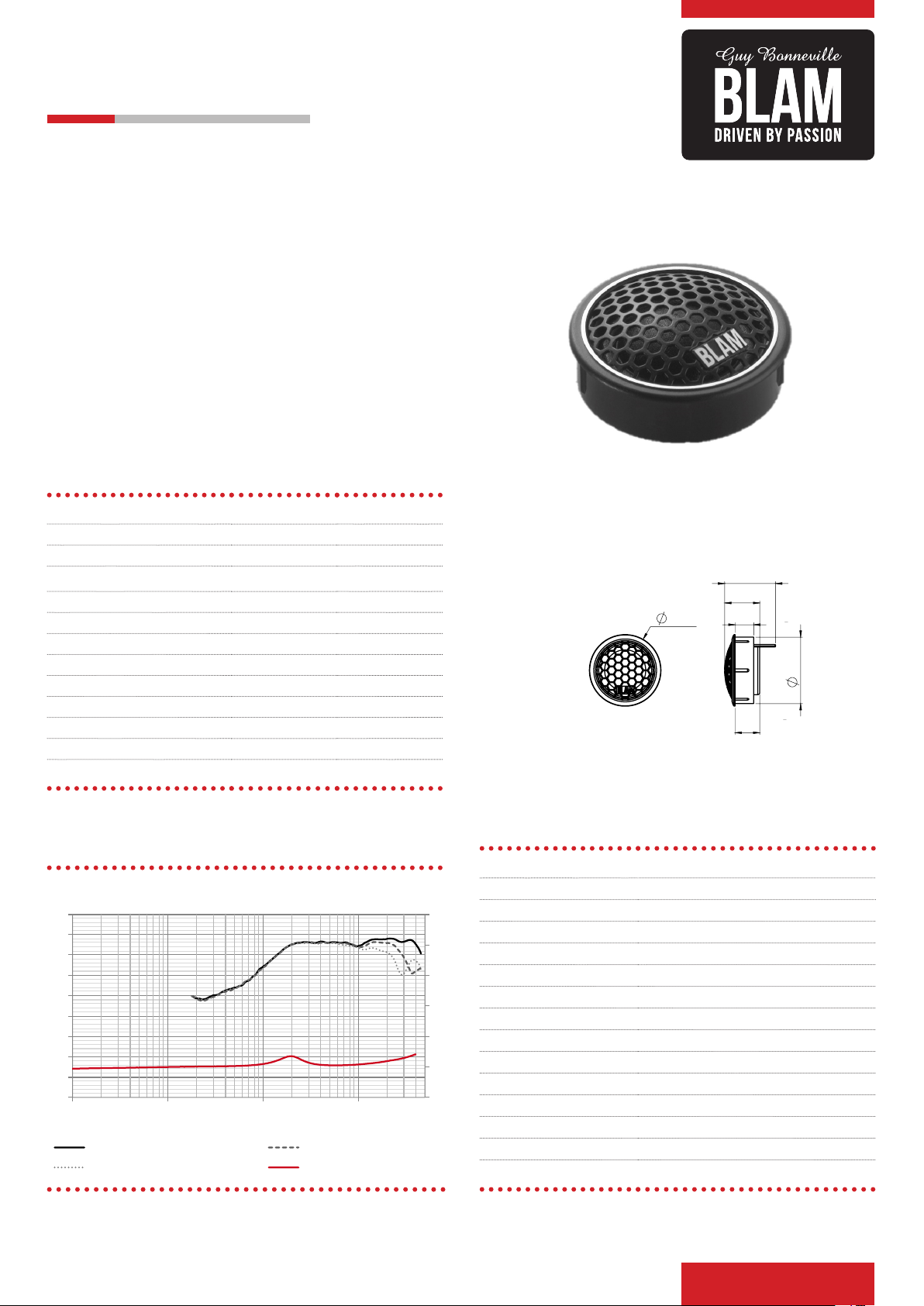

Signature
TS 20HR
High resolution tweeter
Component Tweeter
Max power 100 W
Nominal power 10 W
Impedance
Freq. Response 2,5 KHz - 40 KHz
Sensitivity (2,83V/1m) 88,3 dB
Magnet Neodymium
Magnet size Ø x h 18 x 4 mm 0,709‘’x 0,157’’
Total driver displacement - Weight of one component 0,03 kg 0,066 lb
Voice coil Ø 20 mm 0,787“
Voice coil height 1,3 mm 0,051“
Cone Soft
5 Ω
Unit : mm
36,2
25,8
17,8
9,4
33,6
12,5
FREQUENCY RESPONSE / IMPEDANCE
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
32 mm
8,04 cm
-
5 Ω
1972,85Hz
-
-
-
-
-
-
-
-
-
86,3 dB
2
