Page 1
Multix
0
10
20
30
40
50
60
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Res ponse Frequency Response 15°
Frequency Response 30° Impenda nce Z
Ohms
50K

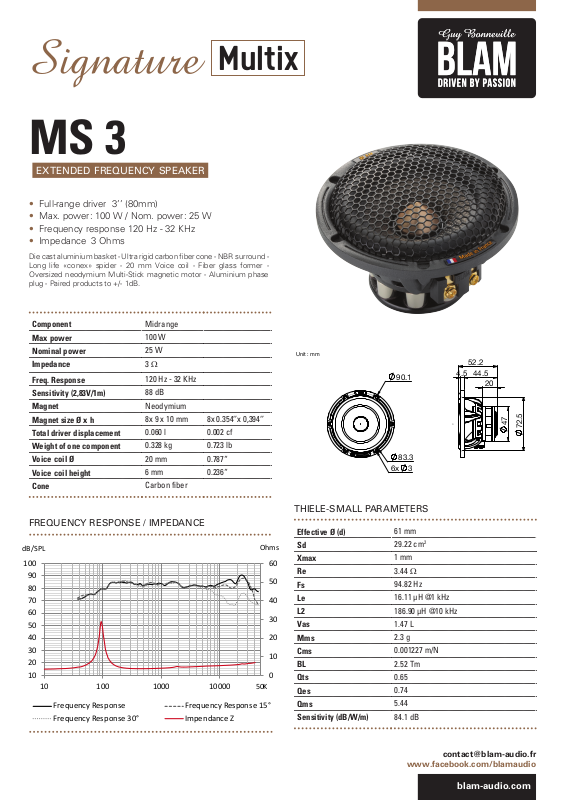

MS 3
extended frequency speaker
• Full-range driver 3’’ (80mm)
• Max. power: 100 W / Nom. power: 25 W
• Frequency response 120 Hz - 32 KHz
• Impedance 3 Ohms
Die cast aluminium basket - Ultra rigid carbon ber cone - NBR surround -
Long life «conex» spider - 20 mm Voice coil - Fiber glass former Oversized neodymium Multi-Stick magnetic motor - Aluminium phase
plug - Paired products to +/- 1dB.
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Midrange
100 W
25 W
3 Ω
120 Hz - 32 KHz
88 dB
Neodymium
8x 9 x 10 mm 8x 0.354‘’x 0,394‘’
0.060 l 0.002 cf
0.328 kg 0.723 lb
20 mm 0.787“
6 mm 0.236“
Carbon fiber
FREQUENCY RESPONSE / IMPEDANCE
Unit : mm
90.1
83.3
6x
3
THIELE-SMALL PARAMETERS
Effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
61 mm
29.22 cm
1 mm
3.44 Ω
94.82 Hz
16.11 µH @1 kHz
186.90 µH @10 kHz
1.47 L
2.3 g
0.001227 m/N
2.52 Tm
0.65
0.74
5.44
84.1 dB
www.facebook.com/blamaudio
52.2
44.54.5
20
2
blam-audio.com
47
72.5
