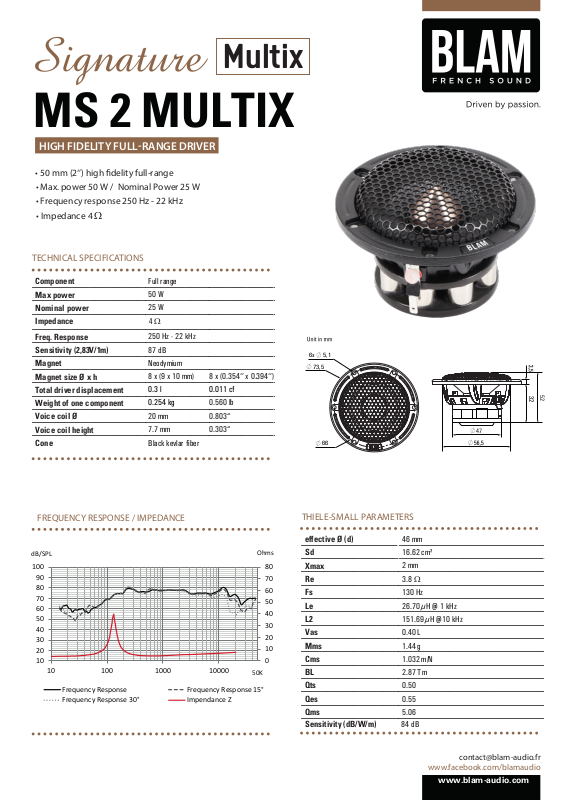

Multix
MS 2 MULTIX
• 50 mm (2‘’) high delity full-range
• Max. power 50 W / Nominal Power 25 W
• Frequency response 250 Hz - 22 kHz
• Impedance 4 Ω
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Full range
50 W
25 W
4
Ω
250 Hz - 22 kHz
87 dB
Neodymium
8 x (9 x 10 mm) 8 x (0.354‘’ x 0.394‘’)
0.3 l 0.011 cf
0.254 kg 0.560 lb
20 mm 0.803“
7.7 mm 0.303“
Black kevlar fiber
FREQUENCY RESPONSE / IMPEDANCE
dB/SPL
100
90
80
70
60
50
40
30
20
10
10 100 1000 10000
Frequency Response Frequency Response 15°
Frequency Response 30° Impendance Z
Ohms
50K
80
70
60
50
40
30
20
10
0
5,16x
73,5
66
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
46 mm
16.62 cm²
2 mm
3.8 Ω
130 Hz
26.70 µH @ 1 kHz
151.69 µH @10 kHz
0.40 L
1.44 g
1.032 m/N
2.87 Tm
0.50
0.55
5.06
84 dB
52
32
47
