Page 1
LIVE
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequ ency Response
Frequ ency Response 15°
Frequ ency Response 30° Impendance Z
Ohms
50K

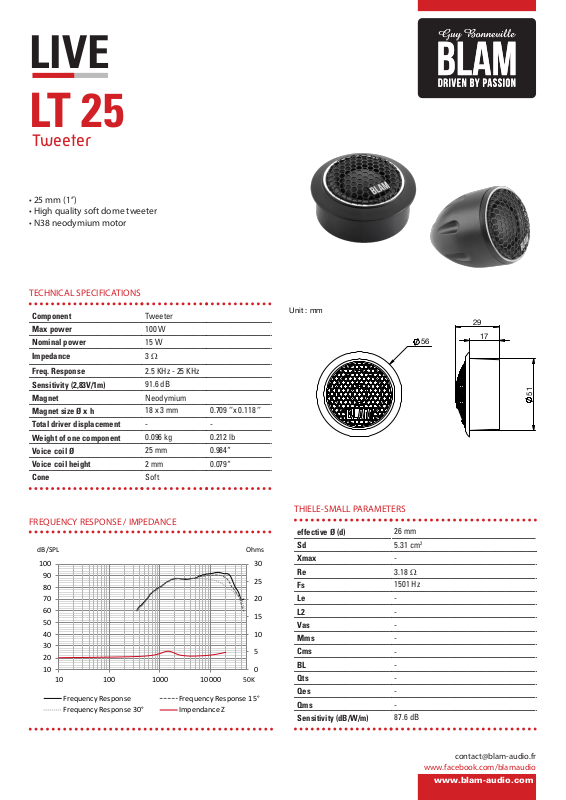

LT 25
Tweeter
• 25 mm (1’’)
• High quality soft dome tweeter
• N38 neodymium motor
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
FREQUENCY RESPONSE / IMPEDANCE
Tweeter
100 W
15 W
3 Ω
2.5 KHz - 25 KHz
91.6 dB
Neodymium
18 x 3 mm 0.709 ‘’x 0.118 ‘’
- -
0.096 kg 0.212 lb
25 mm 0.984“
2 mm
Soft
0.079“
Unit : mm
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
56
26 mm
5.31 cm
-
3.18 Ω
1501 Hz
-
-
-
-
-
-
-
-
-
87.6 dB
29
17
51
2
www.facebook.com/blamaudio
www.blam-audio.com

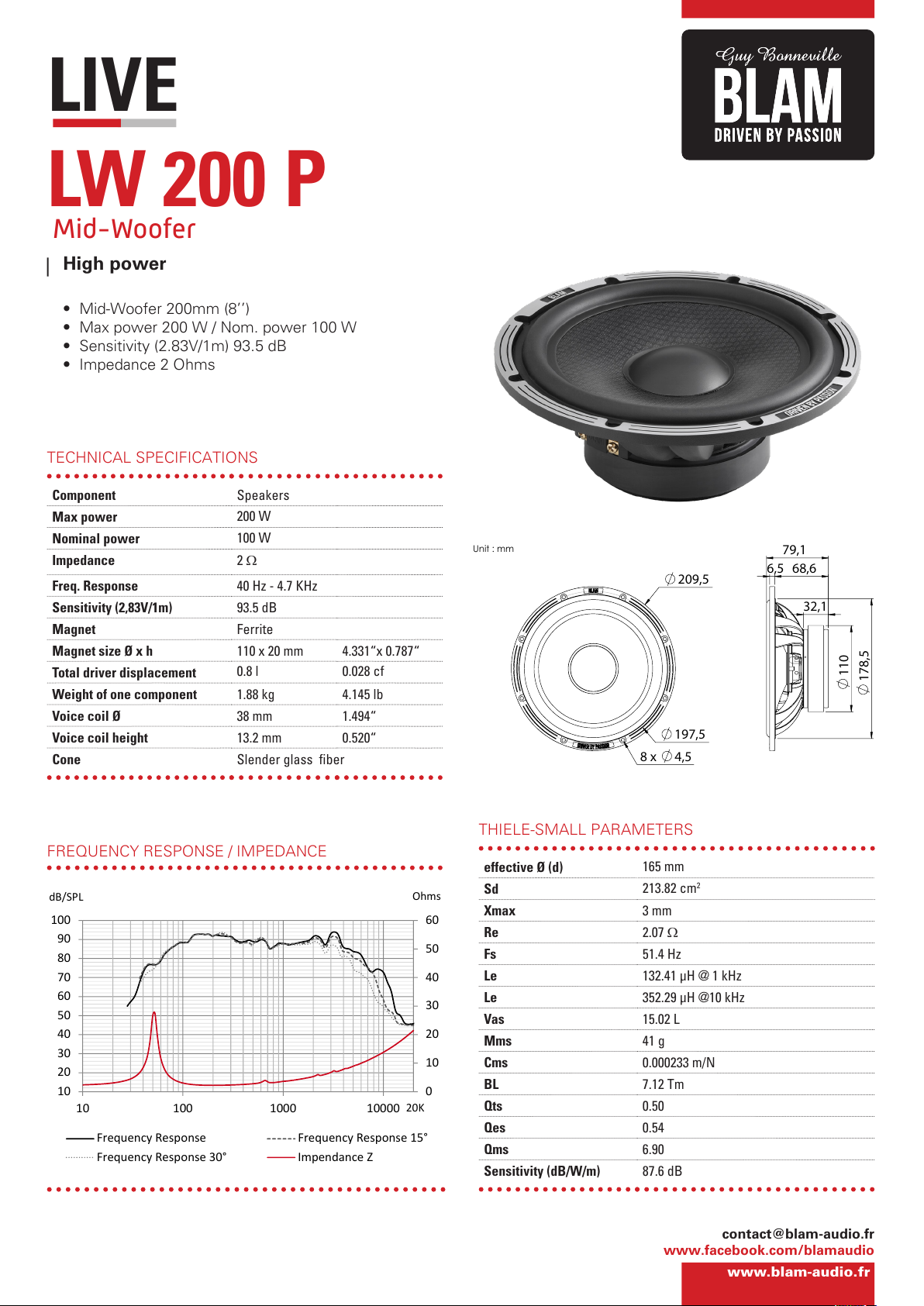

Page 2
LIVE
• Mid-Woofer 200mm (8’’)
• Max power 200 W / Nom. power 100 W
• Sensitivity (2.83V/1m) 93.5 dB
• Impedance 2 Ohms
www.facebook.com/blamaudio
www.blam-audio.fr
TECHNICAL SPECIFICATIONS
Component
Speakers
Max power
200 W
Nominal power
100 W
Impedance
2 Ω
Freq. Response
40 Hz - 4.7 KHz
Sensitivity (2,83V/1m)
93.5 dB
Magnet
Ferrite
Magnet size Ø x h
110 x 20 mm 4.331“x 0.787“
Total driver displacement
0.8 l 0.028 cf
Weight of one component
1.88 kg 4.145 lb
Voice coil Ø
38 mm 1.494“
Voice coil height
13.2 mm 0.520“
Cone
Slender glass fiber
THIELE-SMALL PARAMETERS
effective Ø (d)
165 mm
Sd
213.82 cm
2
Xmax
3 mm
Re
2.07 Ω
Fs
51.4 Hz
Le
132.41 µH @ 1 kHz
Le
352.29 µH @10 kHz
Vas
15.02 L
Mms
41 g
Cms
0.000233 m/N
BL
7.12 Tm
Qts
0.50
Qes
0.54
Qms
6.90
Sensitivity (dB/W/m)
87.6 dB
Mid-Woofer
LW 200 P
FREQUENCY RESPONSE / IMPEDANCE
High power
8 x
4,5
209,5
197,5
6,5
32,1
68,6
79,1
110
178,5
Unit : mm
0
10
20
30
40
50
60
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequency Response Frequency Response 15°
Frequency Response 30° Impendance Z
Ohms
20K
