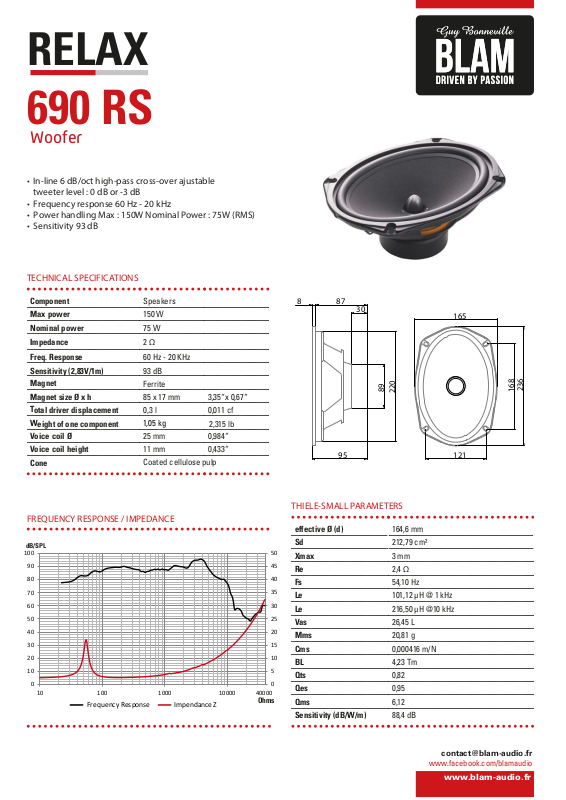

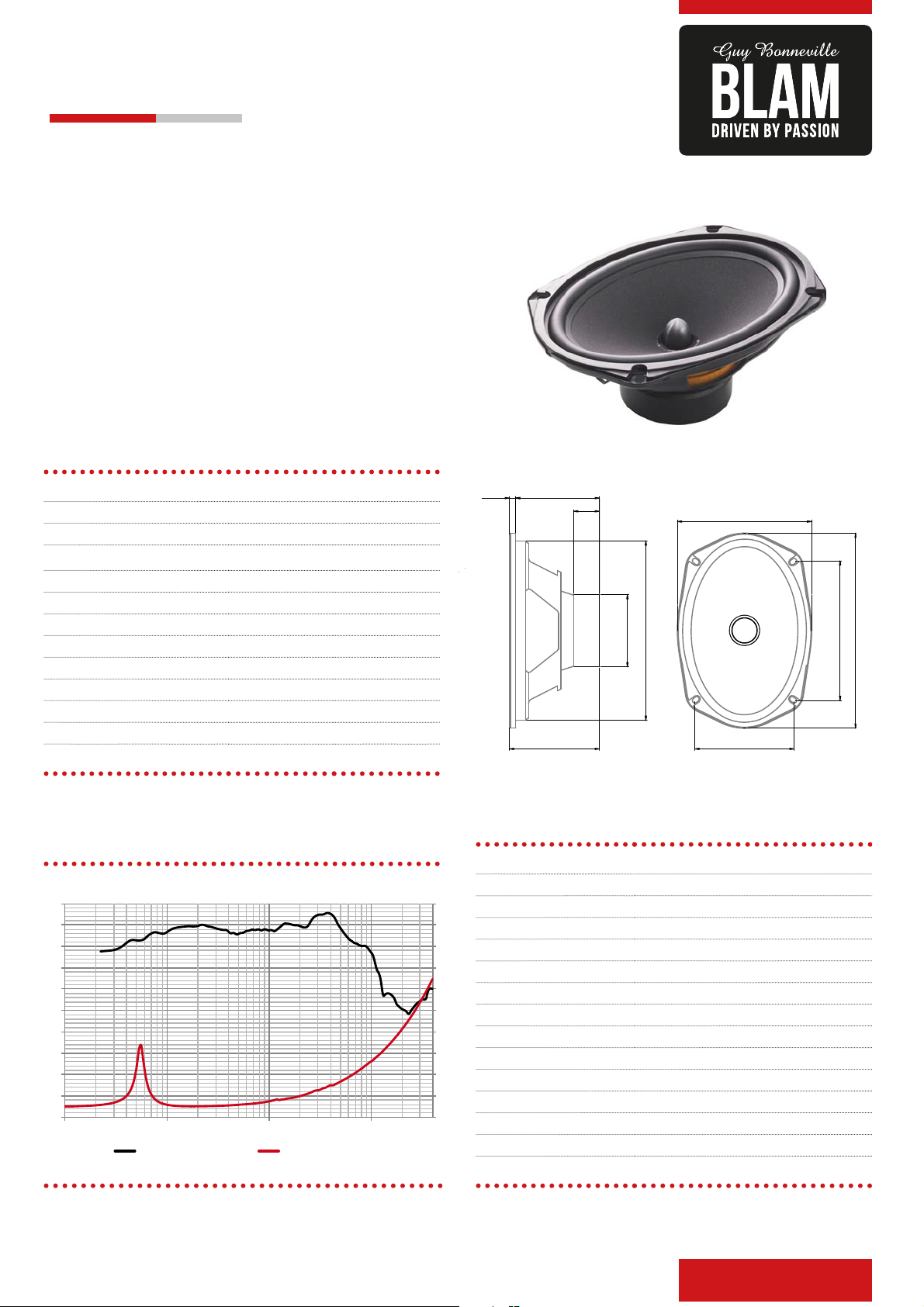

RELAX
T
690 RS
Woofer
• In-line 6 dB/oct high-pass cross-over ajustable
tweeter level : 0 dB or -3 dB
• Frequency response 60 Hz - 20 kHz
•
Power handling Max : 150W Nominal Power : 75W (RMS)
Sensitivity 93 dB
•
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
T
otal driver displacement
W
eight of one component
Voice coil Ø
Voice coil height
Cone
FREQUENCY RESPONSE / IMPEDANCE
dB/SPL
100
90
80
70
60
50
40
30
20
10
0
10 100 1000 10000 40000
Frequency Response Impendance Z
Speakers
150 W
75 W
2 Ω
60 Hz - 20 KHz
93 dB
Ferrite
85 x 17 mm 3,35“x 0,67“
0,3 l 0,011 cf
1,05 kg
25 mm 0,984“
11 mm 0,433“
Coated cellulose pulp
2,315 lb
Ohms
8
87
95
HIELE-SMALL PARAMETERS
effective Ø (d)
Sd
50
Xmax
45
Re
40
Fs
35
Le
30
Le
25
Vas
20
Mms
15
Cms
10
BL
5
Qts
0
Qes
Qms
Sensitivity (dB/W/m)
30
89
220
164,6 mm
212,79 cm²
3 mm
2,4 Ω
54,10 Hz
101,12 µH @ 1 kHz
216,50 µH @10 kHz
26,45 L
20,81 g
0,000416 m/N
4,23 Tm
0,82
0,95
6,12
88,4 dB
165
121
168
236
www.facebook.com/blamaudio
www.blam-audio.fr
Page 2

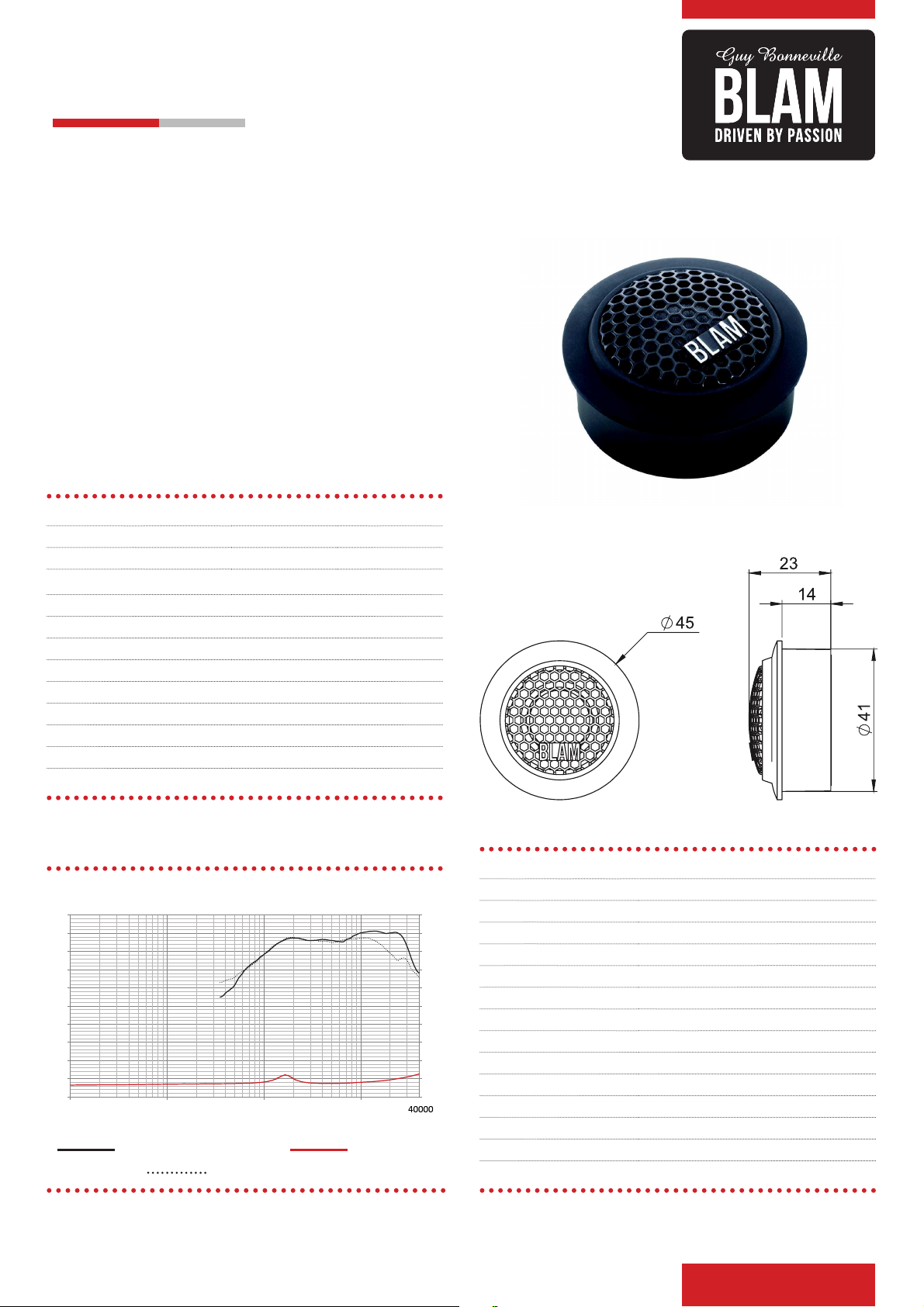

RELAX
RT 20
Tweeter
• Hi delity 20 mm soft dôme tweeter
• Hi eciency magnet (N38H neodymium)
• HI quality special soft dôme material
• Ferrouid for hi power handling
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Tweeter
100 W
10 W
3 :
2,5 KHz - 25 KHz
90 dB
Neodymium
18 x 3 mm 0,709‘’x 0,118‘’
- -
0,045 kg 0,099 lb
20 mm 0,787“
2 mm 0,118“
Soft
FREQUENCY RESPONSE / IMPEDANCE
dB/SPL
100
90
80
70
60
50
40
30
20
10
0
10 100 1000 10000
Frequency Response Impedance Z
Frequency Response 30°
50
45
40
35
30
25
20
15
10
5
0
Ohms
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
22 mm
3,80 cm
-
3 :
1651 Hz
-
-
-
-
-
-
-
-
-
86,7 dB
2
www.facebook.com/blamaudio
www.blam-audio.fr
