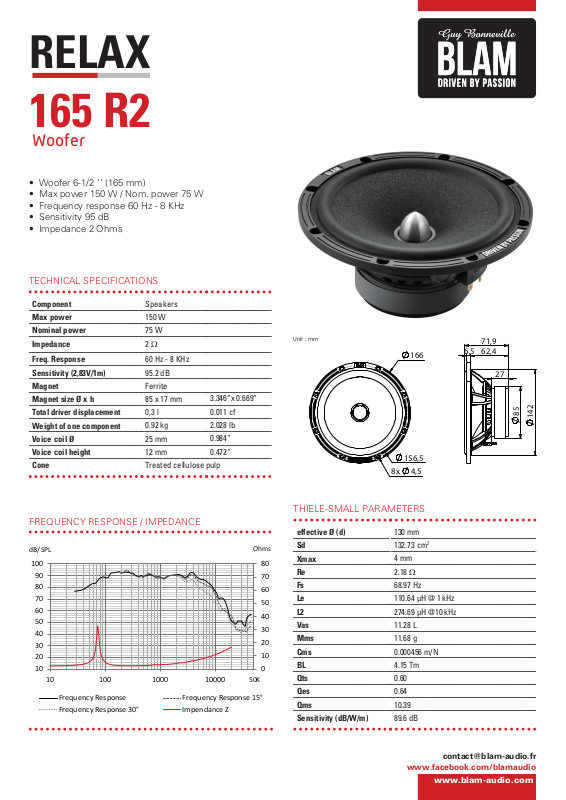

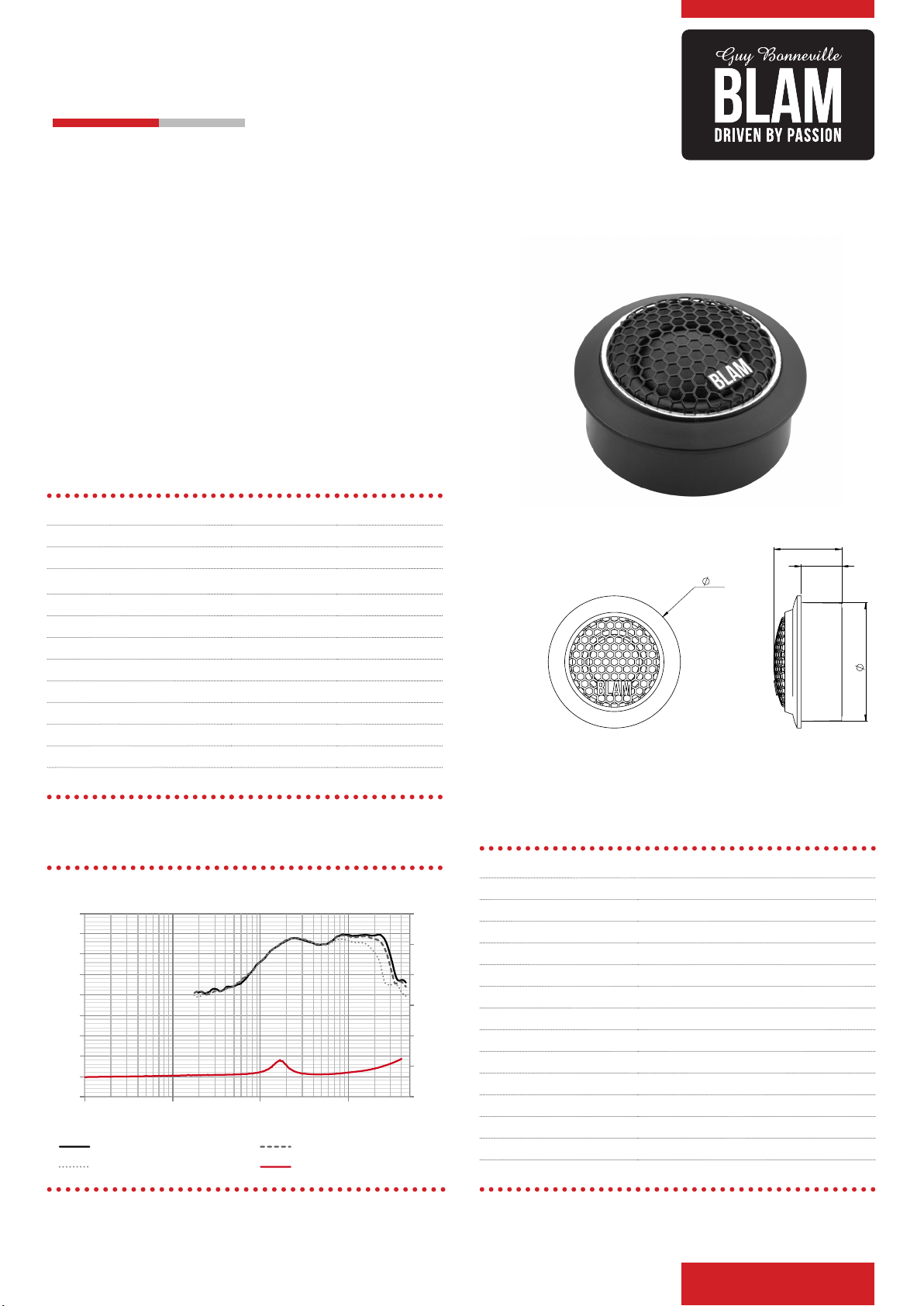

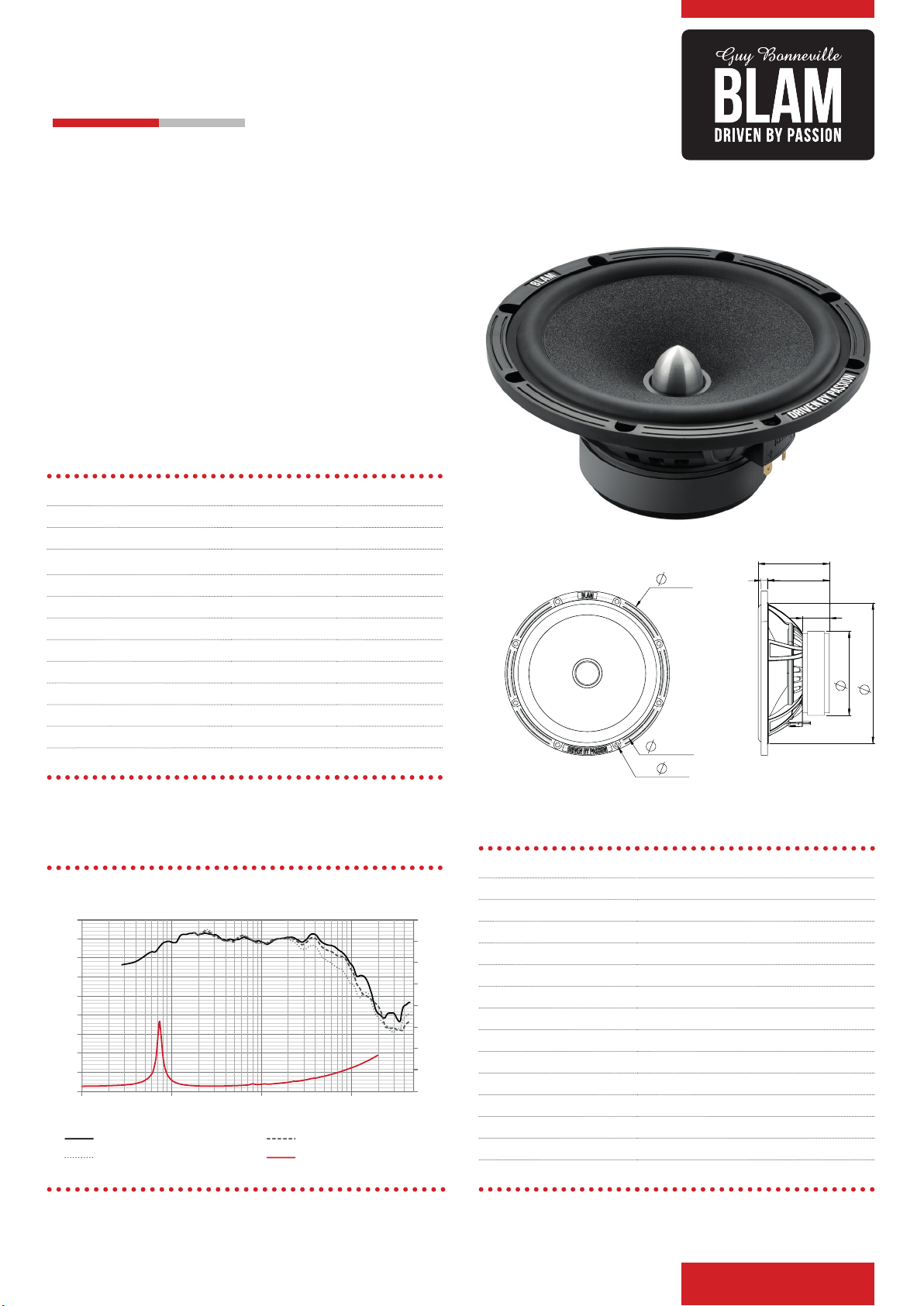

RELAX
0
10
20
30
40
50
60
70
80
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequ ency Response Frequ ency Response 15°
Frequ ency Response 30° Impendance Z
Ohms
50K
165 R2
Woofer
• Woofer 6-1/2 ‘‘ (165 mm)
• Max power 150 W / Nom. power 75 W
• Frequency response 60 Hz - 8 KHz
• Sensitivity 95 dB
• Impedance 2 Ohms
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Speakers
150 W
75 W
2 Ω
60 Hz - 8 KHz
95.2 dB
Ferrite
85 x 17 mm
0,3 l 0.011 cf
0.92 kg 2.028 lb
25 mm
12 mm 0.472“
Treated cellulose pulp
FREQUENCY RESPONSE / IMPEDANCE
3.346“x 0.669“
0.984“
Unit : mm
166
156,5
8x
4,5
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
130 mm
132.73 cm
4 mm
2.18 Ω
68.97 Hz
110.64 µH @ 1 kHz
274.69 µH @10 kHz
11.28 L
11.68 g
0.000456 m/N
4.15 Tm
0.60
0.64
10.39
89.6 dB
www.facebook.com/blamaudio
71,9
62,4
6,5
27
2
www.blam-audio.com
85
142
Page 2
RELAX
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequ ency Res ponse Frequency Response 15°
Frequ ency Res ponse 30° Impendance Z
Ohms
50K
R2T 20
Tweeter
• Hi delity 20 mm soft dôme tweeter
• Hi efciency magnet (N38H neodymium)
• HI quality special soft dôme material
• Ferrouid for hi power handling
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Dome
Tweeter
100 W
10 W
3 Ω
2.5 KHz - 25 KHz
90 dB
Neodymium
19.5 x 3 mm 0.768‘’x 0.118‘’
- -
0.045 kg 0.099 lb
20 mm
1.3 mm 0.051“
Silk
FREQUENCY RESPONSE / IMPEDANCE
0.803“
Unit : mm
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
22 mm
3,80 cm
-
3 Ω
1651 Hz
-
-
-
-
-
-
-
-
-
85,7 dB
www.facebook.com/blamaudio
23
14
45
41
2
www.blam-audio.com
