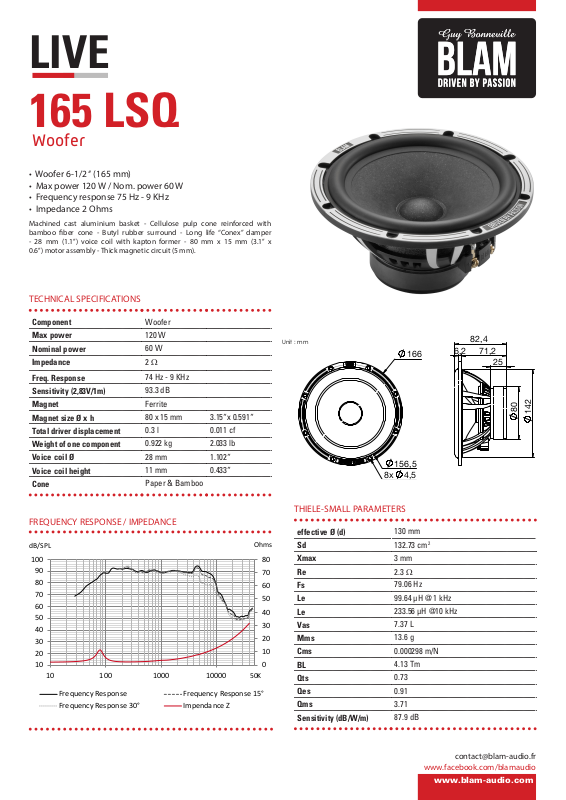

Woofer
• Woofer 6-1/2 ‘‘ (165 mm)
• Max power 120 W / Nom. power 60 W
• Frequency response 75 Hz - 9 KHz
• Impedance 2 Ohms
Machined cast aluminium basket - Cellulose pulp cone reinforced with
bamboo ber cone - Butyl rubber surround - Long life “Conex” damper
- 28 mm (1.1’’) voice coil with kapton former - 80 mm x 15 mm (3.1’’ x
0.6’’) motor assembly - Thick magnetic circuit (5 mm).
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
FREQUENCY RESPONSE / IMPEDANCE
Woofer
120 W
60 W
2 Ω
74 Hz - 9 KHz
93.3 dB
Ferrite
80 x 15 mm 3.15“x 0.591“
0.3 l 0.011 cf
0.922 kg 2.033 lb
28 mm 1.102“
11 mm 0.433“
Paper & Bamboo
Unit : mm
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
Le
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
166
156,5
130 mm
132.73 cm
3 mm
2.3 Ω
79.06 Hz
99.64 µH @ 1 kHz
233.56 µH @10 kHz
7.37 L
13.6 g
0.000298 m/N
4.13 Tm
0.73
0.91
3.71
87.9 dB
2
www.facebook.com/blamaudio
www.blam-audio.com
6,2 71,2
25
80
142
Page 2
LIVE
0
5
10
15
20
25
30
10
20
30
40
50
60
70
80
90
100
10 100 1000 10000
dB/SPL
Frequ ency Response
Frequ ency Response 15°
Frequ ency Response 30° Impendance Z
Ohms
50K
LT 25
Tweeter
• 25 mm (1’’)
• High quality soft dome tweeter
• N38 neodymium motor
TECHNICAL SPECIFICATIONS
Component
Max power
Nominal power
Impedance
Freq. Response
Sensitivity (2,83V/1m)
Magnet
Magnet size Ø x h
Total driver displacement
Weight of one component
Voice coil Ø
Voice coil height
Cone
Tweeter
100 W
15 W
3 Ω
2.5 KHz - 25 KHz
91.6 dB
Neodymium
18 x 3 mm 0.709 ‘’x 0.118 ‘’
- -
0.096 kg 0.212 lb
25 mm 0.984“
2 mm
Soft
FREQUENCY RESPONSE / IMPEDANCE
0.079“
Unit : mm
THIELE-SMALL PARAMETERS
effective Ø (d)
Sd
Xmax
Re
Fs
Le
L2
Vas
Mms
Cms
BL
Qts
Qes
Qms
Sensitivity (dB/W/m)
56
26 mm
5.31 cm
-
3.18 Ω
1501 Hz
-
-
-
-
-
-
-
-
-
87.6 dB
29
17
51
2
www.facebook.com/blamaudio
www.blam-audio.com
