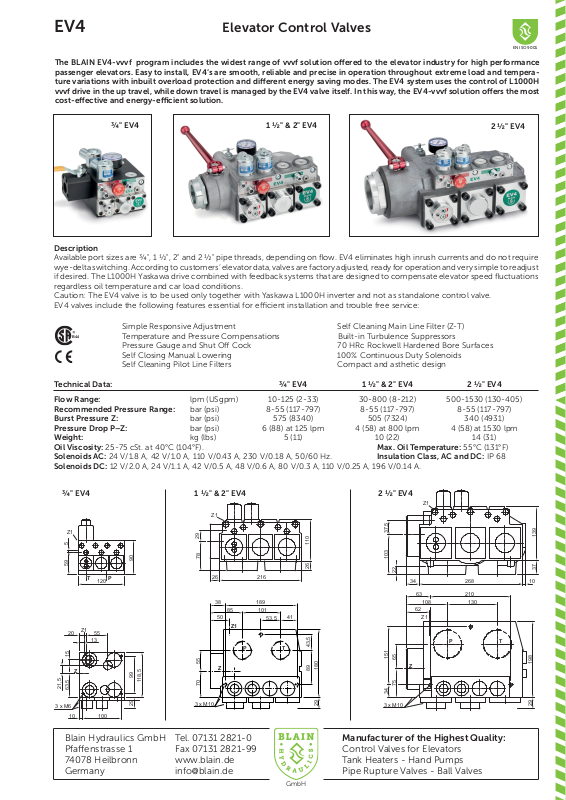

Blain Hydraulics EV4 User Manual

EV4

Elevator Control Valves

EN ISO 9001

The BLAIN EV4-vvvf program includes the widest range of vvvf solution o ered to the elevator industry for high performance
passenger elevators. Easy to install, EV4‘s are smooth, reliable and precise in operation throughout extreme load and tempera­ture variations with inbuilt overload protection and di erent energy saving modes. The EV4 system uses the control of L1000H
vvvf drive in the up travel, while down travel is managed by the EV4 valve itself. In this way, the EV4-vvvf solution o ers the most
cost-e ective and energy-e cient solution.

¾" EV4 1 ½" & 2" EV4

2 ½" EV4

Description

Available port sizes are ¾", 1 ½", 2" and 2 ½" pipe threads, depending on fl ow. EV4 eliminates high inrush currents and do not require
wye-delta switching. According to customers‘ elevator data, valves are factory adjusted, ready for operation and very simple to readjust
if desired. The L1000H Yaskawa drive combined with feedback systems that are designed to compensate elevator speed fl uctuations
regardless oil temperature and car load conditions.
Caution: The EV4 valve is to be used only together with Yaskawa L1000H inverter and not as standalone control valve.
EV4 valves include the following features essential for e cient installation and trouble free service:

Simple Responsive Adjustment Self Cleaning Main Line Filter (Z-T)

B44

Temperature and Pressure Compensations Built-in Turbulence Suppressors
Pressure Gauge and Shut O Cock 70 HRc Rockwell Hardened Bore Surfaces
Self Closing Manual Lowering 100% Continuous Duty Solenoids
Self Cleaning Pilot Line Filters Compact and asthetic design

Technical Data: ¾" EV4 1 ½" & 2" EV4 2 ½" EV4

Flow Range: lpm (USgpm) 10-125 (2-33) 30-800 (8-212) 500-1530 (130-405)
Recommended Pressure Range: bar (psi) 8-55 (117-797) 8-55 (117-797) 8-55 (117-797)
Burst Pressure Z: bar (psi) 575 (8340) 505 (7324) 340 (4931)
Pressure Drop P–Z: bar (psi) 6 (88) at 125 lpm 4 (58) at 800 lpm 4 (58) at 1530 lpm
Weight: kg (lbs) 5 (11) 10 (22) 14 (31)
Oil Viscosity: 25-75 cSt. at 40°C (104°F). Max. Oil Temperature: 55°C (131°F)
Solenoids AC: 24 V/1.8 A, 42 V/1.0 A, 110 V/0.43 A, 230 V/0.18 A, 50/60 Hz. Insulation Class, AC and DC: IP 68
Solenoids DC: 12 V/2.0 A, 24 V/1.1 A, 42 V/0.5 A, 48 V/0.6 A, 80 V/0.3 A, 110 V/0.25 A, 196 V/0.14 A.

¾" EV4 1 ½" & 2" EV4 2 ½" EV4

Z1

Z1

559

20 55

15

21,5

63,5

3 x M6

10 100

TP

Z1

13

Z

120

90

99

118 ,5

29

29

78

26 216

50

55

Z

70

3 x M10

85

Blain Hydraulics GmbH Tel. [phone]
Pfa enstrasse 1 Fax [phone]
74078 Heilbronn www.blain.de
Germany [e-mail]

110

26

18938

101

Z1

P

53,5

41

T

43,5

89

180

29

Manufacturer of the Highest Quality:

Control Valves for Elevators
Tank Heaters - Hand Pumps
Pipe Rupture Valves - Ball Valves

GmbH

37,5

103

151

34

3 x M10

22

65

75

Z1

34 268

63

108

62

Z1

PT

Z

210

139

37

10

130

198

29

Optional Equipment

EN Emergency Power Solenoid
CSA CSA Solenoids
KS Slack Rope Valve
BV Main Shut-O Valve

DH High Pressure Switch
DL Low Pressure Switch
CX Pressure Compensated Down
MX Auxiliary Down

HP Hand Pump

¾" 1 ½" & 2" EV4 2 ½"

EV4

Up Up to 1 m/s (200 fpm). 2 Full Speeds and 1 Levelling Speed.

Up Start, speeds, transition times and up stop are
adjusted by inverter parameters.
Down Up to 1 m/s (200 fpm). 1 Full Speed and 1 Levelling Speed.
All down functions are smooth and adjustable.

B44

Control Elements

C Solenoid (Down Deceleration) U By Pass Valve
D Solenoid (Down Stop) V Check Valve

Adjustments UP

None
(Fixed Orifi ce)

H Manual Lowering X Full Speed Valve (Down)
S Relief Valve Y Levelling Valve (Down)
F Filter

Hydraulic Circuit Electrical Sequence

HP

DL

ES

EV4

DH

BV

Z1

F

RS

8

X

7

9

Y

KS

EN

DC

6

V

H

U

1

S

2

M

MOTOR

S4

S1

UP direction control

Adjustments DOWN

6 Down Acceleration
7 Down Full Speed
8 Down Deceleration
9 Down Levelling Speed

CD

6

7

8

9

8

Caution: Please refer to the detailed installation
and set-up procedure of the EV4 handbook and
L1000H technical manual.

The up direction control is done by the Yaskawa L1000H
inverter. The inverter with the help of its software calcu­lates the load in the car, read the current oil temperature
through a temperature sensor and process oil and pump
performance data in order to obtain motor speeds for the
nominal, intermediate, inspection and levelling speeds.

After giving the oil type and elevator data a teach run with
empty car is su cient enough for the inverter to self­learn and confi gure itself fully automatic during the initial
set-up.

BLAIN HYDRAULICS

Lift

Controller

Temperature sensor

L1000H

(Inverter)

EV4

valve

Motor

Pump

Warning: Only qualifi ed personnel should adjust or service the EV4 valve and the L1000H drive. Unauthorised

manipulation may result in injury, loss of life or damage to equipment. Prior to servicing internal parts, ensure that
the electrical controller is switched o , cylinder line is closed and residual pressure in the valve is reduced to zero.

Adjustments DOWN

Valves are already adjusted and tested. Check electrical operation before changing valve settings. Test that the correct solenoid is

energised, by removing nut and raising solenoid slightly to feel pull.

Nominal Settings: Adjustments 7
ments 6

& 8 turn all the way 'in' (clockwise), then 1.5 turns 'out' (c-clockwise). One fi nal turn in either direction may be necessary.

6. Down Acceleration: When solenoids C and D are energised, the car will accelerate downwards according to the setting of
adjustment 6. 'In' (clockwise) provides a softer down acceleration, 'out' (c-clockwise) a quicker acceleration.

7. Down Speed: With solenoids C and D energised as in 6 above, the full down speed of the car is according to the setting of
adjustment 7. 'In' (clockwise) provides a slower down speed, 'out' (c-clockwise) a faster down speed.

8. Down Deceleration: When solenoid C is de-energised whilst solenoid D remains energised, the car will decelerate according to

the setting of adjustment 8. 'In' (clockwise) provides a softer deceleration, 'out' (c-clockwise) a quicker deceleration.

Attention: Do not close all the way in! Closing adjustment 8 completely (clockwise) may cause the car to fall on the bu ers.

9. Down Levelling: With solenoid C de-energised and solenoid D energised as in 8 above, the car will proceed at its down levelling
speed according to the setting of adjustment 9. 'In' (clockwise) provides a slower, 'out' (c-clockwise) a faster down levelling speed.

Down Stop: When solenoid D is de-energised with solenoid C remaining de-energised, the car will stop according to the setting
of adjustment 8 and no further adjustment will be required.

KS Slack Rope Valve: Solenoids C and D must be de-energised! The KS is adjusted with a 3 mm Allan Key by turning the screw K 'in'

for higher pressure and 'out' for lower pressure. With K turned all the way 'in', then half a turn back out, the unloaded car should
descend when Manual Lowering H is opened. Should the car not descend, K must be backed o until the car just begins to
descend, then backed o a further half turn to ensure that with cold oil, the car can be lowered as required.

& 9 approx. level with fl ange face. Two turns in either direction may then be necessary. Adjust-

Adjustments pressure relief valve

Valves are already checked for functionality. Check electrical operation before changing inverter settings. Please refer to the EV4

inverter manual for necessary parameter settings.

S Relief Valve: ‚In‘ (clockwise) produces a higher, ‚out‘ (c-clockwise) a lower maximum pressure setting. After turning ‚out‘, open

manual lowering H for an instant.

Important: When testing relief valve, do not close ball valve sharply.

M1

D

C

Z1

6

8

KS

9

3

M1 Second pressure gauge connection, ½"
Z1 Pressure switch connection, ¼"

D C

Z1

M1

S

5

2

B

3

Important: Length of ¾" thread on pump
connections should not be longer than 14 mm!

A

S

H

5

X

6

8

KS

Adjustments DOWN
6 Down Acceleration

7 Down Full Speed
8 Down Deceleration
9 Down Levelling Speed

Plugs
3

5
A
B

9 7

2

Control Elements
C Solenoid (Down Deceleration)

D Solenoid (Down Stop)
H Manual Lowering
S Relief Valve
U By Pass Valve
V Check Valve
X Full Speed Valve (Down)
Y Levelling Valve (Down)
2 Fix Orifi ce

BLAIN HYDRAULICS

Y

Explosion

VU

Pos. No. Item

FS Lock Screw - Flange
FO O-Ring - Flange
1F4 Flange - By Pass
UO 0-Ring - By Pass Valve
U4 By Pass Valve

1

UD Noise Suppressor
UF1 Spring - By Pass
UF2 Spring - By Pass
US Dead Stop

2 Fixed orifi ce

2

3 Plug

3

4F4 Flange - Check Valve
FO 0-Ring - Flange
VF Spring - Check Valve
VO Seal - Check Valve

4

V Check Valve

W Up-Levelling Valve
WO 0-Ring - Up Levelling Valve
VO Seal - Check Valve
W6 Screw - Check Valve

3 Plug

5

3 Adjustment - Down Acceleration

6

7F Flange - Down Valve
FO 0-Ring - Flange
7O 0-Ring - Adjustment
7E Adjustment - Down Valve
UO 0-Ring - Down Valve

7

XO Seal - Down Valve
X Down Valve
XD Noise Suppressor
F Main Filter

8 Adjustment - Down Deceleration

8

EO 0-Ring - Adjustment
9E Adjustment - Down Levelling

9

9F Spring - Down Valve
Y Down Levelling Valve

H Manual Lowering - Self Closing

H

HO Seal - Manual Lowering
SE Adjustment - Screw

SM Hexagonal
MS Grub Screw
SO 0-Ring - Nipple

S

SZ Nipple
SF Spring
SK Piston

MM Nut - Solenoid
M Coil - Solenoid (indicate voltage)
DR Tube - Solenoid 'Down'
MO 0-Ring - Solenoid
DF Spring - Solenoid 'Down'

C+D

DN Needle - 'Down'
DK Core - Solenoid
DG Seat Housing with Screen-'Down'
FD Filter Solenoid
DS Seat - Solenoid 'Down'

Some parts occur more than once in di erent
positions of the valve.

EV4 Spare Parts List

No. ¾" 1 ½" 2 ½"

FO 26x2P 47x2.5P 58x3P *
EO 9x2P 9x2P 9x2P
UO 26x2V
WO 5.28x1.78V 5.28x1.78V 5.28x1.78V
VO 23x2,5V 42x3V 60x3V **
7O 5.28x1.78P 9x2P 9x2P
XO 13x2V 30x3V 47x3V
HO 5.28x1.78V 5.28x1.78V 5.28x1.78V
SO 5.28x1.78P 5.28x1.78P 5.28x1.78P
MO 26x2P 26x2P 26x2P

* FO an 4F 2½" ist 67x2.5P
** 90 Shore

US is only for EV4 1 ½“ and above sizes!

O-Ring-Größe

39.34x2.62V

O-Ring: V= FKM - Viton

P = NBR - Perbunan

W6 VO

58x3V

V

{

WO

XXD

F Do not remove!

In case of down leakage, replace and test in the following order:

Solenoid Valves

C+D

MM

M

DR

MO

DF

DN

DK

DG
FD

DS

UDUF1 UOU4 US UF2 1F4

W

VF

7O7EF UOXO

Y

SK

FO

4F4

FO

FO 7F

9F

DS & DN , XO , VO , WO , FO + HO .

Fix orifi ce

Plug

Adjustments

HO

FS

FS

FS

SMMS

SESF SZ SO

EO9E

(Option)

EV4

2

3+5

6

S

H

8

1

4

7
9

DC

S

H

6
8

397

¾"

5 10 15 20 25 30 35

50

01

02

40

30

20

10

bar

Static pressure with empty car.

0

20 40 60 80 100 120 140

03 04

l/min. l/min.

To order EV4, state pump fl ow, empty car pressure (or fl ow guide size) and solenoid voltage.

sep 15

BLAIN HYDRAULICS Designers and Builders of High Quality Valves for Hydraulic Elevators Printed in Germany

Taper threads: Do not exceed 8 turns of piping
into the valve connections.

DC

S

H

5
2
1
4

6

8

97

5

2
3
1

4

6

8

Flow Guide Selection Charts for Down Direction

1 ½" & 2"

700

05

600

500

400

06

300

200

100

psi

50

0

40

30

20

10

bar

Static pressure with empty car.

0

12 3

Example order: EV4, 380lpm, 18 bar (empty), 110 AC  EV4/4/110AC

US gpm.US gpm.

45

700

600

500

400

300

6

200

100

psi

Static pressure with empty car.

50

40

30

20

10

bar

2 ½"

50 100 150 200 250 300 350 400 20 40 60 80 100 120 140 160 180 200

0

200 400 600 800 1000 1200 1400 1600 100 200 300 400 500 600 700

DC

H

US gpm.

S

97

89

l/min.

5

2

3

1

4

700

600

500

400

300

10

200

100

psi

psi
