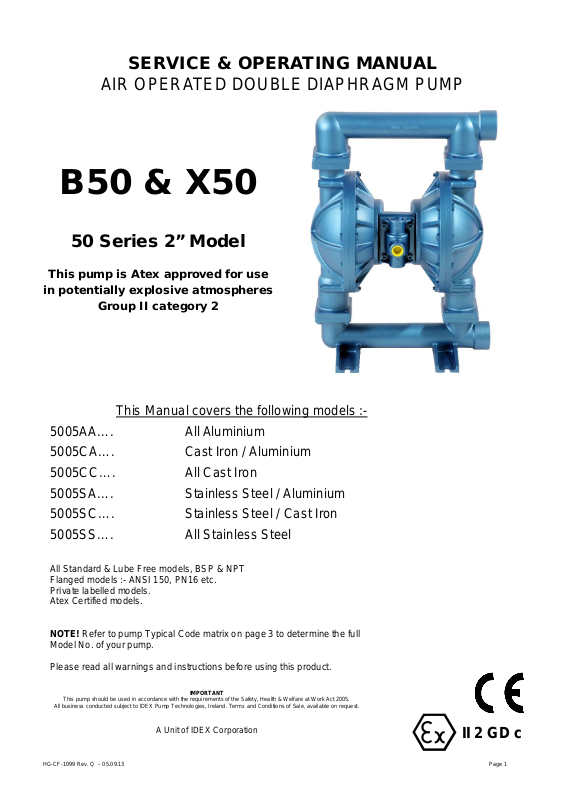

SERVICE & OPERATING MANUAL
AIR OPERATED DOUBLE DIAPHRAGM PUMP
B50 & X50
50 Series 2” Model
This pump is Atex approved for use
in potentially explosive atmospheres
Group II category 2
This Manual covers the following models :-
5005AA…. All Aluminium
5005CA…. Cast Iron / Aluminium
5005CC…. All Cast Iron
5005SA…. Stainless Steel / Aluminium
5005SC…. Stainless Steel / Cast Iron
5005SS…. All Stainless Steel
All Standard & Lube Free models, BSP & NPT
Flanged models :- ANSI 150, PN16 etc.
Private labelled models.
Atex Certified models.
NOTE! Refer to pump Typical Code matrix on page 3 to determine the full
Model No. of your pump.
Please read all warnings and instructions before using this product.
This pump should be used in accordance with the requirements of the Safety, Health & Welfare at Work Act 2005.
All business conducted subject to IDEX Pump Technologies, Ireland. Terms and Conditions of Sale, available on request.
A Unit of IDEX Corporation
IMPORTANT
II 2 GD c
HG-CF-1099 Rev. Q – 05.09.13 Page 1
Table of Contents
Contact Information 2
Temperature Limitations 3
Explanation of Pump Nomenclature 3
Dimensional Drawings 4
Performance Curve 5
Trouble Shooting 6
Technical Data 6
Principle of Pump Operation 7
Installation guide 7
Important warnings and Safety Information 8
Exhaust Safety Instructions 9

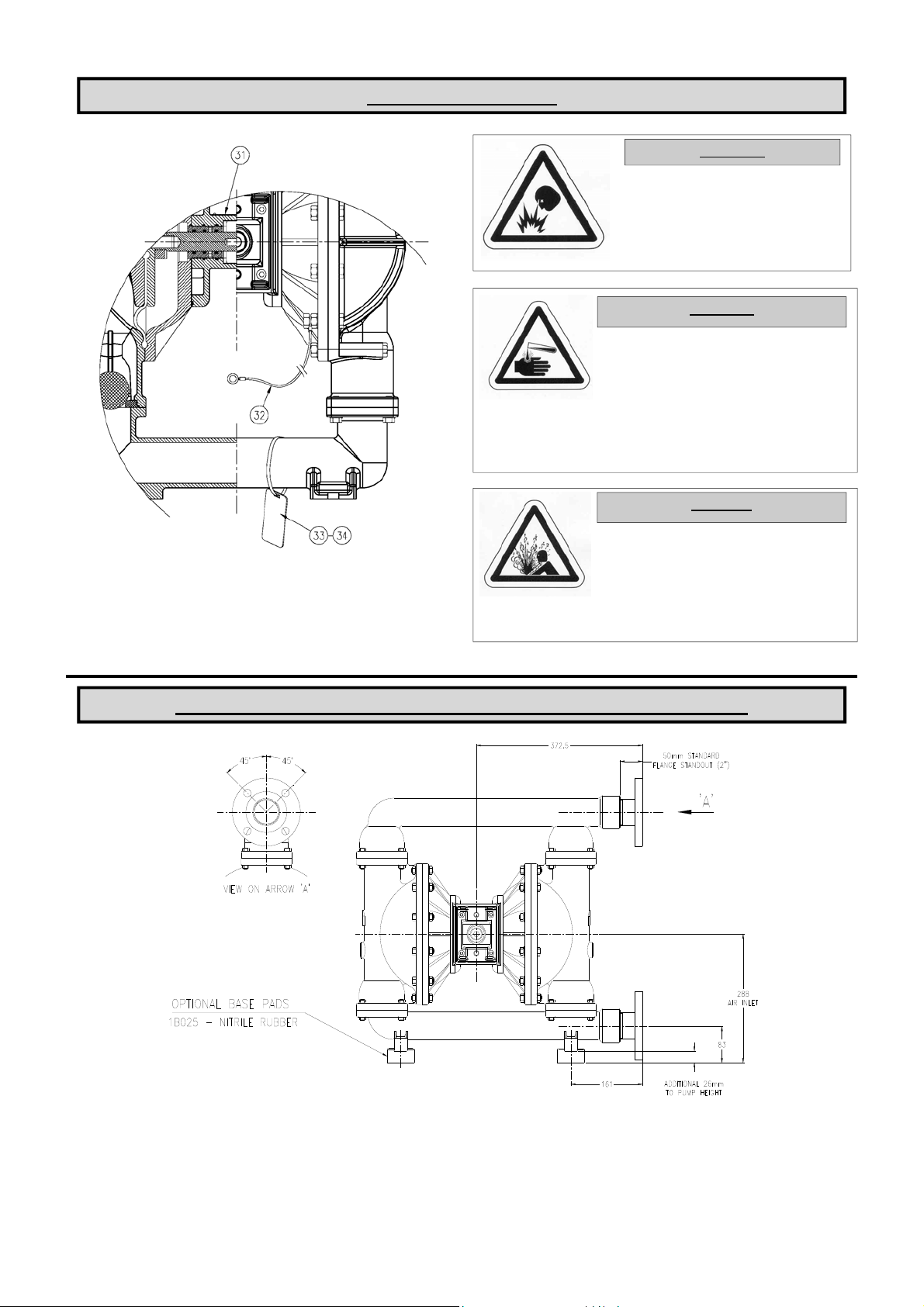

Atex models, Grounding the pump 9
Warranty 10
Service 10
Air Valve Overhaul 10
Wet-side Overhaul 10

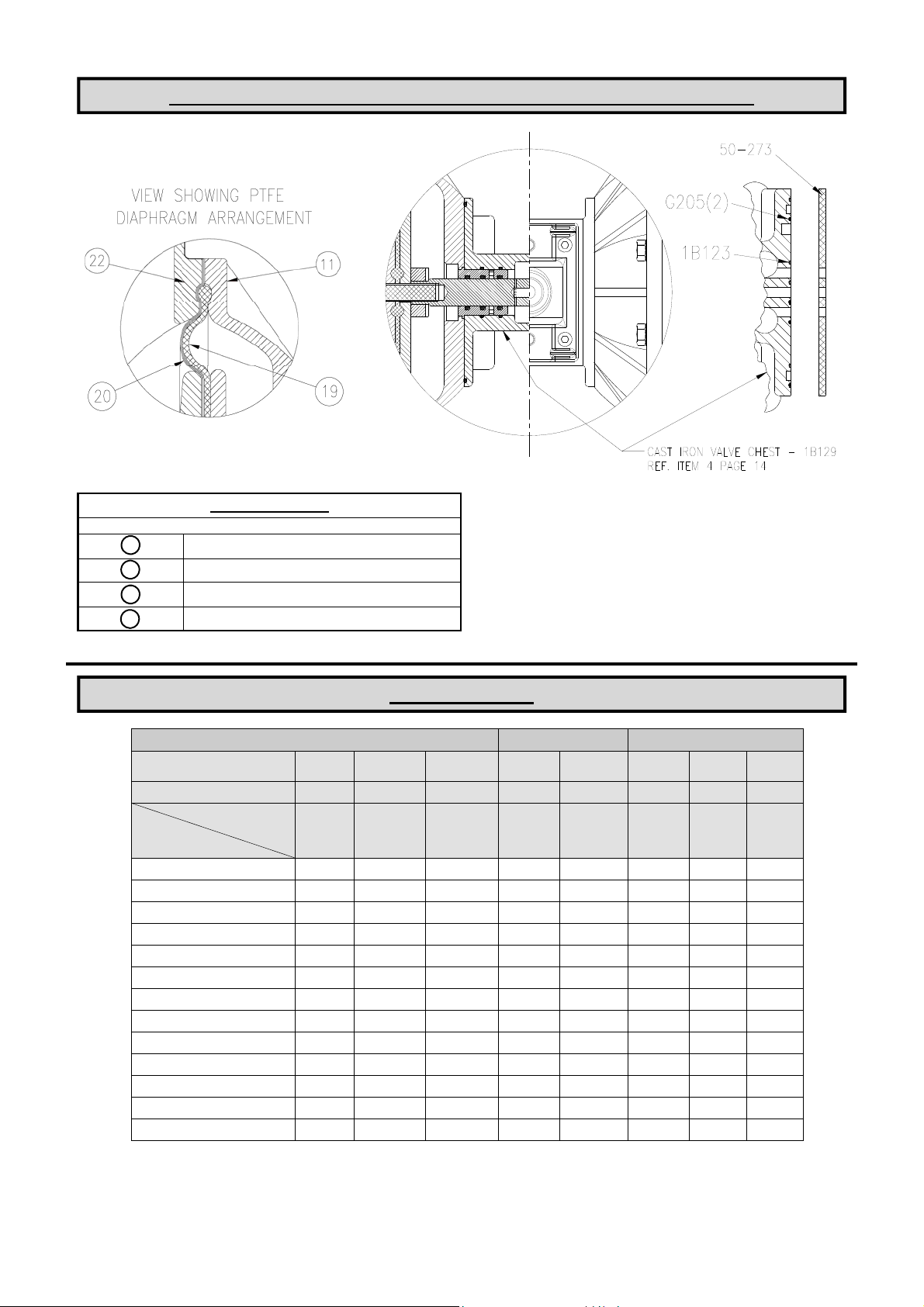

B5005CC, PTFE Diaphragms, Torque Settings 11
Elastomer Table 11

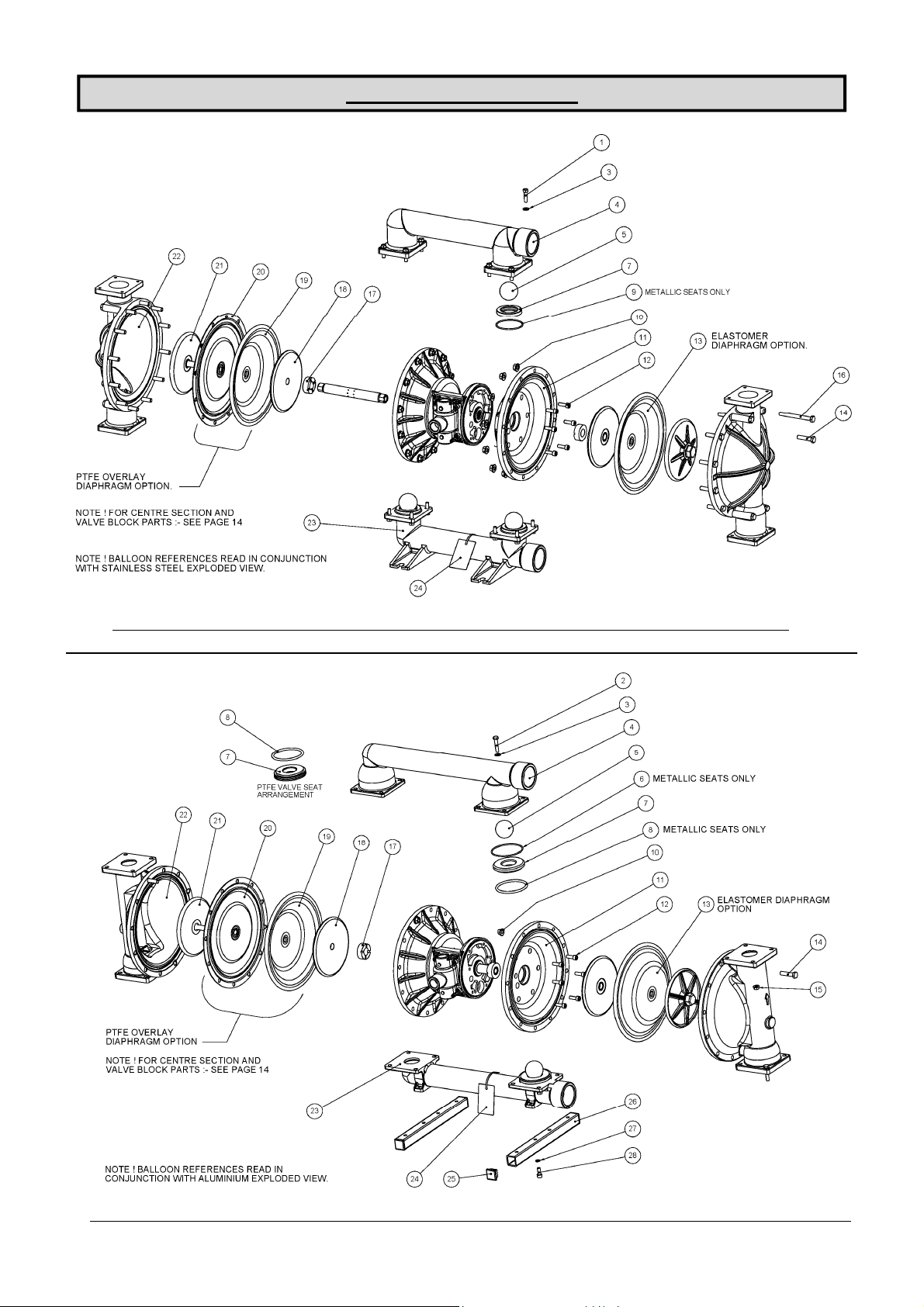

Sectional Drawings 12
Parts List - Wet Side 13
High Temperature Specification 13

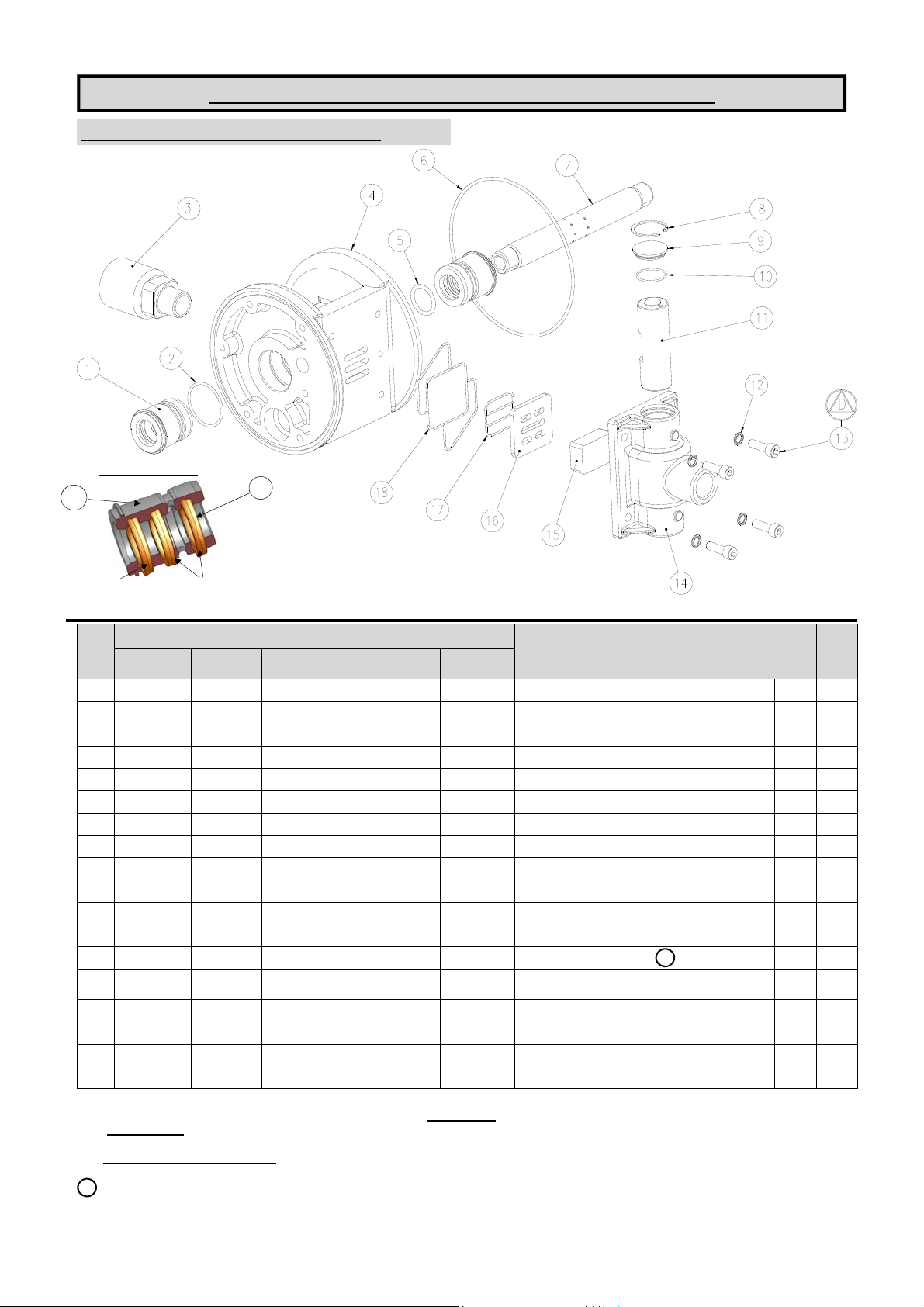

Parts List - Air Side 14
Atex Certified models 15
Flanges (ANSI 150, PN16 etc.) & Base Pads 15
Wet Side Kit structure & Spares Kits 16
Service / Maintenance Log 17
Recycling 17

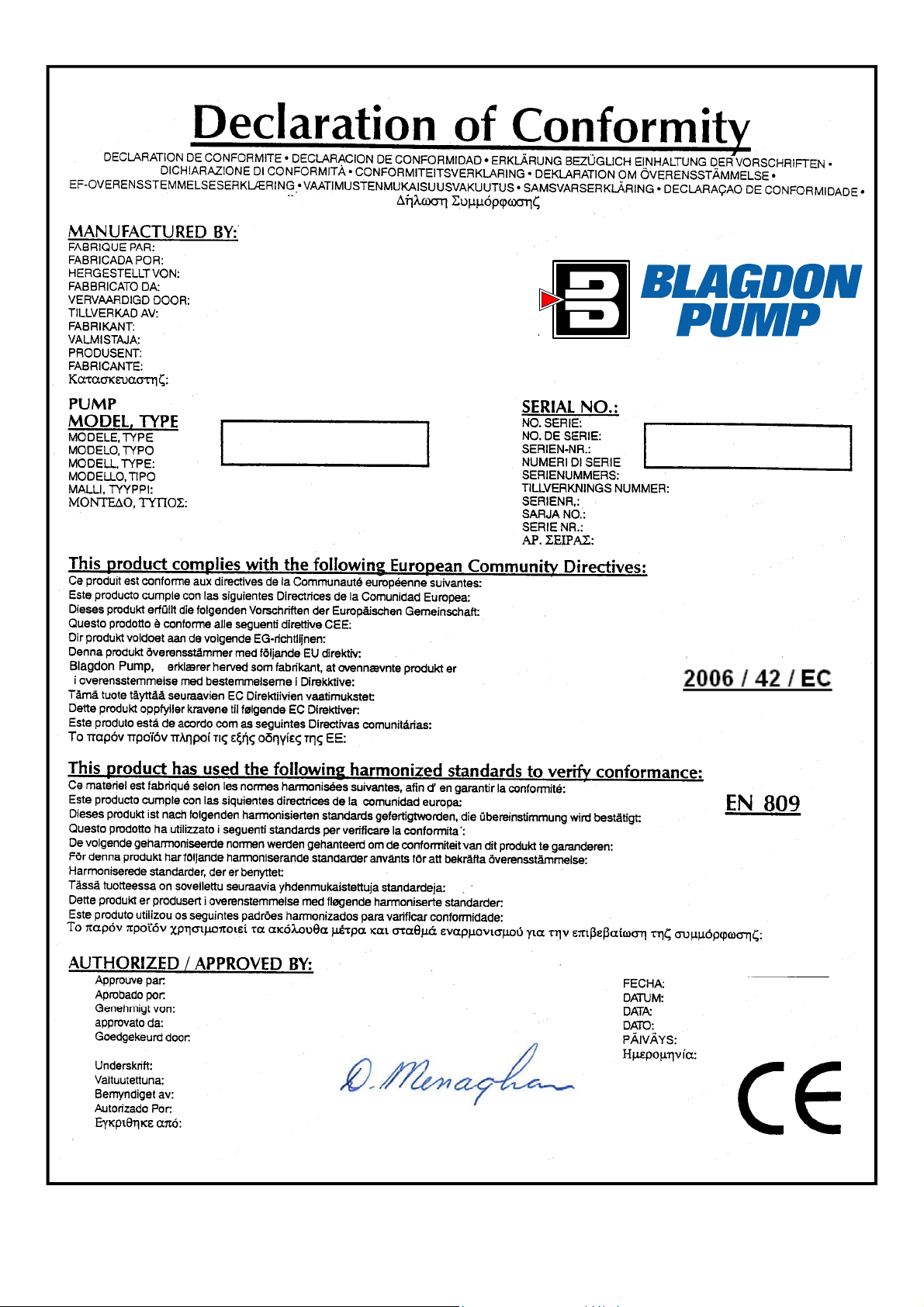

Declaration of Conformity 18
Contact Information
Contact Phone / E-Mail / Fax No.
HG-CF-1099 Rev. Q – 05.09.13 Page 2
IDEX Pump Technologies (Ireland) Ltd.,
A Unit of IDEX Corporation,
R79, Shannon, Co Clare, IRELAND.
TEL. : +353 61 471933 FAX. : +353 61 475046
Web Site : www.blagdonpump.com
E-Mail : sales@blagdonpump.com
Temperature Guide & Pump Code Matrix
Caution - Operating temperature limitations are as follows:
Materials
Buna-n - General purpose, oil resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not
be used with highly polar solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.
EPDM - Shows very good water and chemical resistance. Has poor resistance to oils and solvents, but is fair on
ketones and alcohols.
Neoprene - All purpose. Resistant to vegetable oil. Generally not affected by moderate chemicals, fats greases
and many oils and solvents. Generally attacked by strong oxidising acids, ketones, esters, nitro hydro carbons and
chlorinated aromatic hydrocarbons.
Santoprene® - Injection moulded thermoplastic elastomer with no fabric layer. Long mechanical flex life.
Excellent abrasion resistance.
PTFE - Chemically inert, virtually impervious. Very few chemicals are known to react chemically with PTFE :
molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine trifluoride or
oxygen difluoride which readily liberate free fluorine at elevated temperatures.
Viton® - Shows good resistance to a wide range of oils and solvents : especially all alphatic, aromatic and
halogenated hydrocarbons, acids, animal and vegetable oils.
Polypropylene - High strength, light weight, corrosion resistant polyolefin which easily withstands most chemi-
cals, with no known solvent at room temperature.
TYPICAL CODE = B 50. 05. A A. B B. N N S - LF
PREFIX
B : BLAGDON UK
N : BLAGDON USA
V : VERSA-MATIC
X : ATEX CERTIFIED
Operating Temperatures
Maximum Minimum Optimum
176oF
o
C
80
212oF
o
100
212oF
o
100
212oF
o
100
356oF
o
180
356oF
o
180
158oF
o
C
70
C
C
C
C
C
-18oF
o
-28
-11oF
o
-24
-4oF
o
-20
-10oF
o
-23
32oF
o
C
0
0oF
o
-18
32oF
o
C
0
C
C
C
C
C
50o to 140oF
o
to 60oC
10
50o to 212oF
o
to 100oC
10
50o to 130oF
o
to 54oC
10
50o to 212oF
o
to 100oC
10
50o to 212oF
o
to 100oC
10
75o to 212oF
o
to 100oC
24
50o to 140oF
o
to 60oC
10
SUFFIX - (WHERE APPLICABLE)
LF : LUBE FREE
F : FLANGED - ANSI 150
N : NPT THREADS
H : HYDROSTATIC TEST
(A THREE DIGIT NUMBER SUFFIX
DENOTES A SPECIAL DESIGN
i.e. 301 = OPPOSED SUCTION)
MODEL NO.
50 : 2”
DESIGN LEVEL
WETTED COMPONENTS
A : ALUMINIUM
C: CAST IRON
S : 316L STAINLESS STEEL
NON - WETTED COMPONENTS
A : ALUMINIUM
C : CAST IRON
S : 304 STAINLESS STEEL
VALVE TYPE
B : BALL
W : WEIGHTED BALL
SUCTION ORIENTATION
B : BOTTOM
VALVE SEATS
B : BUNA-N S : ST. STEEL
E : EPDM A : ALUMINIUM
N : NEOPRENE V : VITON
T : PTFE
VALVE BALLS
B : BUNA-N T : PTFE
E : EPDM V : VITON
N : NEOPRENE S : ST. STEEL
D : DELRIN (ACETAL)
DIAPHRAGMS
B : BUNA-N T : PTFE
E : EPDM V : VITON
H : POLYESTER (HYTREL)
N : NEOPRENE
P : POLYURETHANE
R : SANTOPRENE
O : ONE-PIECE PTFE
X : PTFE/VITON (HIGH TEMP.)
(SEE PAGE 12 FOR DETAILS ON SPECIFYING
HIGH TEMPERATURE APPLICATIONS)
Exclusions :
= Not available with ‘X’ prefix pumps.
= Only available on Stainlees Steel wetted models.
HG-CF-1099 Rev. Q – 05.09.13 Page 3
GA Drawings
General Assembly :- B5005 Aluminium Pump, all dimensions +/- 2mm
General Assembly :- B5005 Stainless Steel Pump, all dimensions +/- 2mm
HG-CF-1099 Rev. Q – 05.09.13 Page 4
Performance Curve
HG-CF-1099 Rev. Q – 05.09.13 Page 5
B50 Metallic Pump Performance Curve, Performance based on water at ambient temperature
Trouble Shooting Guide & Technical Data
TROUBLE SHOOTING GUIDE
NOTE :- Check all solutions before dismantling the pump.
PROBLEM CAUSE SOLUTION
Pump will not start Air valve assembly malfunction/Seizure
Erratic flow Diaphragm failure on one side.
Pump strokes but will not
discharge
Fluid discharged from air
exhaust
Intermittent stroke rate Over lubrication
Obstructed fluid line.
Obstructed diaphragm chamber.
Diaphragm failure causing fluid & excessive air to be
expelled through the exhaust.
Diaphragm seal failure.
Air valve system malfunction.
Air connected to exhaust.
Valve ball not seating.
Suction leakage.
Diaphragm failure causing fluid & excessive air to be
expelled through the exhaust.
Diaphragm seal failure.
Air valve system malfunction.
Excessive suction lift.
Suction line leakage.
Valve ball not seating correctly or damaged.
Suction line or strainer clogged.
Diaphragm failure.
Diaphragm Failure.
Loose frontplate.
Diaphragm shaft seal failure.
Air valve system malfunction.
Valve ball not seating / partially obstructed.
Check carrier for freedom of movement. Clean, oil & replace.
Clean line or increase line size.
Remove obstruction.
Replace diaphragm.
Replace shaft seals.
Check all seals in valve chest assembly.
Re-connect to air inlet.
Replace diaphragm.
Check and remove obstruction.
Check and correct.
Replace diaphragm.
Replace shaft seals.
Check all seals in valve chest assembly.
Shorten suction line.
Check and correct.
Check and remove obstruction / replace.
Clear.
Replace diaphragm.
Replace diaphragm.
Re-Torque to manual specifications.
Shut-down pump. Remove air connection
into pump & introduce a small quantity of degreasing agent into air valve and replace
line. Run pump until clear.
Replace seals.
Check all seals in valve chest assembly.
Clear obstruction.
TECHNICAL DATA
FLUID CONNECTIONS CAPACITY MAX SOLIDS MAX DISCHARGE HEAD DISPLACEMENT
2” BSP (F)
2” NPT (F)
MAX. WORKING
PRESSURE
8.6 Bar (125 psi) 3/4” BSP (F)
0 - 500 Litres/Minute
(0 - 110 Gallons/Minute)
AIR INLET TEMPERATURE LIMITS PUMP WEIGHTS :-
3/4” NPT (F)
6 MM
(1/4”)
Determined by Elastomers
(See page 3)
88 Meters
(289 ft)
For overall dimensions see page 4
HG-CF-1099 Rev. Q – 05.09.13 Page 6
PER STROKE
1.9 Litres
(0.42 UK Gallons)
AA :- 35 Kg CC :-70 Kg
CA :- 50 Kg SA :- 60 kg
SC :- 78 Kg SS :- 92 Kg
PRINCIPLE OF PUMP
OPERATION
This ball valve type diaphragm pump is
powered by compressed air and is a 1:1 ratio
design. The inner side of one diaphragm
chamber is alternately pressurised while
simultaneously exhausting the other inner
chamber. This causes the diaphragms, which are
connected by a common shaft secured by plates
to the centres of the diaphragms, to move in a
reciprocating action. (As one diaphragm
performs a discharge stroke the other diaphragm
is pulled to perform the suction stroke in the
opposite chamber.) Air pressure is applied over
the entire inner surface of the diaphragm while
liquid is discharged from the opposite side of
the diaphragm. The diaphragm operates in a
balanced condition during the discharge stroke
which allows the pump to be operated at
discharge heads of over 200 feet (61 meters) of
water.
For maximum diaphragm life, keep the pump as
close to the liquid being pumped as possible.
Positive suction head in excess of 10 feet of
liquid (3.048 meters) may require a back
pressure regulating device to maximize
diaphragm life.
Alternate pressurising and exhausting of the
diaphragm chamber is performed by an
externally mounted, pilot operated, 2 way type
distribution valve. When the spool shifts to one
end of the valve block body, inlet pressure is
applied to one chamber and the other diaphragm
chamber exhausts. When the spool shifts to the
opposite end of the valve body, the pressure to
the chambers is reversed. This alternating
movement of the spool inside the valve body is
Available from
Blagdon Pump :-
1. Pulsation Dampener
2. Filter/Regulator
3. Lubricator
4. Air Dryer

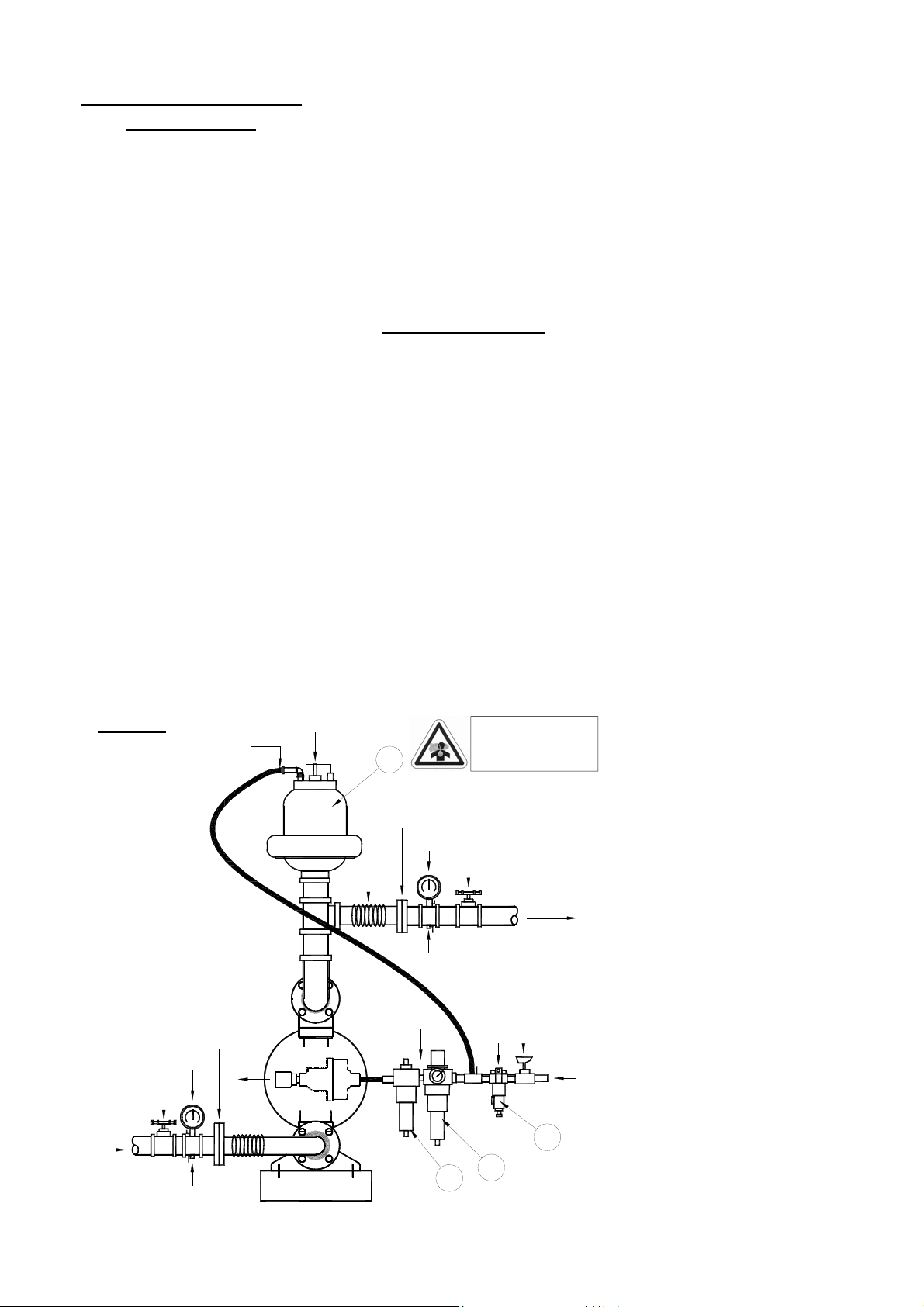

Installation Guide
Fig. 1
Shut-off
Valve
SUCTION
Drain Port
Air Inlet
Pipe Connection
(Style Optional)
Gauge
Exhaust
Flexible
Connection
Air
Air Exhaust
Pulsation
Dampener
controlled by a pilot air pressure signal held
against the diaphragm shaft, between seals in the
diaphragm shaft bushes. This signal is released,
triggering the movement of the spool, when pilot
holes in the diaphragm shaft align with the held
pilot signal, sending the signal to exhaust, which
in-turn causes a pressure imbalance around the
spool, sending it to the opposite end of the valve
body. This simultaneously sends inlet pressure
to the opposite chamber.
The chambers are connected by manifolds with a
suction and discharge ball valve for each
chamber, maintaining flow in one direction
through the pump.
INSTALLATION

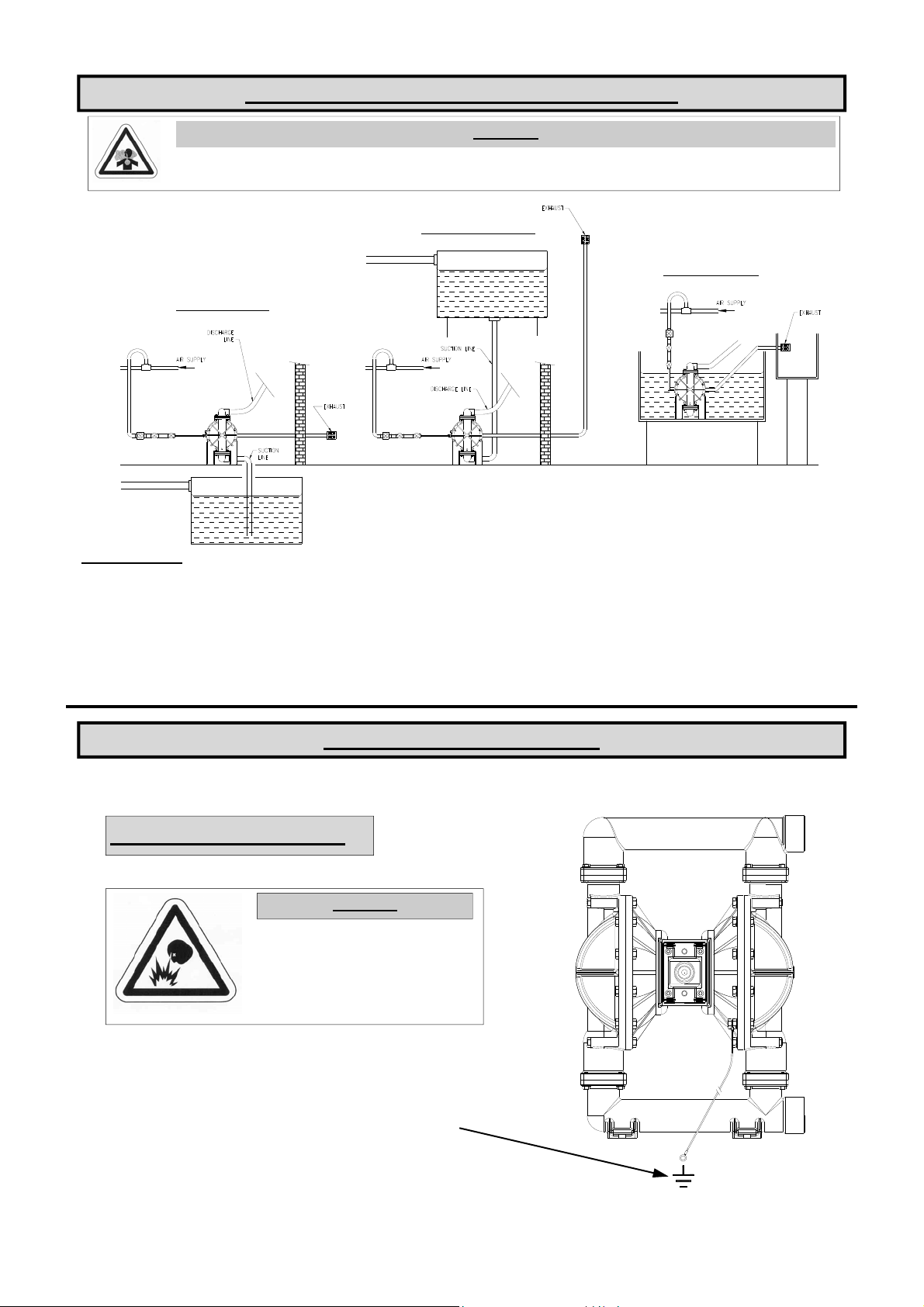

The typical installation shown in FIG. 1 is only a
guide to selecting and installing system
components. Your installation will depend on
the type of fluid being pumped and your
application needs. To reduce the risk of serious
bodily injury and damage to property, never use
fluids in this pump which are not compatible
with the wetted components. Contact your local
distributor or the manufacturer for system design
assistance & compatibility if necessary.
Mount the pump in an upright position. Failure
to ensure an upright position may result in loss
of or poor priming characteristics. Ensure the
pump is securely mounted to avoid movement
and possible risk of bodily injury.
PRESSURE The pump delivers the same
pressure at the discharge outlet as the air
pressure applied at the air inlet (unless pump is
configured as a 2:1 ratio model).
CAUTION !
The air exhaust should be piped
to an area for safe disposition of
the product being pumped, in the
1
Pipe Connection
(Style Optional)
Flexible
Connection
Filter
Regulator/Lubricator
Gauge
Drain Port
event of diaphragm failure.
Shut-off
Valve
Air Dryer
2
3
DISCHARGE
Air Shut-Off
Valve
4
AIR
INLET
NOTE: Pressure Regulator (H) should be
installed where air supply could exceed 125
psi.
SAFETY
Your BLAGDON PUMP is a high performance
unit capable of achieving high outputs at high
efficiencies. However, as is common with
pneumatic equipment, the pump efficiencies is
reliant upon the air being clean, dry and filtered.
Failure to comply with these requirements may
lead to loss of performance and reduced
component life and in extreme cases, permanent
damage to the pump.
To avoid leaks, ensure that all fluid connections
are tight. The use of PTFE thread tape correctly
applied should be used to ensure 100% leak
proof connections. Failure to ensure 100%
sealability of the suction connection could
adversely affect suction performance.
If you are pumping hazardous fluids, or
operating the pump in an enclosed area, it is
essential that the exhaust from the pump is
piped away to a safe location. When pumping
hazardous fluids the above instructions must be
adhered to in order to ensure safe operating
procedures. (Under certain operating
conditions the failure of internal components
can lead to the pumped fluid being exhausted
via the pump exhaust outlet).
WARNING
NEVER place your hands over or near the
pump suction inlet. Powerful suction could
cause serious bodily injury.
FLUSH THE PUMP This pump was
tested with water containing an oil-based rust
inhibitor. If this solution could contaminate or
react with the fluid you are pumping, flush the
pump thoroughly with a solvent/detergent to
clean internal components. The solvent/
detergent must be compatible with the pump
materials of construction. Care should be taken
to flush the pump each time it is disassembled
for maintenance or repair.
CAUTION
All BLAGDON PUMPS are built lubricated
with grease during assembly and need no
further lubrication. If the use of oil cannot be
avoided, this will not present any problems. A
light No. 2 class lithium grease is
recommended. Other grades may cause the Air
Logic System to operate intermittently, thereby
causing a loss of output and failure to operate.
Other seals are available for “clean room”
conditions
If the pump accelerates or is running too fast
due to a lack of fluid, then stop it immediately
by shutting off the air supply. A dry pump will
accelerate to a high speed causing wear to
elastomers.
If the fluid you are pumping tends to dry up or
set when it is not moving, then flush the pump
as often as necessary to prevent the fluid from
drying in the pump. Drain the pump thoroughly
before storing.
If feasible, invert pump to allow any fluid to
drain from the non-return valves.
HG-CF-1099 Rev. Q – 05.09.13 Page 7
Important Warnings and Safety Information
IMPORTANT
Read these safety warnings and instructions in this manual completely, before installation and start-up of the pump. It
is the responsibility of the purchaser to retain this manual for reference. This manual must be kept with, and supplied
with the pump at all times. Failure to comply with the recommendations stated in this manual will damage the pump,
and void factory warranty. These instructions are available if required, in the language or languages of the country or
countries in which the equipment is used. Please refer to the manufacturer for details.
WARNING!
This pump is pressurized internally with air pressure during operation. Always make certain that all bolting is in good condition and that
all of the correct bolting is reinstalled during assembly. End-user must ensure correct fitting of Inlet / Outlet connections. Crossed
threads or over tightening of connections will result in leaks. Quick action/release connections are not recommended. If their use is
unavoidable, the levers must be locked to avoid them being forced apart in a hazardous manner.
WARNING!
Before maintenance or repair, shut off the compressed air line, bleed the pressure, and disconnect the air line from the pump. The discharge line may be pressurized and must be bled of its pressure. End-user must ensure correct regulation of air supply pressure, as any
increase in air pressure results in a similar increase in product pressure if stalled-out.
WARNING!
Before doing any maintenance on the pump, be certain all pressure is completely vented from the pump, suction, discharge, piping, and
all other openings and connections. Be certain the air supply is locked out or made non-operational, so that it cannot be started while
work is being done on the pump. Be certain that approved eye protection and protective clothing are worn at all times in the vicinity of
the pump. Failure to follow these recommendations may result in serious injury or death.
WARNING!
Airborne particles and loud noise hazards. Wear ear and eye protection.
WARNING!
Take action to prevent static sparking. Fire or explosion can result, especially when handling flammable liquids. The pump, piping,
valves, containers or other miscellaneous equipment must be grounded. Refer to exhaust safety instructions on page 9.
WARNING!
When used for toxic or aggressive fluids, the pump should always be flushed clean prior to disassembly. User must ensure chemical
compatibility, and any pressure / temperature limits are not exceeded. These instructions include all the information for relevant
diaphragm temperature limits. Pump temperature range can also be found on data-plate attached to the pump.
If pump is not used for more than 5 days, care must be taken when restarting. If in any doubt, remove pump from line and flush with a
suitable cleaner. Solidified deposits within the pump may cause damage to the diaphragms.
CAUTION!
Before pump operation, inspect all gasketed fasteners for looseness caused by gasket creep. Re-torque loose fasteners to prevent
leakage. Follow recommended torques stated in this manual. In cases of excess vibration, Blagdon recommend fitting a Pulsation
Dampener to remove effects of pulse actions from pump operation. Flexible connections can be used, but must be kept to a minimum
length necessary to avoid sharp flexing or straining movements
HG-CF-1099 Rev. Q – 05.09.13 Page 8
.
Exhaust Safety when pumping hazardous liquids
WARNING!
In the event of diaphragm rupture, pumped material may enter the air end of the pump, and be discharged into the atmosphere. If pumping
a product which is hazardous or toxic, the air exhaust must be piped to an appropriate area for safe disposition.
Flooded Suction Installation
Submerged Installation
Suction Lift Installation
Exhaust Safety :-
When a diaphragm fails during operation, pumped liquid can enter and contaminate the air side of the pump. If diaphragm failure is not
severe, i.e. a small split or hole, then the pump can continue to run, with air being forced into the product being pumped. If however the
failure is more serious, then the pump may stop, with fluid or fumes being expelled through the exhaust. Under these conditions it is
recommended that the exhaust is piped away to a safe area. In standard suction lift conditions this can simply be done by piping from the
exhaust connection to a safe area. Multiple installations can be piped to a common connection, then to a safe area. In flooded suction
conditions the exhaust must be taken to a point higher than the fluid level to prevent any siphoning away. In submerg ed conditions en sure
exhaust is piped away above fluid level.
In all conditions ensure exhaust outlet is not expelling across a non-conductive surface. The exhaust must not be placed less than 100mm
from any non-conductive surface, as this may generate a propagating brush discharge resulting in a possible ignition source.
Atex models (see also page 15)
Grounding the pump :-
WARNING!
Take action to prevent static sparking. Fire or
explosion can result, especially when handling
flammable liquids. The pump, piping, valves,
containers or other miscellaneous equipment
must be grounded.
This unit is supplied with a natural earth ground cable. This cable is 2
meters in length and permanently connected through a stud at one
end to the pump centre casting. The other end is free to connect to
the nearest available suitable point to provide a natural earth ground.
This must be done to reduce the risk of electro-static sparking.
Refer to table on Page 13 for details and relevant Part Numbers.
HG-CF-1099 Rev. Q – 05.09.13 Page 9
IMPORTANT ! Read these instructions completely, before installation and start-up. It is the responsibility of the purchaser to
retain this manual for reference. Failure to comply with the recommendations stated in this manual will damage the pump, and
void factory warranty.
SERVICE
The following sections give a general
overview on how to service all
models of BLAGDON Diaphragm
Pumps. For details on individual part
numbers, quantities, materials, etc.,
please consult the parts list supplied
with the pump.
NOTE : Before commencing
any service or maintenance work
on the pump, ensure that the air
supply has been disconnected or
isolated.
AIR VALVE OVERHAUL
PNEUMATIC TYPE Remove the 4
screws securing the valve block to
the valve chest, together with any
associated gaskets or seals.
Remove slide valve plate & slide
valve from the valve block assembly.
Clean all parts thoroughly and
inspect for excessive wear, replacing
where necessary.
The slide valve and valve plate
contact faces should be flat and free
from scratches. A light polishing on a
flat surface with a fine abrasive paper
will remove most scratches.
If excessive wear is suspected in the
valve block bore or valve carrier,
remove the valve block plugs and
withdraw the valve carrier. Check
valve block plug o-rings for wear or
attack & replace where required.
Clean the valve carrier & valve block
bore with white spirits to remove any
oil films.
NOTE : The nominal
diametrical clearance between the
valve carrier and the valve block
block bore should be 0.05 -
0.09mm. A clearance in excess of
this will cause the valve system to
run erratically.
Apply a light grease to the valve
block plug O-rings when reassembling into the valve block bore.
Any damage to the O-ring may cause
the valve system to malfunction.
Re-assemble the valve block
assembly & re-torque in accordance
to the settings shown in the parts list.
In the event of a complete air-side
overhaul, the pump should be disassembled down to the centre
section assembly as described later
in the “Wet-Side Overhaul” section.
With the valve block assembly
dismantled, remove the inner covers
where appropriate.
A careful note of the position of all
related seals and gaskets should be
made to facilitate re-assembly.
Remove diaphragm shaft bushes,
where appropriate, and check all
seals and ‘O’ rings for wear or
damage. If worn, replace
immediately.
NOTE:- The integrity of the
diaphragm shaft seals is essential
for the correct functioning of all
pneumatically actuated valve
systems.
Check the diaphragm shaft for
excessive wear as this will result in
premature seal failure. Replace as
required. Lubricate all components
and re-assemble as detailed above,
in reverse order. Ensure the correct
position of all components detailed in
all sectional assembly drawings.
WET-SIDE OVERHAUL
REPLACING BALL VALVES
Remove discharge manifold from
pump assembly together with
associated valve balls, seats and ‘O’
rings.
NOTE :- The orientation of the
valve seat relative to the valve ball
should be noted as incorrect
positioning may result in a
performance loss.
Turn pump through 180
the suction manifold. Clean and
inspect the components. Check for
any wear or damage and replace as
required.
NOTE :- Ball or valve seat wear
may result in loss of performance
and suction lift.
Re-assemble the valve balls/seats
and ensure manifolds are adequately
torqued to the settings shown in the
parts list.
REPLACING DIAPHRAGMS
Remove both suction and discharge
manifolds as detailed in the previous
o
and remove
section, removing all ball valves,
seats and ‘O’ rings.
Loosen and remove both outer
covers from the pump assembly.
The orientation of the covers should
be noted so as to facilitate reassembly.
Holding one of the frontplates in a
vice, (‘soft jaws’ should be fitted), or
with an adjustable spanner, loosen
and remove the frontplate from the
opposite end. Remove the
diaphragm, backplate and bumpstop
from diaphragm shaft.
Carefully withdraw the diaphragm
shaft from the centre section and
hold the free end in a vice, holding
between the flats machined on the
end. Loosen and remove the
frontplate and remove the diaphragm
together with backplate and
bumpstop (where fitted).
NOTE :- Care should be taken with
all plastic, coated and hygienic
pumps, so that the surface of the
frontplate is not damaged.
Thoroughly clean all parts and check
for wear, damage, swelling, cracking,
delamination and chemical attack.
Replace components where required.
NOTE :- Rubber diaphragms
should be replaced if they are
worn to such an extent that the
fabric re-enforcing is evident on
the surface of the diaphragm.
For pumps fitted with PTFE
diaphragms, a light coating of grease
should be applied to the back-up
diaphragm prior to re-assembly.
Before re-assembly, it is advisable to
check the condition of the diaphragm
shaft seal/’O’ rings for wear or attack.
If either is evident, it is recommended
that they be replaced.
Assemble the diaphragms onto the
shaft in a reverse sequence to their
removal. Care should be taken as to
the orientation of the diaphragm
relative to the front and back plates.
All diaphragms have “AIR SIDE”
moulded onto one side. The
backplate must be fitted adjacent to
the AIR SIDE of the diaphragm.
HG-CF-1099 Rev. Q – 05.09.13 Page 10
PTFE Diaphragms, Torque Settings & Sectional Drawing B5004CC
MATERIAL
QTY.
TORQUE SETTINGS
A FRONTPLATE - 108 Nm (79 lbs/ft)
B OUTER COVERS - 24 - 25 Nm (18 - 19 lbs/ft)
C MANIFOLDS - 24 - 25 Nm (18 - 19 lbs/ft)
D VALVE BLOCK - 22 Nm (16 lbs/ft)
05 series release, require additional items :Transition Plate - 50-273
Port Seal - 1B123
O-Rings - G205 2 off
For remaining Valve Block parts see page 14.
NOTE ! 05 Series pumps with Cast Iron centre’s no longer
require the transition plate and additional seals, being built to
same specification as Aluminium centre’s.
Elastomer Table
NOTE! Pumps fitted with all Cast Iron Valve Chests 1B129 prior to
ELASTOMERS COMMON TO ALL MODELS
DESCRIPTION
VALVE
BALL
VALVE
BALL - WTD.
DIAPHRAGM VALVE
REF. NO 5 5 13 7 9 7 8 6
4
BUNA-N 1B010 1B079 1B004 50-276 G029 50-044 G420 G457
EPDM 1B052 1B080 1B002 50-277 G031 50-046 G418 G459
VITON 1B055 1B088 1B003 - G119 50-047 G427 G460
NEOPRENE 1B056 1B027 1B001 50-275 G149 50-045 G426 G458
PTFE 1B053 - SEE 19 & 20 - G111 50-048 G416 G461
ONE-PIECE PTFE - - 50-221 - - - - POLYESTER - - 1B029 - - - - DELRIN 1B065 - - - - - - POLYURETHANE - - 1B048 - - - - SANTOPRENE - - 50-233 - - - - STAINLESS STEEL 1B109 - - 1B051 - 50-072 - ALUMINIUM - - - 1B009 - - - -
4
2
AA, CA & CC
SEAT
4
O-RING VALVE
4
SEAT
4
SA, SC & SS
O-RING O-RING
4
4
For details on ordering Wet-Side kits refer to items marked in main table and also to the details on page 16.
HG-CF-1099 Rev. Q – 05.09.13 Page 11
Sectional Drawings B5004
Sectional General Assembly :- B5005 All Aluminium Pump, refer to page 13 Parts List table for item Ref. Nos.
Sectional General Assembly :- B5005 Stainless Steel / Aluminium Pump, refer to page 13 Parts List table for item Ref. Nos.
HG-CF-1099 Rev. Q – 05.09.13 Page 12
Wet Side Parts List - (Ref. Nos. are common to all models, pages 12)
PART NUMBER DESCRIPTION QTY
ALUMINUM
REF
(COMMON)
No.
1 A041 - A042 - BOLT - HEX. HD. M8 x 30
2 A005 - A040 - BOLT - HEX. HD. M8 x 35
3 C013 - C044 - WASHER M8
4 50-255
5 SEE TABLE - 1B109 - VALVE BALL
6 SEE TABLE - - - O-RING (METALLIC SEATS ONLY)
7 SEE TABLE - SEE TABLE - VALVE SEAT
8 SEE TABLE - - - O-RING (METALLIC & PTFE SEATS ONLY)
9 SEE TABLE - - - O-RING (METALLIC SEATS ONLY)
10 B507 - B508 - FLANGED NUT - SERRATED M10
11 1B026 1B073 50-303 - INNER COVER
12 D028 - D310 - SOCKET CAP SCREW M8 x 25
13 SEE TABLE - - - DIAPHRAGM
14 A151 - A145 - BOLT - HEX. HD. M10 x 45
15 B505 - B506 - FLANGED NUT - SERRATED M8
16 A496 - - - BOLT - HEX. HD. M10 x 100
17 1B015 - - 1B177 BUMP STOP
18 1B021 - - - BACKPLATE
19 1B054 - - 1B003 SUPPORT DIAPHRAGM
20 1B039 - - - DIAPHRAGM - PTFE OVERLAY
21 SA10042 SA10044 SA10044 - FRONTPLATE ASSEMBLY
22 50-253 50-258 50-052 - OUTER COVER
23 50-254
24 SP475 - - - NAMEPLATE
25 - - 1B034 - BASE LEG CAP
26 - - 50-074 BASE LEG
27 C165 - C173 - WASHER - SPRING M8
28 D490 - D372 - SOCKET CAP SCREW M8 x 16
31 1A060 - - - NAMEPLATE - SERIAL NO./MODEL NO.
32 SA10528 - - - GROUNDING LEAD ASSEMBLY
33 SP467 - - - ATEX NAMEPLATE
34 SP474 - - - TIE-LOK TIE
50-274
50-265
CAST IRON STAINLESS
50-260 50-032
50-259
STEEL
50-130
50-033
50-129
TEMPERATURE
HIGH
-
-
-
-
Atex models only :-
DISCHARGE MANIFOLD - BSP
DISCHARGE MANIFOLD - NPT
SUCTION MANIFOLD - BSP
SUCTION MANIFOLD - NPT
(REPLACES ITEM 27)
C
C
B
B
A
16
16
16
1
1
4
4
4
4
4
24
2
12
2
24/16
16
8
2
2
2
2
2
2
1
1
1
4
2
4
4
1
1
1
1
- Wet Side Kits - These items are available in a recommended spares kit. Please refer to matrix on page 16 for details on part numbers
for ordering purposes or refer to your local stockist / distributor for further details.
Note! Wet Side Kits only include valve seats if the original parts were rubber :- i.e. Buna-N, Neoprene etc.
B
Indicates Torque setting required. See page 11 for details.
HIGH TEMPERATURE INSTALLATIONS
In situations where the temperature of the fluid to be pumped is likely to exceed 100°C, a high t emp erature pump co de must be s pecified. This
is signified using an ‘X’ in the last part of the pump code as shown.
“XTS” in place of “TTS”. Reference Pump Code matrix on page 3
This indicates the following specification amendments :-
Diaphragm shaft seals will be changed from Polurethane to Viton. Back-up diaphragms and any bumpstops will be changed to Viton. In
extreme cases only, any gaskets could be changed to a higher temperature spec., and the diaphragm shaft bushes could be changed from
plastic to metal.
Refer to main table above and on page 14 for quantities / pump.
HG-CF-1099 Rev. Q – 05.09.13 Page 13
Air Side Parts List - (Ref. Nos. are common to all models)
Centre Section / Valve Block components :-
Lip Seal Positions
1
5
Outer Seal -
Lip faces out
REF
No.
ALUMINIUM
(COMMON)
1 50-315 - - 50-281 1B020 DIAPHRAGM SHAFT BUSH
2 G091 - - G324 - O-RING
3 1B114 - - - - SILENCER
4 50-257 1B129 50-304 - - VALVE CHEST
5 50-207 - - G323 50-227 SHAFT SEAL
6 G112 - - - - O-RING
7 SA10041 - - - - DIAPHRAGM SHAFT
8 H125 CIRCLIP
9 1C021 VALVE BLOCK PLUG
10 G130 - - G329 - O-RING
11 1B124 - - - - VALVE CARRIER
12 C165 - C173 - - SPRING WASHER M8
13 D028 - D310 - - SOCKET CAP SCREW M8 x 25
14 - - 50-342
15 50-251 - - - - SLIDE VALVE
16 50-248 - - - - SLIDE VALVE PLATE
17 1B123 - - 1B173 - PORT SEAL
18 50-261 - - 50-282 - VALVE BLOCK SEAL
Inner Seals -
Lip faces in over, towards holes
PART NUMBER
CAST IRON STAINLESS
STEEL
50-345
HIGH
TEMPERATURE
-
-
LUBE
FREE
-
-
VALVE BLOCK - BSP
VALVE BLOCK - NPT
DESCRIPTION
D
QTY
2
4
1
1
6
2
1
2
2
2
1
4
4
1
1
1
1
1
1
- Air Side Kits - See page 16 for all available kits
Spares Kits
- Valve Block Sub-Assemblies - See page 16 for all available kits
Indicates torque setting required. See page 11 for details.
B
HG-CF-1099 Rev. Q – 05.09.13 Page 14
Atex Certified Models
Refer to Parts List on page 13 for parts additional for Atex Certified
models. All models are certified as shown on page 1 of this manual.
Maximum temperature of fluid to be handled must be specified at time
of order. Pump must be marked with this information. For grounding
details refer to page 9.
WARNING!
Take action to prevent static sparking. Fire or
explosion can result, especially when handling
flammable liquids. The pump, piping, valves,
containers or other miscellaneous equipment
must be grounded.
WARNING!
When used for toxic or aggressive fluids, the pump
should always be flushed clean prior to disassembly.
User must ensure chemical compatibility, and any
pressure / temperature limits are not exceeded.
These instructions include all the information for
temperature range can also be found on data-plate attached to the pump.
If pump is not used for more than 5 days, care must be taken when restarting.
If in any doubt, remove pump from line and flush with a suitable cleaner.
Solidified deposits within the pump may cause damage to the diaphragms.
relevant diaphragm temperature limits. Pump
CAUTION!
Before pump operation, inspect all gasketed fasteners for looseness caused by gasket creep. Re-torque
loose fasteners to prevent leakage. Follow recommended torques stated in this manual. In cases of
excess vibration, Blagdon recommend fitting a Pulsa-
from pump operation. Flexible connections can be used, but must be kept to a
minimum length necessary to avoid sharp flexing or straining movements
tion Dampener to remove effects of pulse actions
.
Pumps fitted with Suction / Discharge Pipe Flanges & Base Pads
Pumps can be supplied complete with pipe flanges to a set standout from the end faces of the inlet / outlet manifolds. This distance is
specified above, with additional data, i.e. flange bolt hole positions and any changes in overall pump dimensions.
Flanges are normally supplied as ANSI 150 matched to the normal inlet / outlet size of the pump.
Base pads would normally be supplied loose in order to mount pump level.
i.e. a 2” BSP model would be fitted with 2” ANSI 150 flanges. Other flanges can be ordered i.e ANSI 300, PN16
Refer to Supplier / Manufacturer for details regarding Part Nos., available types, etc.
HG-CF-1099 Rev. Q – 05.09.13 Page 15
Wet Side Kit Structure
Diaphragm Pump Wet-Side Kits - Part Number Structure
The format of the Wet-Side Kit part number is broken down as shown below. The number always starts with ‘WSK’ followed by the model
number, diaphragm letter, ball valve letter and pump material. If rubber seats are used, an ‘R’ is added to the end. A ‘W’ is added following
the pump body material letter if pump is fitted with weighted balls. These are not available for sizes below 1”. An ‘S’ is used in place of the
‘M’ is cases where the Stainless Steel model uses different seals than the Aluminium model. This applies to later 06 pumps, and all B15
and B50 pumps.
NOTE! This part number system does not apply to pumps designated :X4001, X5001 or X7501. Please consult the pump Service & Operating Manuals for Wet-Side Kit numbers for these models.
If in doubt please consult Sales at Blagdon Pump.
TYPICAL CODE = WSK 50 N N M W 3
PART NUMBER :-
WSK : ALL NEW KITS (SA :- OLD KITS)
MODEL NUMBER :
06 : 1H : 15 : 25 : 40 : 50 : 75
DIAPHRAGMS :
B : BUNA-N P : POLYURETHANE
E : EPDM R : SANTOPRENE
H : POLYESTER T : PTFE
N : NEOPRENE V : VITON
O : ONE PIECE PTFE X : HIGH TEMP.
VALVE BALLS :
B : BUNA-N S : 316 ST. STEEL
D : DELRIN (ACETAL) T : PTFE
E : EPDM V : VITON
N : NEOPRENE
VALVE SEAT / HIGH PRESSURE DESIGNATOR :
R : RUBBER OPTIONS (ONLY USED IF PUMP
TRIMMED WITH RUBBER SEATS)
1 : SERIES 1 (ORIGINAL MODEL)
3 : FULL FLOW SERIES
WEIGHTED BALL :
W : WEIGHTED VALVE BALL.
PUMP BODY :
M : METALLIC (ALUMINIUM - DEFAULT)
N : NON-METALLIC
S : STAINLESS STEEL 15 & 50 MODELS
K : KYNAR MODELS
Z : HYGIENIC MODELS
Spares Kits
The following details refer to the main recommended spares ki ts available for your Blagdon Pump. Not all combinations and trim
options are listed here. Please refer to your local stockist / distributor if you require further details or availability of other kits.
- Air Side Kits - ASK5004 - Standard Air side kit.
ASK5004-LF - Lube Free Air Side Kit.
SA10501 - Pumps c/w Cast Iron Valve Chests.
- Valve Block Sub-Assemblies -
SA10491 - BSP
SA10492 - NPT
SA10495 - Cast Iron Valve Chests. - BSP
- Wet Side Kits - WSK5004BBM WSK5004BBMR WSK5004ETM WSK5004EEM WSK5002EEWR
WSK5004NNM WSK5004NNMR WSK5004NNWR WSK5004PBM WSK5002RTM
WSK5004TTM WSK5004TSS WSK5004VSM WSK5004VVM WSK5002RTM
- Filter/Regulator/Lubricator - FRL XFRL50 - (Standard unit for all models.)
- Base Pads 1B025 - Available for all models on request (4 per pump)
HG-CF-1099 Rev. Q – 05.09.13 Page 16
Service / Maintenance Log
Date Details Completed
Notes
RECYCLING
Many components of BLAGDON air operated double diaphragm pumps are made of recyclable materials. We encourage pump
users to recycle worn out parts and pumps whenever possible, after any hazardous pumped fluids are thoroughly flushed.
HG-CF-1099 Rev. Q – 05.09.13 Page 17
IDEX Pump Technologies (Ireland) Ltd.,
A Unit of IDEX Corporation,
R79, Shannon, Co Clare,
IRELAND.
TEL. : +353 61 471933
FAX. : +353 61 475046
Web Site : www.blagdonpump.com
E-Mail : sales@blagdonpump.com
Date : December 01 2009
Des Monaghan,
Production & Technical Manager
HG-CF-223 (REV 6)
HG-CF-1099 Rev. Q – 05.09.13 Page 18
Loading...
