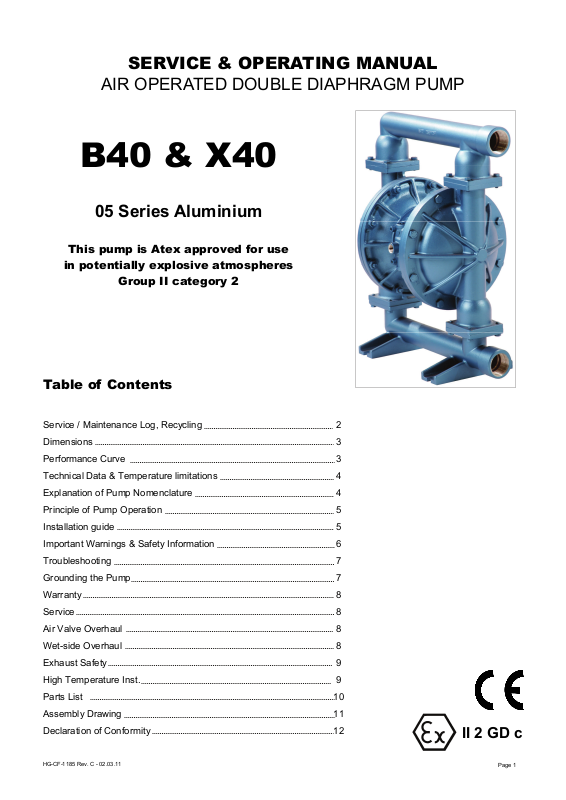

SERVICE & OPERATING MANUAL

AIR OPERATED DOUBLE DIAPHRAGM PUMP

B40 & X40

05 Series Aluminium

This pump is Atex approved for use

in potentially explosive atmospheres

Group II category 2

Table of Contents

Service / Maintenance Log, Recycling 2

Dimensions 3

Performance Curve 3

Technical Data & Temperature limitations 4

Explanation of Pump Nomenclature 4

Principle of Pump Operation 5

Installation guide 5

Important Warnings & Safety Information 6

Troubleshooting 7

Grounding the Pump 7

Warranty 8

Service 8

Air Valve Overhaul 8

Wet-side Overhaul 8

Exhaust Safety 9

High Temperature Inst. 9

Parts List 10

Assembly Drawing 11

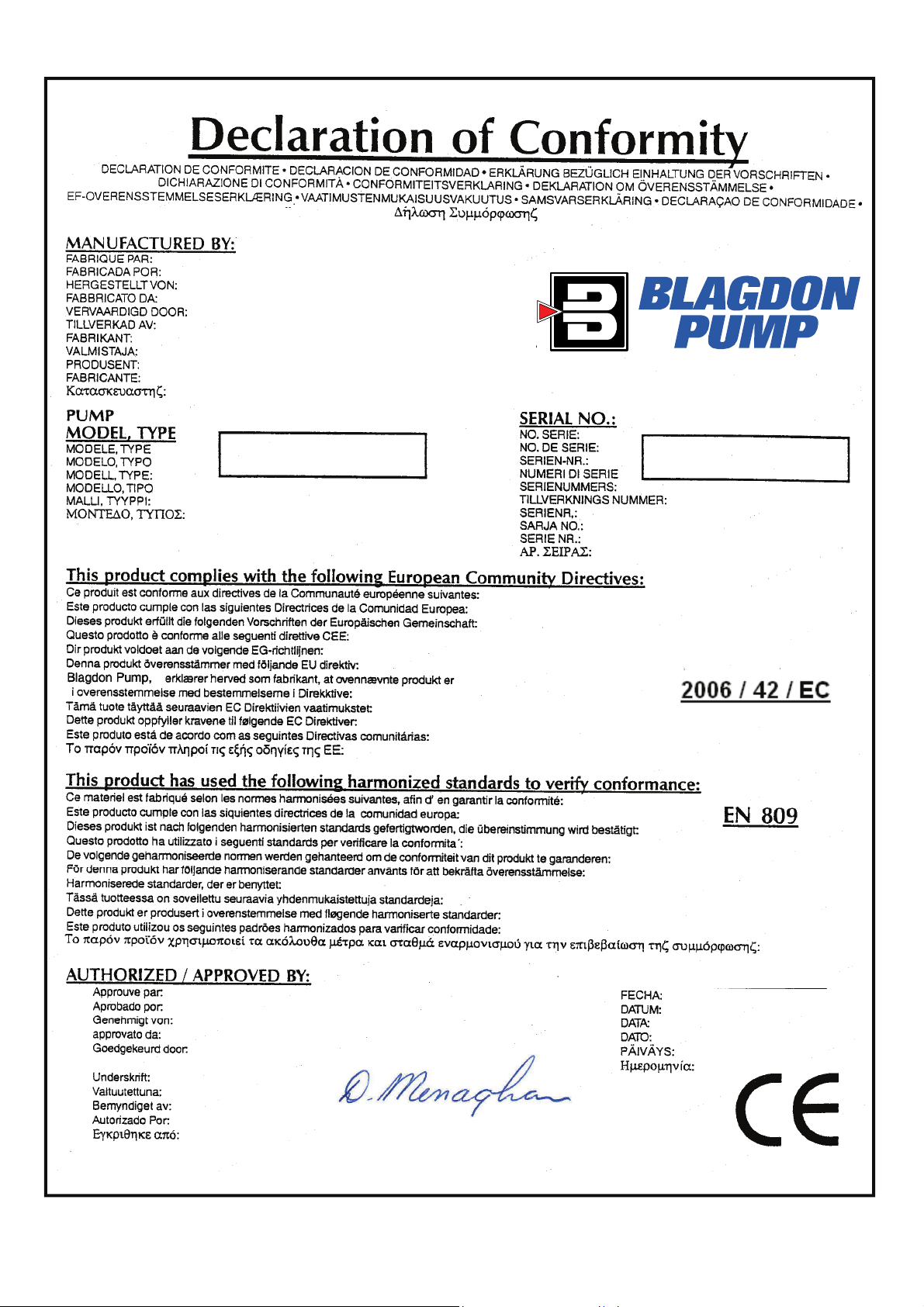

Declaration of Conformity 12

HG-CF-1185 Rev. C - 02.03.11

II 2 GD c

Page 1

Service / Maintenance Log

Date Details Completed

RECYCLING

Many components of BLAGDON air operated double diaphragm pumps are made of recyclable materials. We encourage pump users to recycle worn out parts and pumps whenever possible, after any hazardous pumped fluids are thoroughly flushed.

Contact Phone / Fax No.

HG-CF-1185 Rev. C - 02.03.11

Contact Information

Page 2

GA Drawing & Performance Curve

General Assembly :-B4005 Aluminium pump,all dimensions +/- 3mm

B40 Metallic Pump Performance curve, performance based on water at ambient temperature

HG-CF-1185 Rev. C - 02.03.11

Page 3

TECHNICAL DATA

FLUID CONNECTIONS CAPACITY MAX SOLIDS MAX DISCHARGE HEAD DISPLACEMENT/STROKE

1”1/2 BSP 0 - 320 Litres/Minute

(0 - 70 Gallons/Minute)

MAX. WORKING PRESSURE AIR INLET TEMPERATURE LIMITS PUMP WEIGHTS :-

8.6 Bar (125 psi) 3/8” BSP (F) Determined by Elastomers AA :- 23 Kg SA :- 42 Kg

6 MM (1/4”)

88 Meters

(289 ft)

1.2 Litres

(0.3 UK Gallons)

SS :- 49 Kg SC :- 49 Kg

Caution - Operating temperature limitations are as follows:

Materials

Buna-n - General purpose, oil resistant. Shows good solvent, oil, water and hydraulic fluid resistance. Should not

be used with highly polar solvents like acetone and MEK, ozone, chlorinated hydrocarbons and nitro hydrocarbons.

EPDM - Shows very good water and chemical resistance. Has poor resistance to oils and solvents, but is fair on

ketones and alcohols.

Neoprene - All purpose. Resistant to vegetable oil. Generally not affected by moderate chemicals, fats greases

and many oils and solvents. Generally attacked by strong oxidising acids, ketones, esters, nitro hydro carbons and chlorinated aromatic hydrocarbons.

Santoprene® - Injection moulded thermoplastic elastomer with no fabric layer. Long mechanical flex life.

Excellent abrasion resistance.

PTFE - Chemically inert, virtually impervious. Very few chemicals are known to react chemically with PTFE :

molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures.

Viton® - Shows good resistance to a wide range of oils and solvents : especially all alphatic, aromatic and

halogenated hydrocarbons, acids, animal and vegetable oils.

Polypropylene - High strength, light weight, corrosion resistant polyolefin which easily withstands most chemi-

cals, with no known solvent at room temperature.

TYPICAL CODE = B40 05 A A B B E T S - L F

MODEL

B40 - STANDARD X40 - ATEX CAT. 2

Operating Temperatures

Maximum Minimum Optimum

176oF

212oF

100

212oF

100

212oF

100

356oF

180

356oF

180

158oF

-18oF

-28

-11oF

-24

-4oF

-20

-10oF

-23

32oF

0oF

-18

32oF

50o to 140oF

to 60oC

50o to 212oF

to 100oC

50o to 130oF

to 54oC

50o to 212oF

to 100oC

50o to 212oF

to 100oC

75o to 212oF

to 100oC

50o to 140oF

to 60oC

LUBE FREE

DESIGN LEVEL

WETTED COMPONENTS

A : ALUMINIUM

NON - WETTED COMPONENTS

A : ALUMINIUM

VALVE TYPE

B : BALL W : WEIGHTED BALL

SUCTION ORIENTATION

B : BOTTOM

This pump should be used in accordance with the requirements of the Safety, Health & Welfare at Work Act 2005.

All business conducted subject to IDEX Pump Technologies, Ireland. Terms and Conditions of Sale, available on request.

VALVE SEATS A : ALUMINIUM S : 316 ST. STEEL

B : BUNA-N V : VITON E : EPDM N : NEOPRENE P : POLYURETHANE H : POLYESTER

VALVE BALLS B : BUNA-N S : 316 ST. STEEL

T : PTFE V : VITON E : EPDM N : NEOPRENE

DIAPHRAGMS B : BUNA-N P : POLYURETHANE

E : EPDM R : SANTOPRENE H : POLYESTER T : PTFE N : NEOPRENE V : VITON O : ONE PIECE PTFE

IMPORTANT

IDEX Pump Technologies (Ireland) Ltd., A Unit of IDEX Corporation, R79, Shannon, Co Clare, IRELAND. TEL. : +353 61 471933 FAX. : +353 61 475046 Web Site : www.blagdonpump.com E-Mail : sales@blagdonpump.com

HG-CF-1185 Rev. C - 02.03.11

Page 4

PRINCIPLE OF PUMP

OPERATION

This ball valve type diaphragm pump is powered by compressed air and is a 1:1 ratio design. The inner side of one diaphragm chamber is alternately pressurised while simultaneously exhausting the other inner chamber. This causes the diaphragms, which are connected by a common shaft secured by plates to the centres of the diaphragms, to move in a reciprocating action. (As one diaphragm performs a discharge stroke the other diaphragm is pulled to perform the suction stroke in the opposite chamber.) Air pressure is applied over the entire inner surface of the diaphragm while liquid is discharged from the opposite side of the diaphragm. The diaphragm operates in a balanced condition during the discharge stroke which allows the pump to be operated at discharge heads of over 200 feet (61 meters) of water.

For maximum diaphragm life, keep the pump as close to the liquid being pumped as possible. Positive suction head in excess of 10 feet of liquid (3.048 meters) may require a back pressure regulating device to maximize diaphragm life.

Alternate pressurising and exhausting of the diaphragm chamber is performed by an externally mounted, pilot operated, 2 way type distribution valve. When the spool shifts to one end of the valve block body, inlet pressure is applied to one chamber and the other diaphragm chamber exhausts. When the spool shifts to the opposite end of the valve body, the pressure to the chambers is reversed. This alternating movement of the spool inside the valve body is

Available from

Blagdon Pump :-

1. Pulsation Dampener

2. Filter/Regulator

3. Lubricator

4. Air Dryer

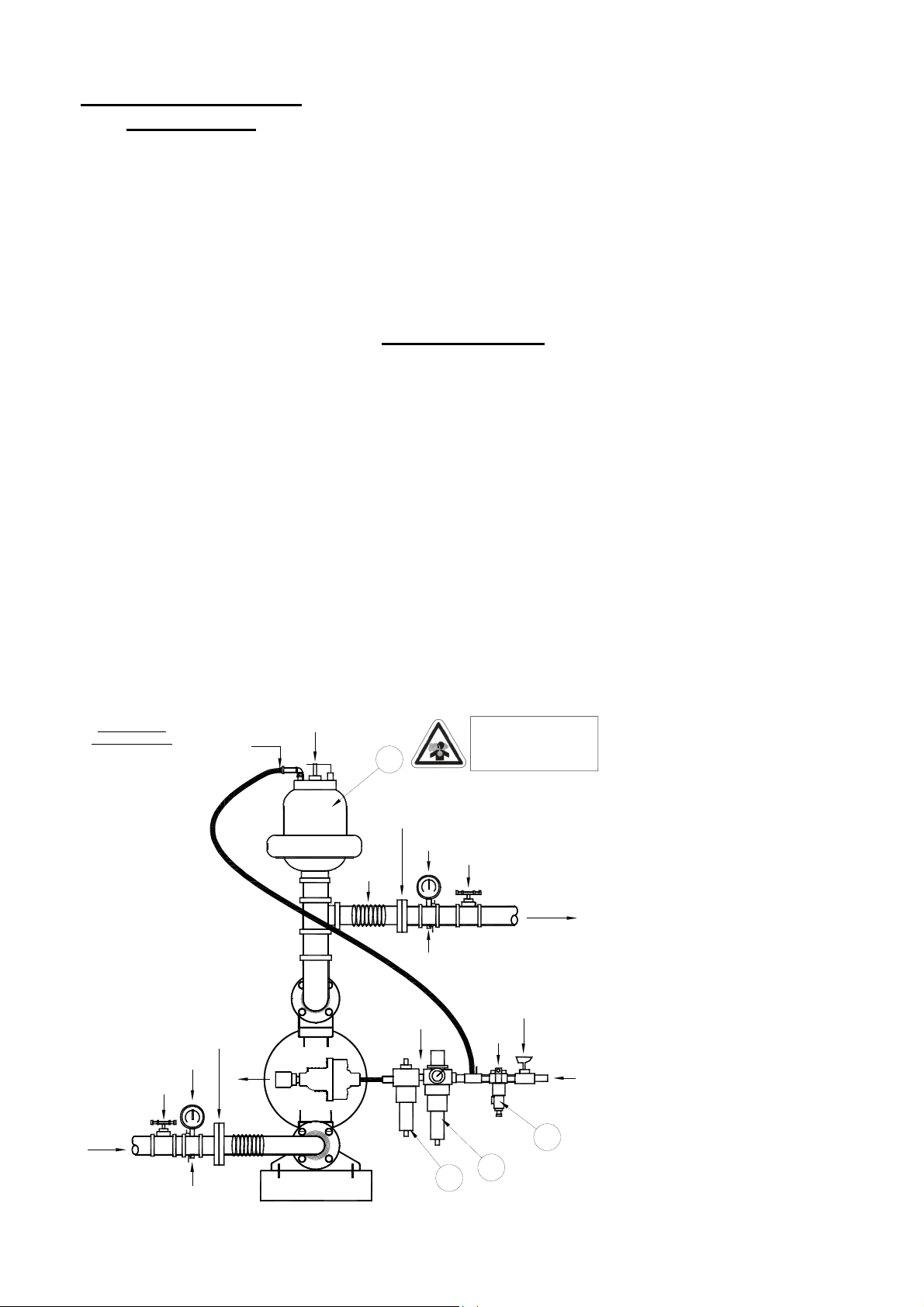

Installation Guide

Fig. 1

Pipe Connection (Style Optional)

Gauge

Shut-off

Valve

SUCTION

Drain Port

Air Inlet

Exhaust

Flexible

Connection

Air

Air Exhaust

Pulsation

Dampener

controlled by a pilot air pressure signal held against the diaphragm shaft, between seals in the diaphragm shaft bushes. This signal is released, triggering the movement of the spool, when pilot holes in the diaphragm shaft align with the held pilot signal, sending the signal to exhaust, which in-turn causes a pressure imbalance around the spool, sending it to the opposite end of the valve body. This simultaneously sends inlet pressure to the opposite chamber.

The chambers are connected by manifolds with a suction and discharge ball valve for each chamber, maintaining flow in one direction through the pump.

INSTALLATION

The typical installation shown in FIG. 1 is only a guide to selecting and installing system components. Your installation will depend on the type of fluid being pumped and your application needs. To reduce the risk of serious bodily injury and damage to property, never use fluids in this pump which are not compatible with the wetted components. Contact your local distributor or the manufacturer for system design assistance & compatibility if necessary.

Mount the pump in an upright position. Failure to ensure an upright position may result in loss of or poor priming characteristics. Ensure the pump is securely mounted to avoid movement and possible risk of bodily injury.

PRESSURE The pump delivers the same

pressure at the discharge outlet as the air pressure applied at the air inlet (unless pump is configured as a 2:1 ratio model).

CAUTION !

The air exhaust should be piped to an area for safe disposition of the product being pumped, in the

Pipe Connection (Style Optional)

Flexible

Connection

Filter Regulator/Lubricator

Gauge

Drain Port

event of diaphragm failure.

Shut-off

Valve

Air Dryer

DISCHARGE

Air Shut-Off

Valve

AIR INLET

NOTE: Pressure Regulator (H) should be installed where air supply could exceed 125 psi.

SAFETY

Your BLAGDON PUMP is a high performance unit capable of achieving

high outputs at high efficiencies. However, as is common with pneumatic equipment, the pump efficiencies is reliant upon the air being clean, dry and filtered. Failure to comply with these requirements may lead to loss of performance and reduced component life and in extreme cases, permanent damage to the pump.

To avoid leaks, ensure that all fluid connections are tight. The use of PTFE thread tape correctly applied should be used to ensure 100% leak proof connections. Failure to ensure 100%

sealability of the suction connection could adversely affect suction performance.

If you are pumping hazardous fluids, or operating the pump in an enclosed area, it is essential that the exhaust from the pump is piped away to a safe location. When pumping hazardous fluids the above instructions must be adhered to in order to ensure safe operating procedures. (Under certain operating conditions the failure of internal components can lead to the pumped fluid being exhausted via the pump exhaust outlet).

WARNING

NEVER place your hands over or near the

pump suction inlet. Powerful suction could cause serious bodily injury.

FLUSH THE PUMP This pump was

tested with water containing an oil-based rust inhibitor. If this solution could contaminate or react with the fluid you are pumping, flush the pump thoroughly with a solvent/detergent to clean internal components. The solvent/ detergent must be compatible with the pump materials of construction. Care should be taken to flush the pump each time it is disassembled for maintenance or repair.

CAUTION

All BLAGDON PUMPS are built lubricated with grease during assembly and need no further lubrication. If the use of oil cannot be avoided, this will not present any problems. A light No. 2 class lithium grease is recommended. Other grades may cause the Air Logic System to operate intermittently, thereby causing a loss of output and failure to operate. Other seals are available for “clean room” conditions If the pump accelerates or is running too fast due to a lack of fluid, then stop it immediately by shutting off the air supply. A dry pump will accelerate to a high speed causing wear to elastomers.

If the fluid you are pumping tends to dry up or set when it is not moving, then flush the pump as often as necessary to prevent the fluid from drying in the pump. Drain the pump thoroughly before storing.

If feasible, invert pump to allow any fluid to drain from the non-return valves

HG-CF-1185 Rev. C - 02.03.11

Page 5

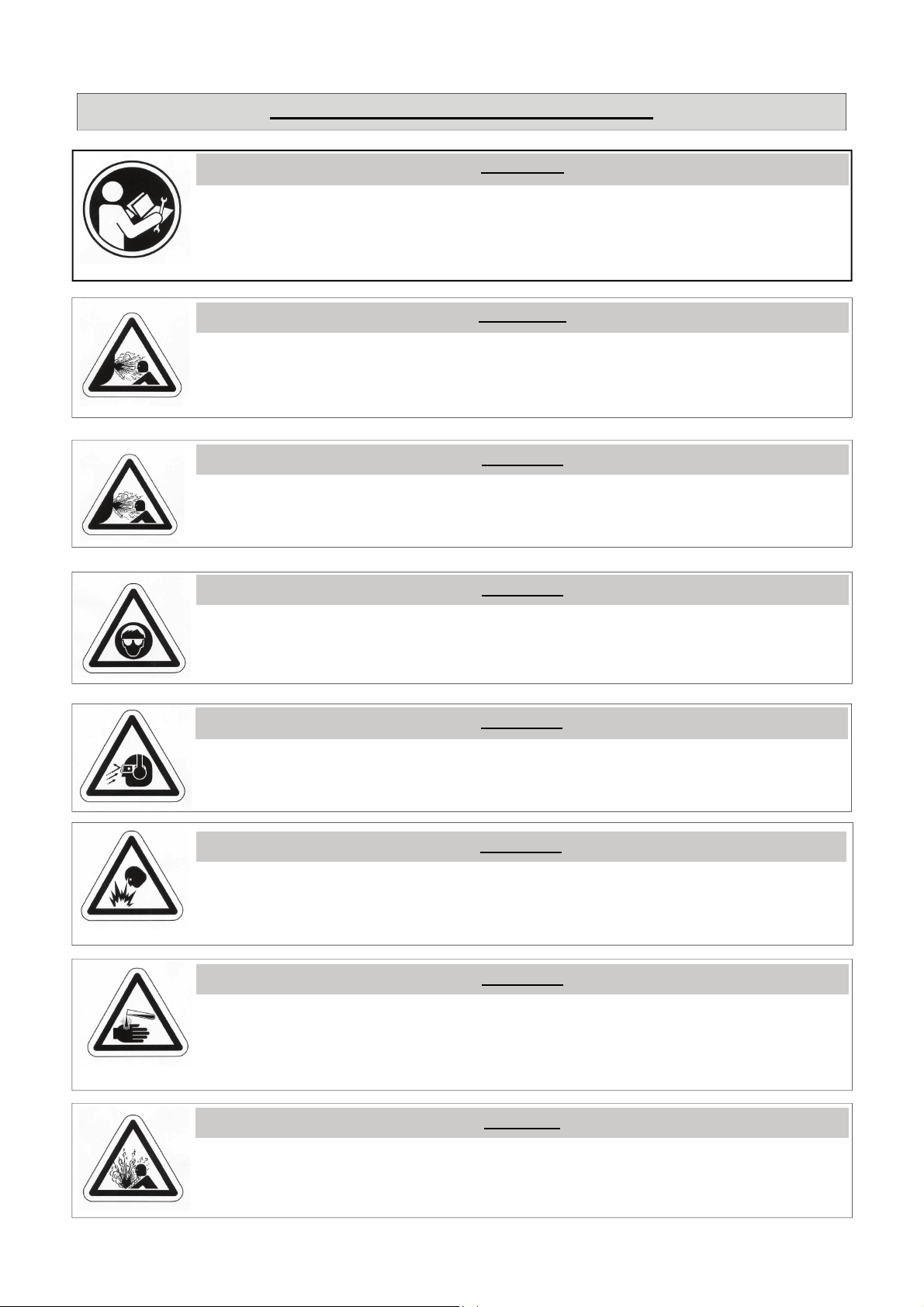

Important Warnings and Safety Information

IMPORTANT

Read these safety warnings and instructions in this manual completely, before installation and start-up of the pump. It is the responsibility of the purchaser to retain this manual for reference. This manual must be kept with, and supplied with the pump at all times. Failure to comply with the recommendations stated in this manual will damage the pump, and void factory warranty. These instructions are available if required, in the language or languages of the country or countries in which the equipment is used. Please refer to the manufacturer for details.

IMPORTANT!

This pump is pressurized internally with air pressure during operation. Always make certain that all bolting is in good condition and that all of the correct bolting is reinstalled during assembly. End-user must ensure correct fitting of Inlet / Outlet connections. Crossed threads or over tightening of connections will result in leaks. Quick action/release connections are not recommended. If their use is unavoidable, the levers must be locked to avoid them being forced apart in a hazardous manner.

WARNING!

Before maintenance or repair, shut off the compressed air line, bleed the pressure, and disconnect the air line from the pump. The discharge line may be pressurized and must be bled of its pressure. End-user must ensure correct regulation of air supply pressure, as any increase in air pressure results in a similar increase in product pressure if stalled-out.

WARNING!

Before doing any maintenance on the pump, be certain all pressure is completely vented from the pump, suction, discharge, piping, and all other openings and connections. Be certain the air supply is locked out or made non-operational, so that it cannot be started while work is being done on the pump. Be certain that approved eye protection and protective clothing are worn at all times in the vicinity of the pump. Failure to follow these recommendations may result in serious injury or death.

WARNING!

Airborne particles and loud noise hazards. Wear ear and eye protection.

WARNING!

Take action to prevent static sparking. Fire or explosion can result, especially when handling flammable liquids. The pump, piping, valves, containers or other miscellaneous equipment must be grounded. Refer to exhaust safety instructions on page 9.

WARNING!

When used for toxic or aggressive fluids, the pump should always be flushed clean prior to disassembly. User must ensure chemical compatibility, and any pressure / temperature limits are not exceeded. These instructions include all the information for relevant diaphragm temperature limits. Pump temperature range can also be found on data-plate attached to the pump. If pump is not used for more than 5 days, care must be taken when restarting. If in any doubt, remove pump from line and flush with a suitable cleaner. Solidified deposits within the pump may cause damage to the diaphragms.

HG-CF-1185 Rev. C - 02.03.11

CAUTION!

Before pump operation, inspect all gasketed fasteners for looseness caused by gasket creep. Re-torque loose fasteners to prevent leakage. Follow recommended torques stated in this manual. In cases of excess vibration, Blagdon recommend fitting a Pulsation Dampener to remove effects of pulse actions from pump operation. Flexible connections can be used, but must be kept to a minimum

length necessary to avoid sharp flexing or straining movements

Page 6

TROUBLE SHOOTING GUIDE

NOTE :- Check all solutions before dismantling the pump.

PROBLEM CAUSE SOLUTION

Pump will not start Air valve assembly malfunction/Seizure

Erratic flow Diaphragm failure on one side.

Pump strokes but will not discharge

Fluid discharged from air exhaust

Intermittent stroke rate Over lubrication

Obstructed fluid line. Obstructed diaphragm chamber. Diaphragm failure causing fluid & excessive air to be expelled through the exhaust. Diaphragm seal failure. Air valve system malfunction. Air connected to exhaust.

Valve ball not seating. Suction leakage. Diaphragm failure causing fluid & excessive air to be expelled through the exhaust. Diaphragm seal failure. Air valve system malfunction.

Excessive suction lift. Suction line leakage. Valve ball not seating correctly or damaged. Suction line or strainer clogged. Diaphragm failure.

Diaphragm Failure. Loose frontplate.

Diaphragm shaft seal failure. Air valve system malfunction. Valve ball not seating / partially obstructed.

Check carrier for freedom of movement. Clean, oil & replace. Clean line or increase line size. Remove obstruction. Replace diaphragm.

Replace shaft seals. Check all seals in valve chest assembly. Re-connect to air inlet.

Replace diaphragm. Check and remove obstruction. Check and correct. Replace diaphragm.

Replace shaft seals. Check all seals in valve chest assembly.

Shorten suction line. Check and correct. Check and remove obstruction / replace. Clear. Replace diaphragm.

Replace diaphragm. Re-Torque to manual specifications.

Shut-down pump. Remove air connection into pump & introduce a small quantity of degreasing agent into air valve and replace line. Run pump until clear. Replace seals. Check all seals in valve chest assembly. Clear obstruction.

ATEX Certified units :- X4005AA.. These models are certified to :-

Non-electrical equipment for potentially explosive atmospheres : EN13463-1 : 2001, ‘c’ - Internal control of production.

II 2 GD c

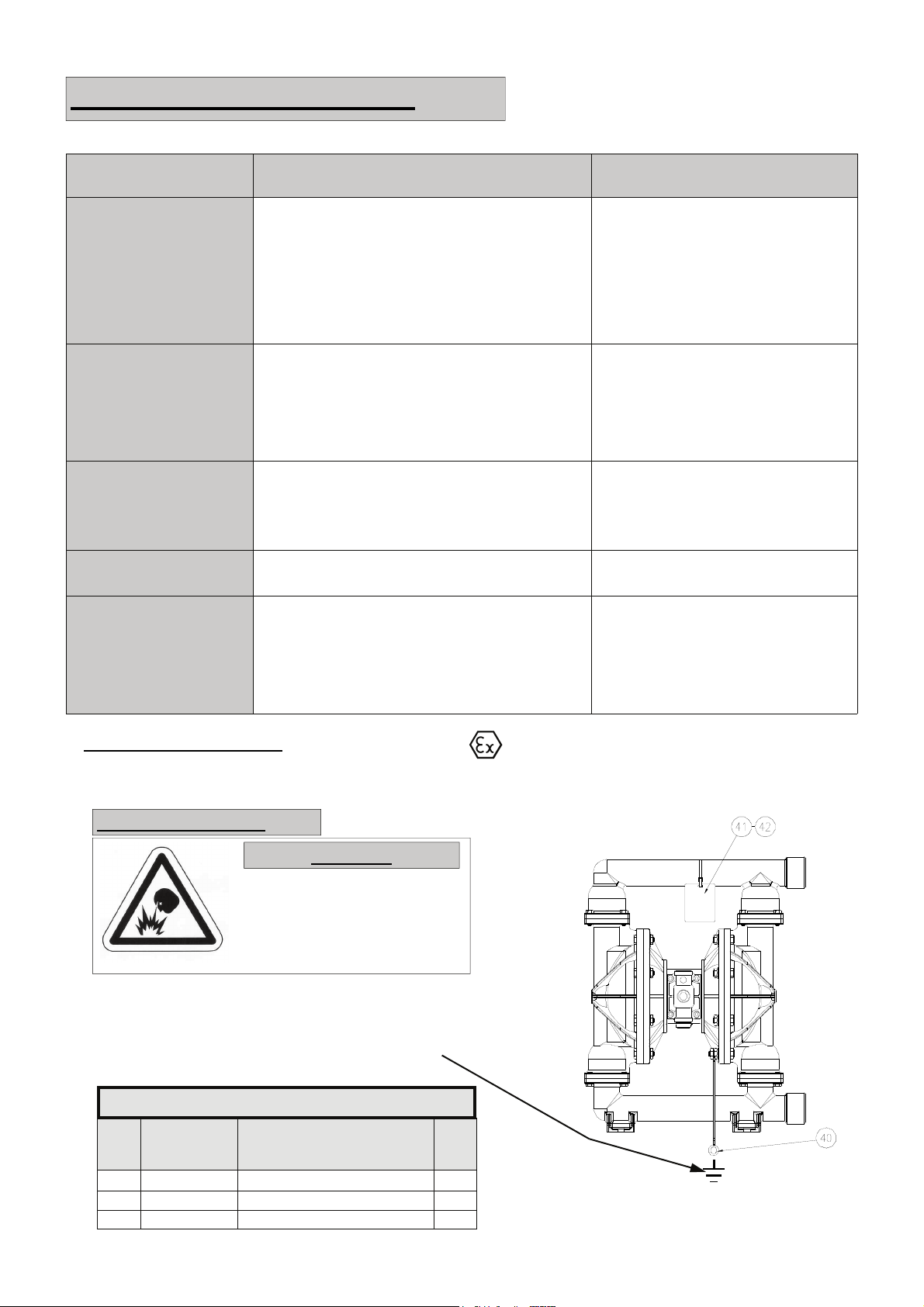

Grounding the pump :-

WARNING!

The Atex approved units are supplied with a natural earth ground cable. This cable is 2 meters in length and permanently connected through a nut and bolt at the inner cover casting. The other end is free to connect to the nearest available suitable point to provide a natural earth ground. This must be done to reduce the risk of electro-static sparking.

ADDITIONAL PARTS FOR ATEX CAT. 2 PUMPS

REF

No.

40 SA10288 GROUNDING LEAD 1

41 SP467 ATEX I/D TAG 1

42 SP473 TIE-LOK TIE 1

PART

NUMBER

DESCRIPTION

QTY

HG-CF-1185 Rev. C - 02.03.11

Page 7

IMPORTANT!

Read these instructions completely, before

is the responsibility of the purchaser to retain this manual for reference. Failure to comply with the recommendations stated in this manual will damage the pump, and void factory warranty.

installation and start-up. It

SERVICE

The following sections give a general overview on how to service all models of BLAGDON Diaphragm Pumps. For details on individual part numbers, quantities, materials, etc., please consult the parts list supplied with the pump.

NOTE : Before commencing any service or maintenance work on the pump, ensure that the air supply has been disconnected or isolated.

AIR VALVE SYSTEMS

PNEUMATIC TYPE Remove the 4

screws securing the valve block to the valve chest, together with any associated gaskets or seals.

Remove slide valve plate & slide valve from the valve block assembly. Clean all parts thoroughly and inspect for excessive wear, replacing where necessary.

The slide valve and valve plate contact faces should be flat and free from scratches. A light polishing on a flat surface with a fine abrasive paper will remove most scratches.

If excessive wear is suspected in the valve block bore or valve carrier, remove the valve block plugs and withdraw the valve carrier. Check valve block plug o-rings for wear or attack & replace where required.

Clean the valve carrier & valve block bore with white spirits to remove any oil films.

NOTE : The nominal diametrical clearance between the valve carrier and the valve block bore should be 0.05 - 0.09mm. A clearance in excess of this will cause the valve system to run erratically.

Apply a light grease to the valve block plug O-rings when reassembling into the valve block bore. Any damage to the O-ring may cause

the valve system to malfunction.

Re-assemble the valve block assembly & re-torque in accordance to the settings shown in the parts list.

In the event of a complete air-side overhaul, the pump should be disassembled down to the centre section assembly as described later in the “Wet-Side Overhaul” section.

With the valve block assembly dismantled, remove the inner covers where appropriate.

A careful note of the position of all related seals and gaskets should be made to facilitate re-assembly.

Remove diaphragm shaft bushes, where appropriate, and check all seals and ‘O’ rings for wear or damage. If worn, replace immediately.

NOTE:- The integrity of the diaphragm shaft seals is essential for the correct functioning of all pneumatically actuated valve systems.

Check the diaphragm shaft for excessive wear as this will result in premature seal failure. Replace as required. Lubricate all components and re-assemble as detailed above, in reverse order. Ensure the correct position of all components detailed in all sectional assembly drawings.

WET-SIDE OVERHAUL

REPLACING BALL VALVES

Remove discharge manifold from pump assembly together with associated valve balls, seats and ‘O’ rings.

NOTE :- The orientation of the valve seat relative to the valve ball should be noted as incorrect positioning may result in a performance loss.

Turn pump through 180 the suction manifold. Clean and inspect the components. Check for any wear or damage and replace as required.

NOTE :- Ball or valve seat wear may result in loss of performance and suction lift.

Re-assemble the valve balls/seats and ensure manifolds are adequately torqued to the settings shown in the parts list.

and remove

REPLACING DIAPHRAGMS Remove both suction and discharge manifolds as detailed in the previous section, removing all ball valves, seats and ‘O’ rings. Loosen and remove both outer covers from the pump assembly. The orientation of the covers should be noted so as to facilitate reassembly. Holding one of the frontplates in a vice, (‘soft jaws’ should be fitted), or with an adjustable spanner, loosen and remove the frontplate from the opposite end. Remove the diaphragm, backplate and bumpstop from diaphragm shaft.

Carefully withdraw the diaphragm shaft from the centre section and hold the free end in a vice, holding between the flats machined on the end. Loosen and remove the frontplate and remove the diaphragm together with backplate and bumpstop (where fitted).

NOTE :- Care should be taken with all plastic, coated and hygienic pumps, so that the surface of the frontplate is not damaged.

Thoroughly clean all parts and check for wear, damage, swelling, cracking, delamination and chemical attack. Replace components where required.

NOTE :- Rubber diaphragms should be replaced if they are worn to such an extent that the fabric re-enforcing is evident on the surface of the diaphragm.

For pumps fitted with PTFE diaphragms, a light coating of grease should be applied to the back-up diaphragm prior to re-assembly. Before re-assembly, it is advisable to check the condition of the diaphragm shaft seal/’O’ rings for wear or attack. If either is evident, it is recommended that they be replaced. Assemble the diaphragms onto the shaft in a reverse sequence to their removal. Care should be taken as to the orientation of the diaphragm relative to the front and back plates. All diaphragms have “AIR SIDE” moulded onto one side. The backplate must be fitted adjacent to the AIR SIDE of the diaphragm.

HG-CF-1185 Rev. C - 02.03.11

Page 8

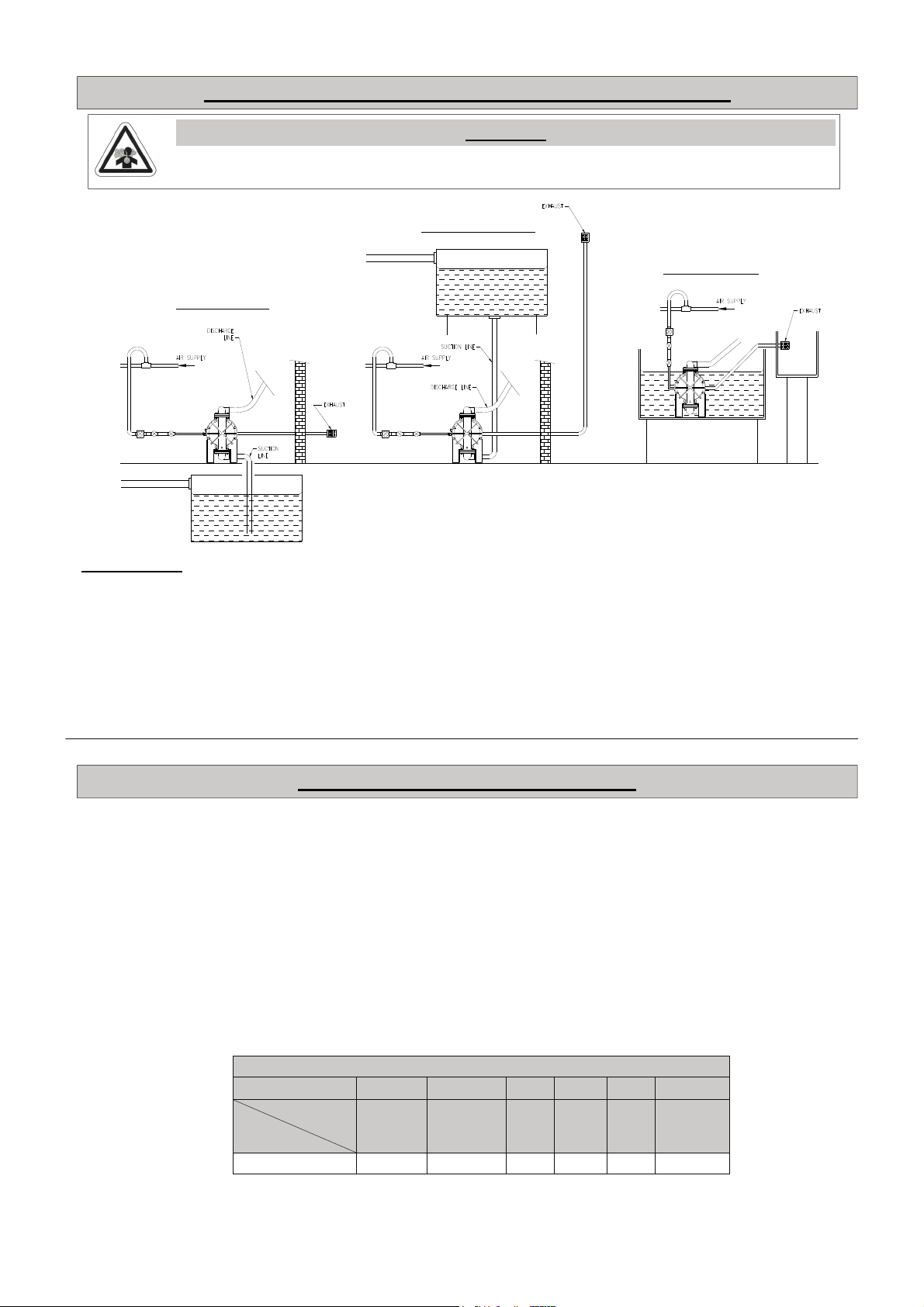

EXHAUST SAFETY WHEN PUMPING HAZARDOUS LIQUIDS

WARNING!

In the event of diaphragm rupture, pumped material may enter the air end of the pump, and be discharged into the atmosphere. If pumping a product which is hazardous or toxic, the air exhaust must be piped to an appropriate area for safe disposition.

Flooded Suction Installation

Suction Lift Installation

Submerged Installation

Exhaust Safety :-

When a diaphragm fails during operation, pumped liquid can enter and contaminate the air side of the pump. If diaphragm failure is not severe, i.e. a small split or hole, then the pump can continue to run, with air being forced into the product being pumped. If however the failure is more serious, then the pump may stop, with fluid or fumes being expelled through the exhaust. Under these conditions it is recommended that the exhaust is piped away to a safe area. In standard suction lift conditions this can simply be done by piping from the exhaust connection to a safe area. Multiple installations can be piped to a common connection, then to a safe area. In flooded suction conditions the exhaust must be taken to a point higher than the fluid level to prevent any siphoning away. In submerged conditions ensure exhaust is piped away above fluid level. In all conditions ensure exhaust outlet is not expelling across a non-conductive surface. The exhaust must not be placed less than 100mm from any non-conductive surface, as this may generate a propagating brush discharge resulting in a possible ignition source.

HIGH TEMPERATURE INSTRUCTIONS

In situations where the temperature of the fluid to be pumped is likely to exceed 100°C, a high temperature pump code must be specified. This is signified using an ‘X’ in the last part of the pump code as shown.

“XTS” in place of “TTS”.

This indicates the following specification amendments :All seals and o-rings will be changed from Buna-N to Viton and back-up diaphragms and any bump-stops will be changed to Viton. See table below for parts effected :- (refer to main table for quantities / pump)

HG-CF-1185 Rev. C - 02.03.11

HIGH TEMPERATURE SPECIFICATION

REF. NO 14 16 17 13 22

DESCRIPTION DIA. SHAFT

MATERIAL

VITON G536 G508 G533 G509 40-091

SEAL

DIAPHRAGM

SHAFT BUSH

40-194

O-RING O-RING O-RING SUPPORT

DIAPHRAGM

Page 9







QTY

ST.

STEEL

1B109

40-112

PTFE

ONE-PIECE

ELASTOMER TABLE

ATEX

CAT. 2

PART NUMBER DESCRIPTION QTY

/ COMMON

SUCTION MANIFOLD - NPT

SUCTION MANIFOLD - BSP

40-235

DESCRIPTION PTFE QTY

LUBE FREE COMPONENTS

ALUMINIUM

No.

REF

PARTS LIST - cont.

ATEX

CAT. 2

36 B507 FLANGED NUT - SERRATED M10

37 40-229

38 A063 BOLT M10 x 40

40 - SA10502 GROUNDING LEAD ASSY.

41 - SP467 ATEX I/D TAG

35 40-204 GASKET

34 40-005 VALVE PLAT E





DISCHARGE MANIFOLD - NPT

DISCHARGE MANIFOLD - BSP

42 - SP474 TIE-LOK TIE





O-RING - (TO SUIT METALLIC SEATS ONLY)

REF DESCRIPTION BUNA-N EPDM VITON NEOPRENE PTFE QTY





21 DIAPHRAGM 40-037 40-110 40-091 40-122 SEE 21 & 22 2



4 VALVE BALL 1B010 1B052 1B055 1B056 1B053 4



4 VALVE BALL - WEIGHTED 1B079 1B080 1B088 1B027 - 4

6 VALVE SEAT 40-014 40-041 40-040 40-042 - 4

5 O-RING G411 G413 G414 G412 G410 4

7 O-RING G438 G440 G441 G439 G442 4

REF DESCRIPTION POLYESTER POLYURETHANE SANTOPRENE







4 VALVE BALL - - - - 4

6 VALVE SEAT 40-056 40-057 - - 4

21 DIAPHRAGM 40-018 40-019 40-223 40-203 2







14 LUBE FREE SEAL 25-072 6

15 DIA. SHAFT BUSH 40-194 2

No.

REF





 - These items are available in a recommended spares kit. Please refer to your local stockist / distributor for details.  - These items are available in a recommended spares kit - ASK4005 - Airside Kit. Lube free Air side kit :- ASK4005-LF  - These items are available as Sub-Assy spare :- SA10585 Santoprene is a registered trade name of Monsanto Corp.





M5 x 14



PART NUMBER DESCRIPTION QTY

/ COMMON

PARTS LIST

ALUMINIUM

No.

REF

HG-CF-1185 Rev. C - 02.03.11

1 A108 BOLT-HEXAGONAL HEAD M8 x 25

40-236

2 C013 WASHER - PLAIN

3 40-230

4 SEE TABLE VALVE BALL

5 SEE TABLE O-RING - (TO SUIT METALLIC SEATS ONLY)

6 40-131 VALVE SEAT - (METALLIC OPTION)

6 SEE TABLE VALVE SEAT - (ELASTOMERIC OPTIONS)

7 SEE TABLE

8 40-047 40-240 SILENCER

9 40-259 VALVE CHEST

10 G242 O-RING

11 G243 O-RING

12 G339 O-RING O-RING

13 G367 O-RING

14 25-091 SHAFT SEAL (SEE TABLE FOR LUBE FREE OPTION)

15 25-089 DIA. SHAFT BUSH (SEE TABLE FOR LUBE FREE OPTION)

16 G189 O-RING

17 G245 O-RING

18 40-199 INNER COVER

19 40-228 OUTER COVER

20 40-012 FRONTPLATE ASSEMBLY

21 40-020 DIAPHRAGM - PTFE

22 40-037 DIAPHRAGM - SUPPORT

23 1A007 BACKPLATE

24 40-111 BUMP STOP

25 25-060 DIAPHRAGM SHAFT

26 D337 SKT CAP SCREW M8 x 40

27 C165 SPRING WASHER M8

28 40-266 VALVE BLOCK PLUG

29 D391 SOCKET CAP SCREW

30 G512 O-RING

31 40-192 VALVE CARRIER

32 40-264 VALVE BLOCK

33 40-004 SLIDE VALVE

Page 10

TORQUE SETTINGS

A - 20 - 25 Nm (14.8 - 18.4 lbs/ft

B - 13.5 - 16 Nm (10 - 12 lbs/ft)

E - 14 - 15 Nm (10.3 - 13 lbs/ft)

C - 27 Nm (20 lbs/ft)

D - 42 - 47 Nm (30 - 35 lbs/ft)

Inner Seals -

Lip faces in over,

towards holes

Sectional General Assembly :- B4005AA model pump, refer to page 10 Parts List table for Item Ref. Nos.

Lip Seal Positions

HG-CF-1185 Rev. C - 02.03.11

Outer Seal -

Lip faces out over

Page 11

HG-CF-1185 Rev. C - 02.03.11

Date : December 01 2009

Des Monaghan, Production & Technical Manager

HG-CF-223 (REV 6)

Page 12

Blagdon Pump X40 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
