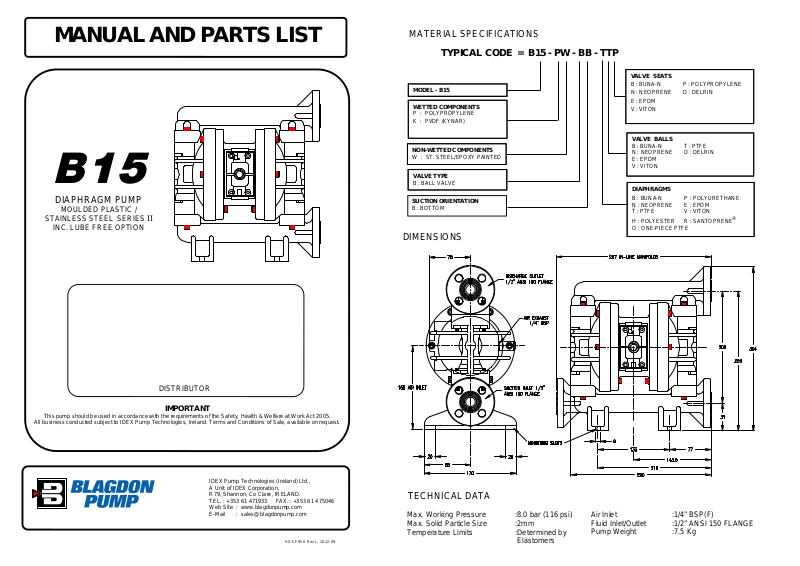

Blagdon Pump B15 User Manual
MANUAL AND P ARTS LIST
B15
DIAPHRAGM PUMP
MOULDED PLASTIC /
STAINLESS STEEL SERIES II
INC. LUBE FREE OPTION
MATERIAL SPECIFICATIONS
TYPICAL CODE = B15 - PW - BB - TTP
MODEL - B15
WETTED COMPONENTS
P : POLYPROPYLENE
K : PVDF (KYNAR)
NON-WETTED COMPONENTS
W : ST. STEEL/EPOXY PAI NTED
VALVE TYPE
B : BALL VALVE
SUCTION ORIENTATION
B : BOTTOM
DIMENSIONS
VALVE SEATS
B : BUNA-N P : POLYPROPYLENE
N : NEOPRENE D : DELRIN
E : EPDM
V : VITON
VALVE BALLS
B : BUNA-N T : PTFE
N : NEOPRENE D : DELRIN
E : EPDM
V : VITON
DIAPHRAGMS
B : BUNA-N P : POLYURETHANE
N : NEOPRENE E : EPDM
T : PTFE V : VITON
H : POLYESTER R : SANTOPRENE
O : ONE-PIECE PTFE
®
DISTRIBUTOR
This pump should be used in accordance with the requirements of the Safety, Health & Welfare at Work Act 2005.
All business conducted subject to IDEX Pump Technologies, Ireland. Terms and Conditions of Sale, available on request.
IMPORTANT
IDEX Pump Technologies (Ireland) Ltd.,
A Unit of IDEX Corporation,
R79, Shannon, Co Clare, IRELAND.
TEL. : +353 61 471933 FAX. : +353 61 475046
Web Site : www.blagdonpump.com
E-Mail : sales@blagdonpump.com
HG-CF-958 Rev L, 10.12.09
TECHNICAL DATA
Max. Working Pressure :8.0 bar (116 psi)
Max. Solid Particle Size :2mm
Temperature Limits :Determined by
Elastomers
Air Inlet :1/4” BSP(F)
Fluid Inlet/Outlet :1/2” ANSI 150 FLANGE
Pump Weight :7.5 Kg

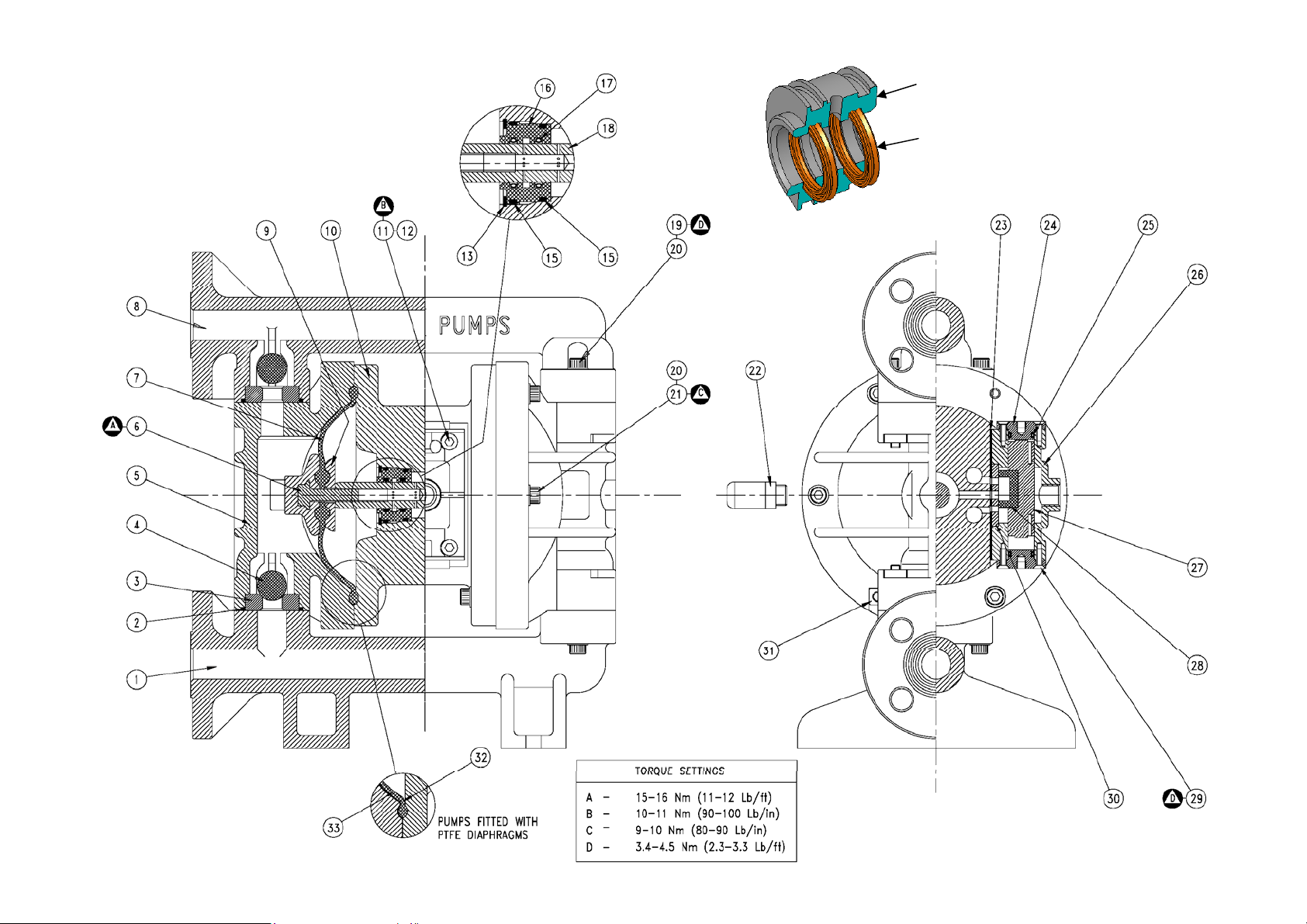

PARTS LIST
PARTS LIST - cont.
REF
PART NUM-
No.
1 SEE TABLE SUCTION MANIFOLD
2 SEE TABLE O-RING (VALVE SEAT)
3 SEE TABLE VALVE SEAT
4 SEE TABLE VALVE BALL
5 SEE TABLE OUTER COVER
6 SEE TABLE FRONTPLATE ASSEMBLY
7 SEE TABLE DIAPHRAGM
8 SEE TABLE DISCHARGE MANIFOLD
9 1H114 BACKPLATE
10 15-200 CENTRE SECTION
11 D250 SOCKET CAP SCREW M6 x 12
12 C174 WASHER M6
13 H125 CIRCLIP
14 -
15 G189 O-RING
16 15-182 DIAPHRAGM SHAFT BUSH 2
17 15-295
18 SA10036 DIAPHRAGM SHAFT ASSEMBLY
19 D053 SOCKET CAP SCREW M6 x 45
20 C007 WASHER M6
21 D266 SOCKET CAP SCREW M6 x 35
22 06-034 SILENCER
23 1H020 CENTRE SECTION GASKET
24 15-202 VALVE BLOCK PLUG
25 G020 O-RING ( V.B. PLUG)
26 15-201 VALVE BLOCK
27 1H009 VALVE CARRIER
28 1A025 SLIDE VALVE
29 D209 COUNTERSUNK SCREW M4 x 12
30 15-001 SLIDE VALVE PLATE
31 B272 SQUARE NUT M6
32 15-219 BACK-UP DIAPHRAGM
33 15-033 PTFE DIAPHRAGM
BER
DIA. SHAFT SEAL (SEE TABLE FOR LUBE FREE OPTION)
DESCRIPTION QTY
2
20
12
12
ELASTOMER TABLE
REF. No. 2 3 4 7
1
4
4
4
2
2
2
1
2
1
4
4
4
4
1
8
1
1
2
2
1
1
1
4
1
2
2
DESCRIPTION O-RING VALVE SEAT VALVE BALL DIAPHRAGM
MATERIAL
BUNA-N G251 15-002 15-017 1H011
NEOPRENE G437 15-003 15-014 1H049
EPDM G394 15-004 15-015 1H206
VITON G395 15-005 15-016 1H051
PTFE G429 - 1H017 REF. 32 & 33
ONE-PIECE PTFE - - - 15-195
POLYESTER - - - 1H022
POLYURATHANE - - - 1H050
POLYPROPYLENE - 15-025 - DELRIN - 15-054 1H072 -
SANTOPRENE®
- - - 15-219
WETTED COMPONENTS
REF
No.
DESCRIPTION POLYPROPYLENE PVDF
1 SUCTION MANIFOLD 15-024 15-059 15-063 15-075 1
5 OUTER COVER 15-022 15-061 2
6 FRONTPLATE 15-021 15-062 2
8 DISCHARGE MANIFOLD 15-023 15-058 15-064 15-076 1
1/2” BSP(T) THREADED OPTIONS
LUBE FREE COMPONENTS
REF
No.
17 O-RING (CENTRE SECTION) 15-018 4
- These items are available in a recommended spares kit. Please refer to your local stockist / distributor
for details.
- These items are available in a recommended spares kit - ASK15SS - Air side Kit.
Lube Free Air Side Kit - ASK15SS-LF
- These items are supplied as Sub-Assy. SA10435
NOTE! When using rubber valve seats (3), item 2 o-ring is not required.
Santoprene is a registered tradename of Monsanto Corp.
DESCRIPTION PTFE QTY
QTY
NOTES
